Railway Wheelset Bearings: What Buyers Should Know

Railway wheelset bearings are important components in the running gear of trains, freight wagons, passenger vehicles, locomotives, and other rail vehicles.

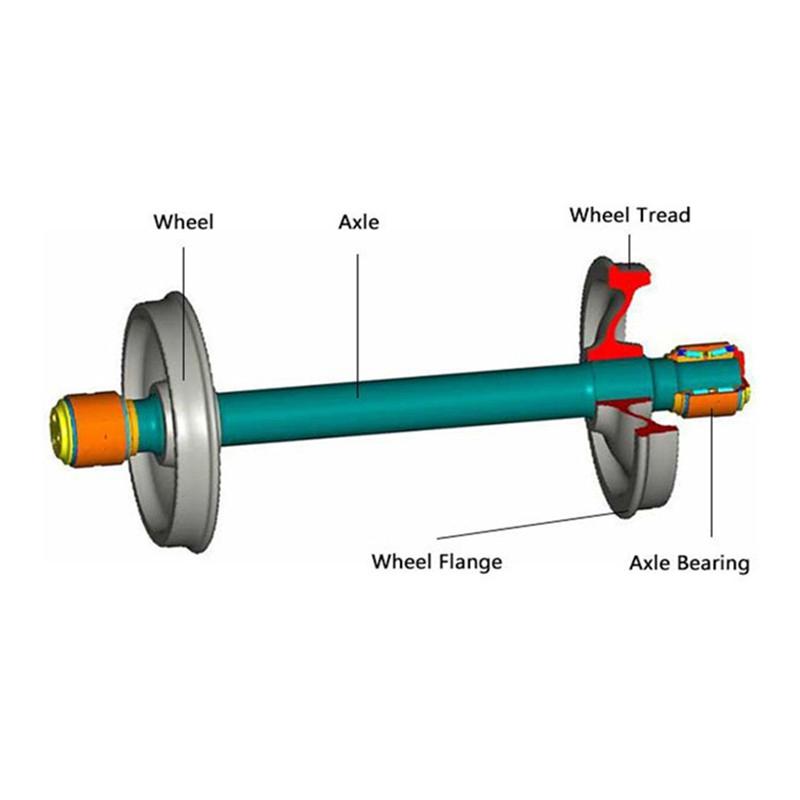

A wheelset typically consists of an axle and wheels, while bearings allow the wheelset to rotate within the vehicle's running gear.

Because wheelset bearings operate under significant loads, vibration, impact, and changing environmental conditions, their selection requires careful consideration of the complete application.

What Is a Railway Wheelset Bearing?

A railway wheelset bearing is a bearing used to support and enable rotation of a railway wheelset.

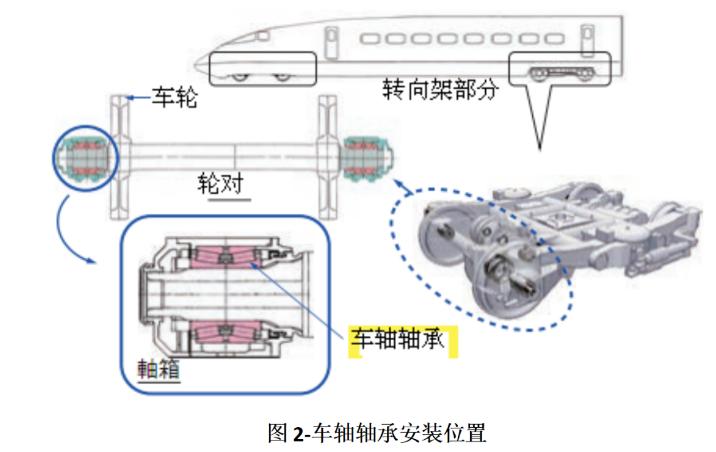

The bearing is commonly installed around the axle and works together with the axle box, housing, seals, lubrication system, and other components.

Depending on the vehicle design, different bearing arrangements can be used.

Common bearing types for railway applications include:

• Tapered roller bearings

• Cylindrical roller bearings

• Spherical roller bearings

• Specialized railway bearing units

The actual bearing configuration depends on the vehicle and application requirements.

Where Are Wheelset Bearings Used?

Railway wheelset bearings can be found in many types of rail vehicles, including:

• Passenger trains

• Freight wagons

• Locomotives

• Metro and urban rail vehicles

• Railway maintenance vehicles

• Other railway equipment

Different vehicles can have significantly different loads, speeds, operating environments, and maintenance requirements.

Therefore, a wheelset bearing designed for one railway application should not automatically be treated as suitable for another application.

Why Are Wheelset Bearings Important?

The wheelset is directly connected to the vehicle's interaction with the railway track.

The bearing must support the required loads while allowing controlled rotation between the axle and surrounding components.

Poor bearing selection or incorrect installation can contribute to:

• Excessive temperature

• Abnormal vibration

• Lubrication problems

• Premature wear

• Raceway damage

• Rolling element damage

• Unexpected maintenance

For this reason, wheelset bearing selection should consider the complete operating environment rather than dimensions alone.

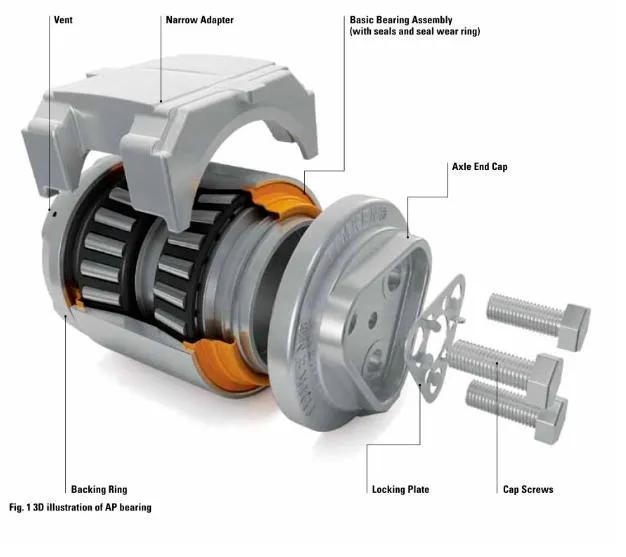

Tapered Roller Bearings for Wheelsets

Tapered roller bearings are widely used in railway wheelset applications.

Their design allows them to handle combined radial and axial loads, making them suitable for applications where the bearing is exposed to different loading conditions.

For railway applications, the complete bearing specification should be evaluated, including:

• Bearing dimensions

• Load capacity

• Internal clearance

• Sealing

• Lubrication

• Mounting arrangement

• Operating speed

• Temperature

A tapered roller bearing with similar dimensions is not necessarily a suitable replacement for a railway wheelset bearing.

Cylindrical Roller Bearings for Wheelsets

Cylindrical roller bearings are also used in various railway applications.

They are particularly suitable where high radial load capacity is required.

Depending on the design, cylindrical roller bearings can also accommodate certain axial displacement requirements.

The appropriate bearing configuration should be selected according to the axle and wheelset design.

How to Select Railway Wheelset Bearings

For buyers sourcing railway wheelset bearings, several factors should be checked before placing an order.

1. Original Bearing Number

The original bearing number is usually the best starting point.

It helps identify the basic design, dimensions, clearance, and other specifications.

2. Wheelset and Axle Design

The bearing must match the actual axle and wheelset configuration.

Provide an axle drawing or bearing installation drawing whenever possible.

3. Load and Speed

Radial load, axial load, shock load, operating speed, and duty cycle all influence bearing selection.

4. Internal Clearance

Internal clearance should be evaluated together with the bearing fit, operating temperature, and application conditions.

An unsuitable clearance can affect bearing temperature, vibration, and operating performance.

5. Lubrication and Sealing

Railway wheelsets can operate in environments containing dust, water, and other contaminants.

The correct sealing and lubrication arrangement is therefore important for reliable operation.

6. Technical Standards

Railway applications may have specific technical standards, inspection requirements, traceability requirements, and customer approvals.

These requirements can vary according to the country, railway operator, vehicle type, and application.

Always confirm the required standards before sourcing a railway wheelset bearing.

Railway Wheelset Bearing Replacement

When replacing a wheelset bearing, avoid selecting a product based only on the bearing's outside dimensions.

The original part number, bearing type, dimensions, internal clearance, sealing arrangement, application, and technical requirements should all be checked.

If the original bearing failed earlier than expected, the reason for failure should also be investigated.

Checking the shaft, housing, fit, lubrication, seals, and installation condition can help prevent the same problem from occurring with the replacement bearing.

Finding a Wheelset Bearing Supplier

A reliable sourcing process starts with complete technical information.

For a railway wheelset bearing inquiry, buyers can provide:

Bearing number + drawing + dimensions + application + quantity + operating conditions + required standards

This information allows the supplier to evaluate the requirement more accurately and avoid unnecessary substitutions.

Railway Bearing Supply from DBS Bearing

DBS Bearing provides bearing sourcing and manufacturing solutions for industrial and automotive applications.

For railway-related inquiries, customers can send the original bearing number, drawing, photos, dimensions, application, and required quantity for evaluation.

For safety-critical railway applications, applicable standards, certification, testing, and customer approval requirements should be confirmed before supply.

The right wheelset bearing starts with the right technical information.
