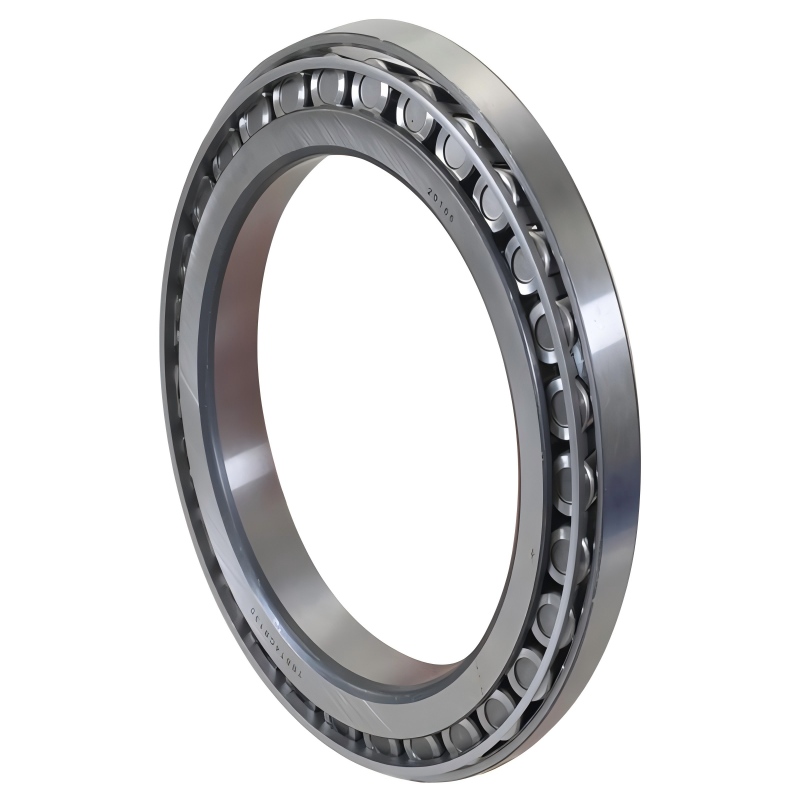

JP13049/10 Tapered Roller Bearing

JP13049/10 is a single-row tapered roller bearing designed for industrial machinery, transmissions and heavy-duty rotating equipment. Its verified basic dimensions are 130 mm bore, 185 mm outside diameter and 29 mm width.

The bearing is associated with the T4CB130 designation. Its tapered raceway and roller arrangement are designed to support combined radial and axial loads. The separable construction also allows the cone and cup to be handled separately during installation and maintenance.

Key Features

Single-row tapered roller configuration
130 mm bore diameter
185 mm outside diameter
29 mm overall width
Suitable for industrial transmission systems
Bulk and OEM supply options

Technical Specifications

Product Type	Single Row Tapered Roller Bearing
Bearing Designation	JP13049/10
Related Designation	T4CB130
Bore Diameter (d)	130 mm
Outside Diameter (D)	185 mm
Width (T)	29 mm
Reference Weight	Approx. 2.17 kg*

*Bearing weight may vary between manufacturers and production configurations.

Applications

Typical applications include industrial gearboxes, transmissions, reduction systems, heavy machinery, mechanical drive units and other rotating equipment.

Related Models

Model	d	D	T	Series
JP13049/10	130	185	29	T4CB130
T4CB130	130	185	29	JP13049/10
T4CB120	120	170	27	T4CB Series
T4CB140	140	195	29	T4CB Series

Service & OEM Support

DBS Bearing supports wholesale orders, OEM production, private label packaging, laser marking and customized bearing supply programs. Technical confirmation can be provided before production.
