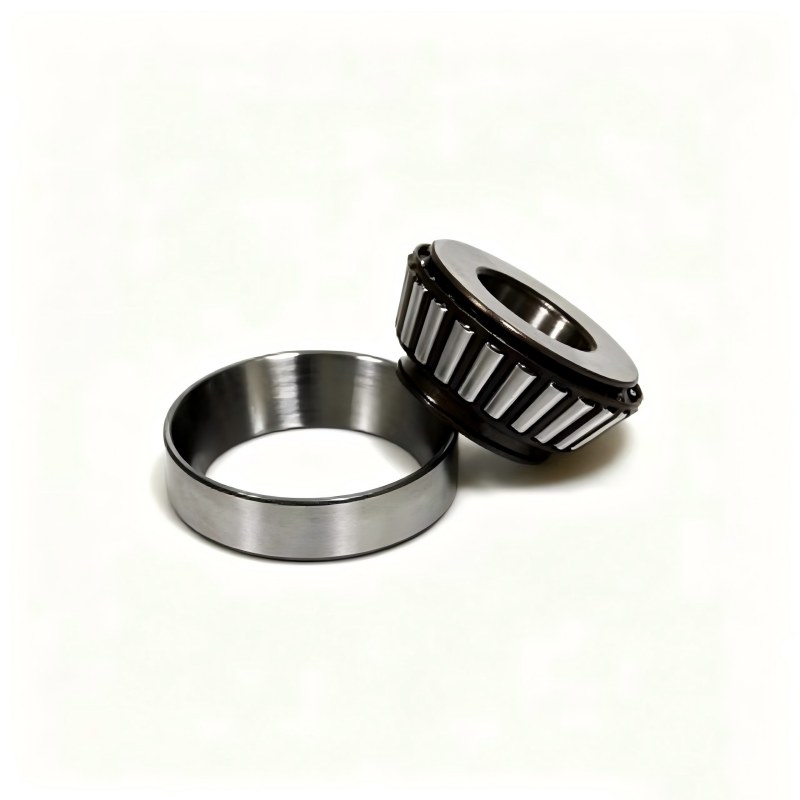

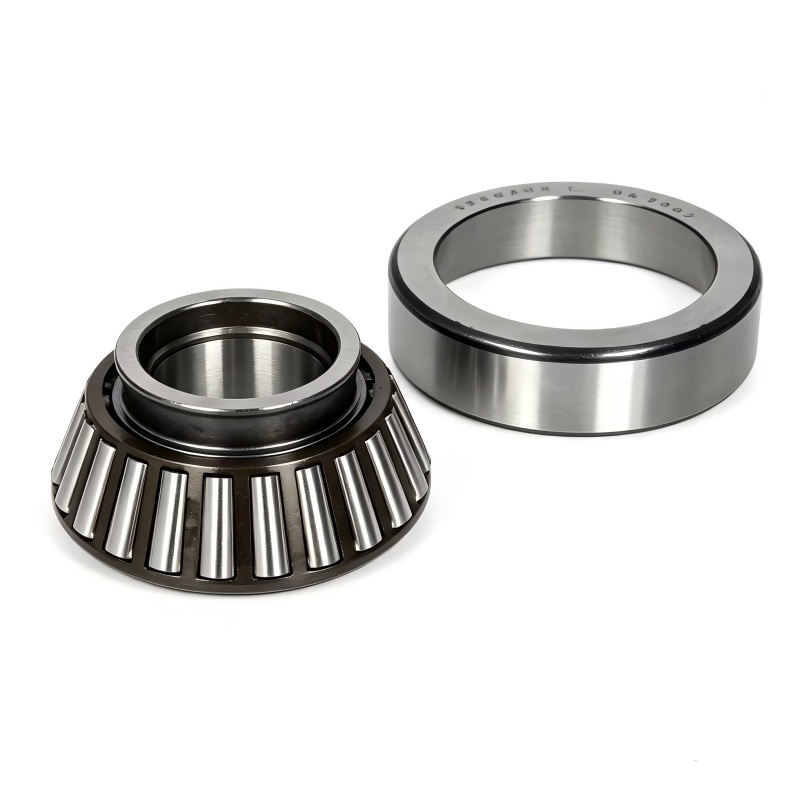

F15117 Tapered Roller Bearing
Product Overview
The F15117 is offered as a tapered roller bearing for equipment requiring support under combined radial and axial loading. The supplied dimensional specification is 40 mm bore, 90 mm outside diameter and 39 mm overall width. Selection should be confirmed against the original drawing and operating requirements.
Key Features
Tapered roller geometry suited to combined radial and axial loading.
Bearing fit, preload/endplay and lubrication depend on the installation.
Nominal bore: 40 mm; outside diameter: 90 mm.
Overall width/height: 39 mm; reference mass: 1.01 kg.
OEM marking, packaging and export supply options.
Technical Specifications
| Designation | F15117 |
|---|---|
| Product Category | Tapered Roller Bearing |
| Bore Diameter (d) | 40 mm |
| Outside Diameter (D) | 90 mm |
| Overall Width / Height | 39 mm |
| Reference Weight | 1.01 kg |
| Load Ratings / Speed Limits | Confirm by technical drawing or approved datasheet |
Applications
Industrial transmissions, gearboxes, rotating machinery, heavy equipment and replacement projects where the original design calls for this bearing specification. Application suitability must be checked rather than inferred from the part number alone.
Bearing Design
Tapered rollers and tapered raceways provide a load path for radial forces and axial forces in the supported direction. The exact assembly arrangement, cup/cone geometry, cage type and clearance or preload requirements must be verified before installation.
Related Models
These designations are grouped together in the supplied product list with matching nominal dimensions and mass. Physical interchangeability requires confirmation of drawings, internal design and tolerances.
| Model | Bore (mm) | OD (mm) | Width (mm) |
|---|---|---|---|
| F15117 | 40 | 90 | 39 |
| BT1-0097C | 40 | 90 | 39 |
| 3173772 | 40 | 90 | 39 |
Service & OEM Support
DBS Bearing supports bearing assembly and sourcing, dimensional inspection, OEM/private-label marking, neutral or branded packaging, and export order coordination. Drawing-based evaluation and application-specific checks can be discussed before order confirmation. Inspection documentation and any special test requirements should be agreed in advance.
FAQ
What are the dimensions of F15117?
The supplied nominal dimensions are 40 × 90 × 39 mm (bore × outside diameter × overall width/height).
How much does F15117 weigh?
The supplied reference weight is approximately 1.01 kg; actual shipping weight may vary with packaging and configuration.
Can F15117 be replaced by a related designation?
Matching dimensions or a shared product group alone do not prove interchangeability. Please confirm the drawing, tolerances, internal design and application.
Can DBS Bearing provide OEM marking and packaging?
Yes. Customized marking, neutral boxes, customer-brand packaging and export packing can be discussed for the order.
What information is needed for a quotation?
Please provide the required quantity, delivery destination, drawing or original part number, and any inspection or packaging requirements.
Request a Quote
Contact DBS Bearing with your quantity and technical requirements for F15117 pricing, lead time, packaging options and drawing confirmation. Website: www.dbsbearing.com.
