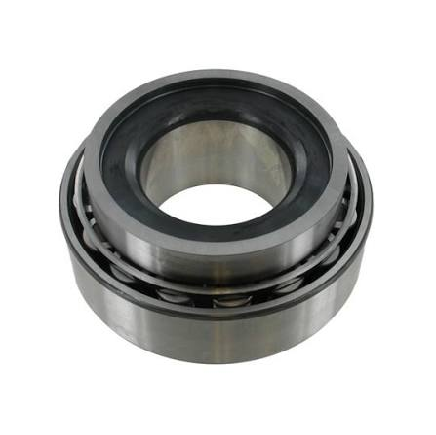

BT1-0084 Tapered Roller Bearing
BT1-0084 is a tapered roller bearing measuring 70 mm bore, 150 mm outside diameter and 64 mm overall height. Its tapered roller design is suitable for applications where radial and axial loads must be supported in a controlled rotating assembly.
Key Features
70 mm bore and 150 mm outside diameter.
64 mm overall height.
Tapered roller construction.
Designed for combined radial and axial load support.
Suitable for replacement and OEM applications.
Technical Specifications
| Item | Specification |
|---|---|
| Bearing Designation | BT1-0084 |
| Bearing Type | Tapered Roller Bearing |
| Bore | 70 mm |
| Outside Diameter | 150 mm |
| Overall Height | 64 mm |
| Reference Weight | Approx. 4.85 kg |
Applications
BT1-0084 is suitable for industrial machinery, heavy mechanical equipment, transmission systems, rotating assemblies and bearing replacement applications.
Bearing Design
The tapered roller geometry allows the bearing to manage radial and axial loads. Installation accuracy, lubrication and operating conditions should be considered when selecting the bearing.
Related Models
| Model | Bore | OD | Height |
|---|---|---|---|
| BT1-0084 | 70 mm | 150 mm | 64 mm |
| 572813A | 70 mm | 150 mm | 64 mm |
| 201069 | 70 mm | 150 mm | 64 mm |
Service & OEM Support
DBS Bearing provides OEM production, private-label packaging, customized marking, quality inspection and export packing support.
FAQ
What are the dimensions of BT1-0084?
The dimensions are 70 × 150 × 64 mm.
What is the reference weight?
The supplied reference weight is approximately 4.85 kg.
Are there alternative designations?
572813A and 201069 are listed with the same dimensions in the supplied product data.
Can DBS provide OEM supply?
Yes. OEM and private-label bearing supply are available.
