90366-S0016 Tapered Roller Bearing
Product Overview
90366-S0016 is a bearing reference listed in a KOYO-branded product catalog alongside related part numbers. The source listing identifies a KOYO-branded tapered roller bearing and Toyota-related reference numbers. The designation is offered here for part-number searches and drawing-based replacement matching.
This 90366-S0016 reference belongs to a bearing identification group with multiple catalog and OE numbers. DBS Bearing helps buyers confirm dimensions, fit and supply options before ordering. The reference is not a guarantee of interchangeability: dimensions, internal geometry, seals, clearance and vehicle or equipment fit must be confirmed.
Key Features
Searchable reference designation: 90366-S0016.
Published bore: 45 mm; outside diameter: 100 mm.
Additional width details are retained exactly as shown in the source listing.
Cross-reference support for replacement and parts-distributor inquiries.
DBS Bearing can discuss OEM marking, private-label packing and export supply.
Technical Specifications
| Specification | Value |
|---|---|
| Part number | 90366-S0016 |
| Product category | Tapered Roller Bearing |
| Reference role | OE reference number |
| Bore diameter (d) | 45 mm |
| Outside diameter (D) | 100 mm |
| Width values as listed | 38 / 27.5 mm |
| Additional source detail | B dimension (source listing): 36.5 mm |
| Weight | Not provided; confirm before quotation |
| Load ratings / speed limits | Confirm against approved technical drawing |
Dimensional note: The supplier listing gives the size as 45×100×38/27.5 mm and separately states B:36.5. These width values describe different referenced measurements; do not treat them as one interchangeable overall width without a technical drawing.
Applications
This reference is relevant to Toyota-related drivetrain or axle service, vehicle repair parts sourcing, and OEM-equivalent bearing identification, subject to confirming the original assembly..
Always compare the original part number, bearing dimensions, shoulder geometry, mating components and the vehicle or machine application before ordering.
Bearing Design & Selection Notes

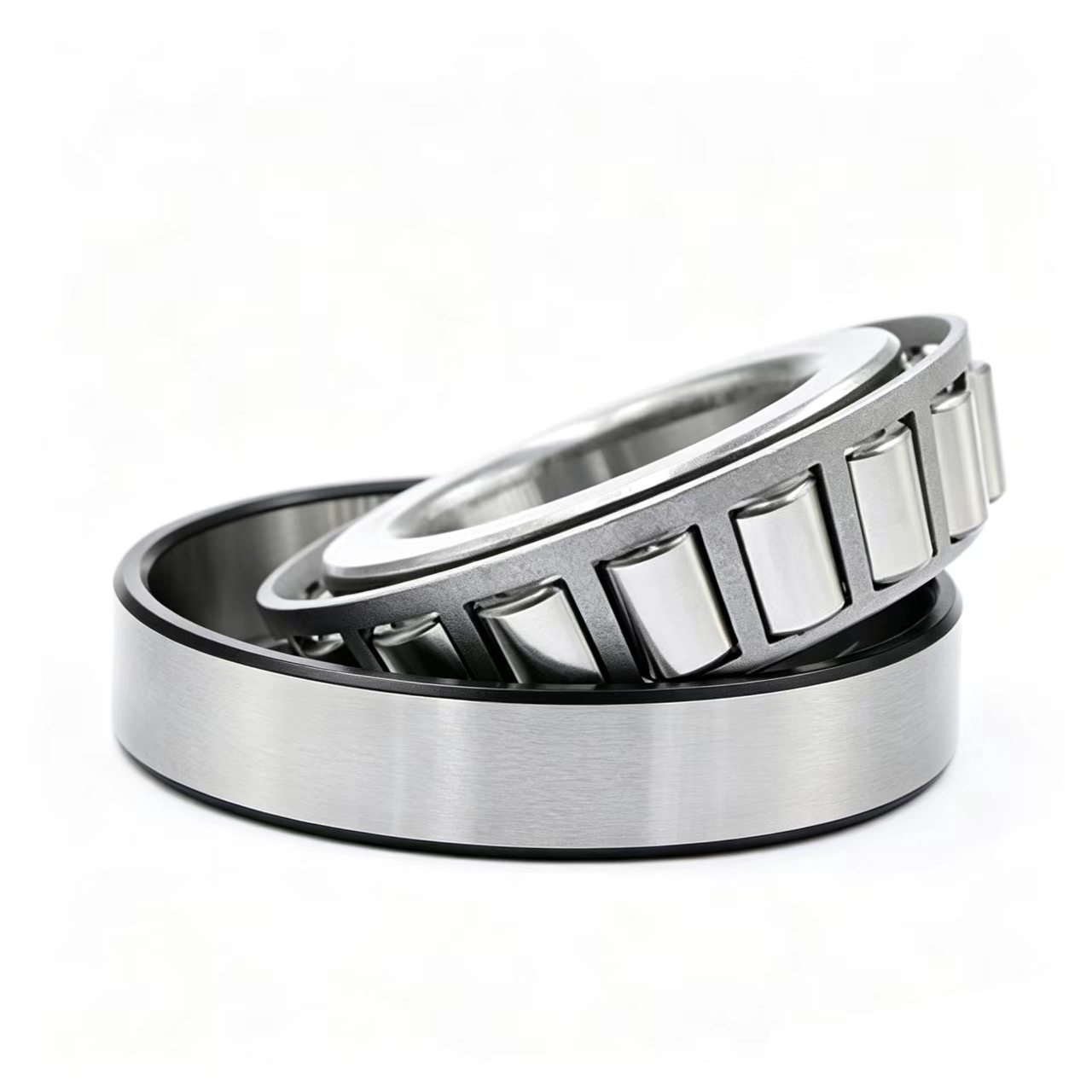

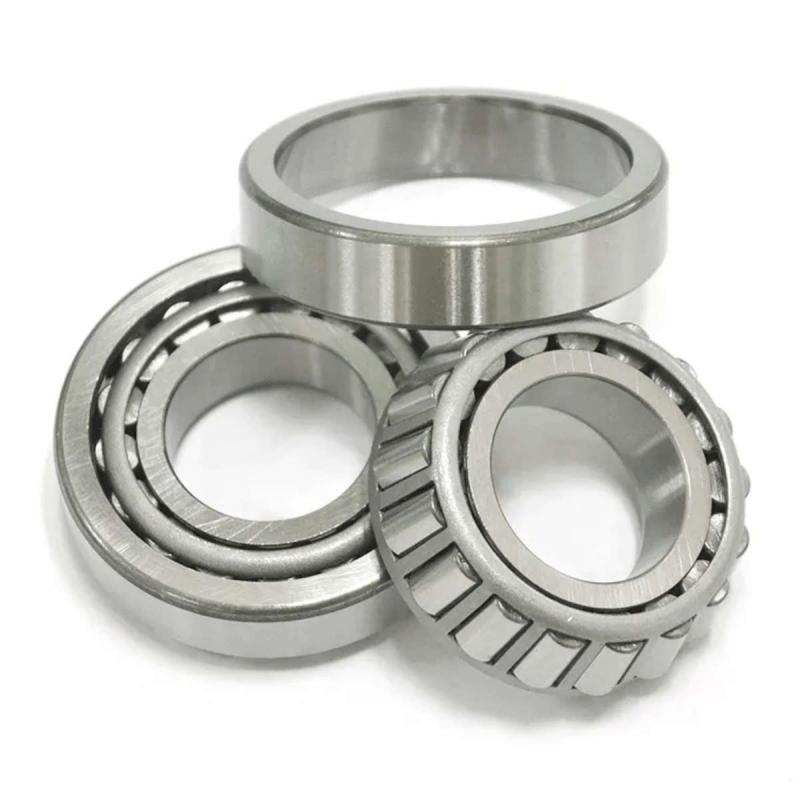

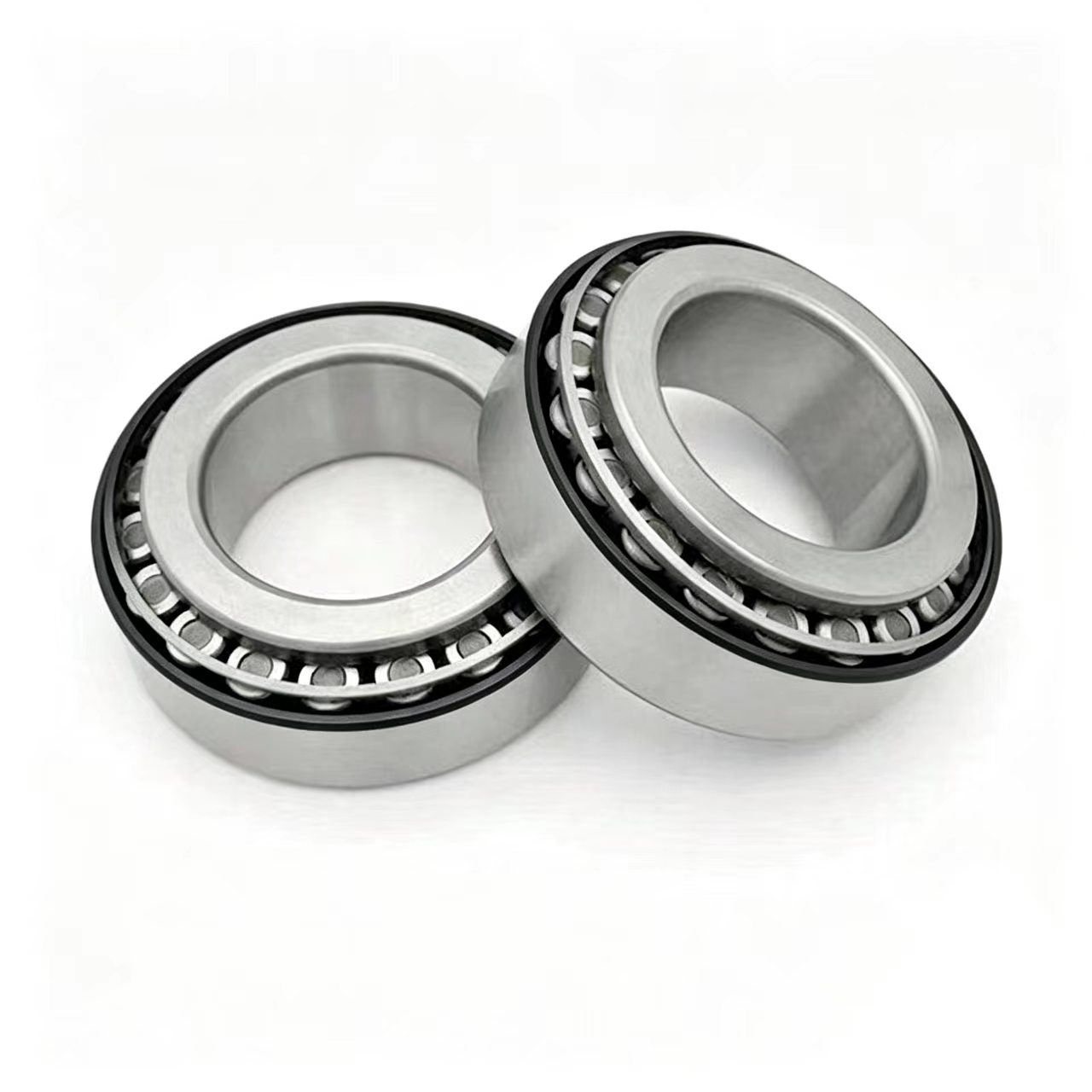

The supplied image shows a tapered roller bearing arrangement. Tapered rollers are used to accommodate combined radial and axial loading, but exact bearing setting and permissible loads depend on the complete assembly.
For a replacement inquiry, provide photographs of the bearing markings, a drawing or sample, installation position and operating requirements. Cross-reference numbers are useful starting points, not standalone evidence of full interchangeability.
Related Models & Cross-References
| Part number | Relationship | Published bore × OD |
|---|---|---|
| TRD 091004 LFT UR4 | Listed cross-reference; verify fit | 45 × 100 mm |
| TRD091004 | Listed cross-reference; verify fit | 45 × 100 mm |
| 90366-T0065 | Listed cross-reference; verify fit | 45 × 100 mm |
| 90366-S0016 | Current designation | 45 × 100 mm |
The numbers above are grouped together in the supplied supplier listing. They should be verified individually against original manufacturer specifications and application details. Each number has its own DBS Bearing product page for easier searching and internal linking.
Service & OEM Support
Part-number matching: Review the existing number, drawing or bearing sample.
OEM / private label: Discuss customized laser marking and branded or neutral packaging.
Quality checks: Dimensional inspection and available material or assembly checks according to agreed requirements.
Export service: Packing, order consolidation and shipment coordination for international distributors.
Technical communication: Written confirmation of dimensions, configuration and required quantities before production.
KOYO and Toyota are reference brands shown in the supplied listing; DBS Bearing does not claim that its own supplied products are genuine KOYO or Toyota parts.
FAQ
What are the dimensions of 90366-S0016?
The source listing gives a 45 mm bore, 100 mm outside diameter and width values of 38 / 27.5 mm. B dimension (source listing): 36.5 mm.
Are the related part numbers interchangeable?
They appear together in the provided cross-reference listing, but interchangeability must be verified using drawings, bearing features and the exact equipment application.
Can DBS Bearing supply an OEM or private-label version?
DBS Bearing can evaluate OEM supply, customer branding and customized packaging once the technical specification and order quantity are confirmed.
Can you confirm the cage, seals, clearance or load rating?
These details are not established by the supplied screenshot. Please send the original specification or drawing so the correct configuration can be reviewed.
What should I send when requesting a quotation?
Send the part number 90366-S0016, required quantity, original bearing photographs or drawing, destination country and any packaging or marking requirements.
Request a Quote
Contact DBS Bearing for 90366-S0016 pricing, dimensional confirmation, cross-reference assistance and OEM supply. Visit www.dbsbearing.com to learn more.
