Welcome to Linqing Xinshengdi Bearing Co., Ltd.

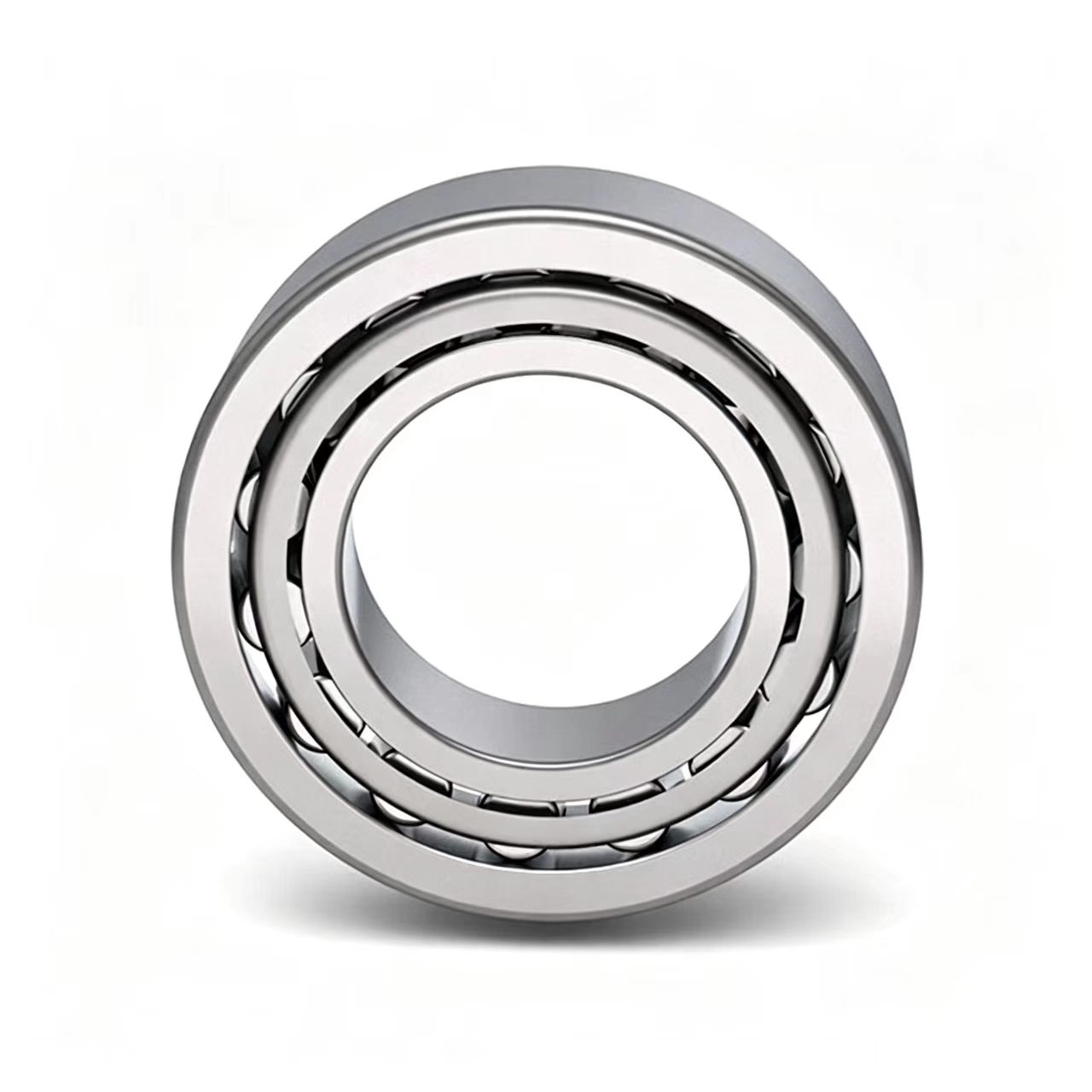

0750 117 418 Gearbox Tapered Roller Bearing 50x90x24.75mm
- Exact OE Dimensioning: Fits seamlessly into original gearbox housings without needing shimming adjustments beyond factory spec.
- Superior Load Rating: Handles heavy radial loads and gear-thrust forces smoothly without race micro-spalling.
- Thermal Resiliency: Special heat treatment maintains dimensional tolerances at high gearbox operating temperatures.
- Reduced Friction Torque: Optimizes fuel economy by lowering rotational resistance within the transmission unit.
Technical Data
| Technical Parameter | Metric Value |
| Inner Bore Diameter (d) | 50.00 mm |
| Outer Diameter (D) | 90.00 mm |
| Total Width (T) | 24.75 mm |
| Precision Standard | ISO P6 / P0 |
Product Specifications
| Specification | Details |
| Item Type | OE Spec Transmission Tapered Bearing |
| Model Number | 0750 117 418 (0750117418) |
| Cross Reference | AE54242 |
| Material | Top-Tier GCr15 Bearing Steel |
| Application | Truck Transmission Gear Shaft |
Product Introduction
The 0750 117 418 is a specialized OE-reference tapered roller bearing designed for commercial truck transmission gearboxes and drive shafts. With exact dimensions of 50 mm inner bore, 90 mm outer diameter, and 24.75 mm width, this bearing ensures precise gear clearance and rigid shaft support under continuous heavy torque. Manufactured from high-purity GCr15 bearing steel with micro-honed raceways, the 0750 117 418 minimizes heat generation and operational noise, making it an essential replacement component for B2B truck fleet maintainers and transmission repair shops globally.
Applications
Heavy commercial truck and bus transmissions (ZF compatible gearboxes).
Off-highway vehicle transaxles and planetary gear sets.
Industrial drive shafts requiring 50mm bore tapered bearings.
FAQ
Q: Does 0750 117 418 come with the outer ring (cup)?
A: Yes, it is supplied as a complete matched assembly including both the inner cone with rollers and the outer cup.
Q: Can you provide customized bulk packaging for overhaul workshops?
A: Yes, we offer both single-unit box packaging and bulk workshop trays for convenient B2B distribution.
OEM & Custom Service
B2B custom services include private label branding, laser etching of buyer reference codes, and customized VCI packaging.
Packing & Delivery
Coated with high-grade anti-rust compound, sealed in VCI plastic bags, boxed, and secured onto export-certified wooden pallets.
