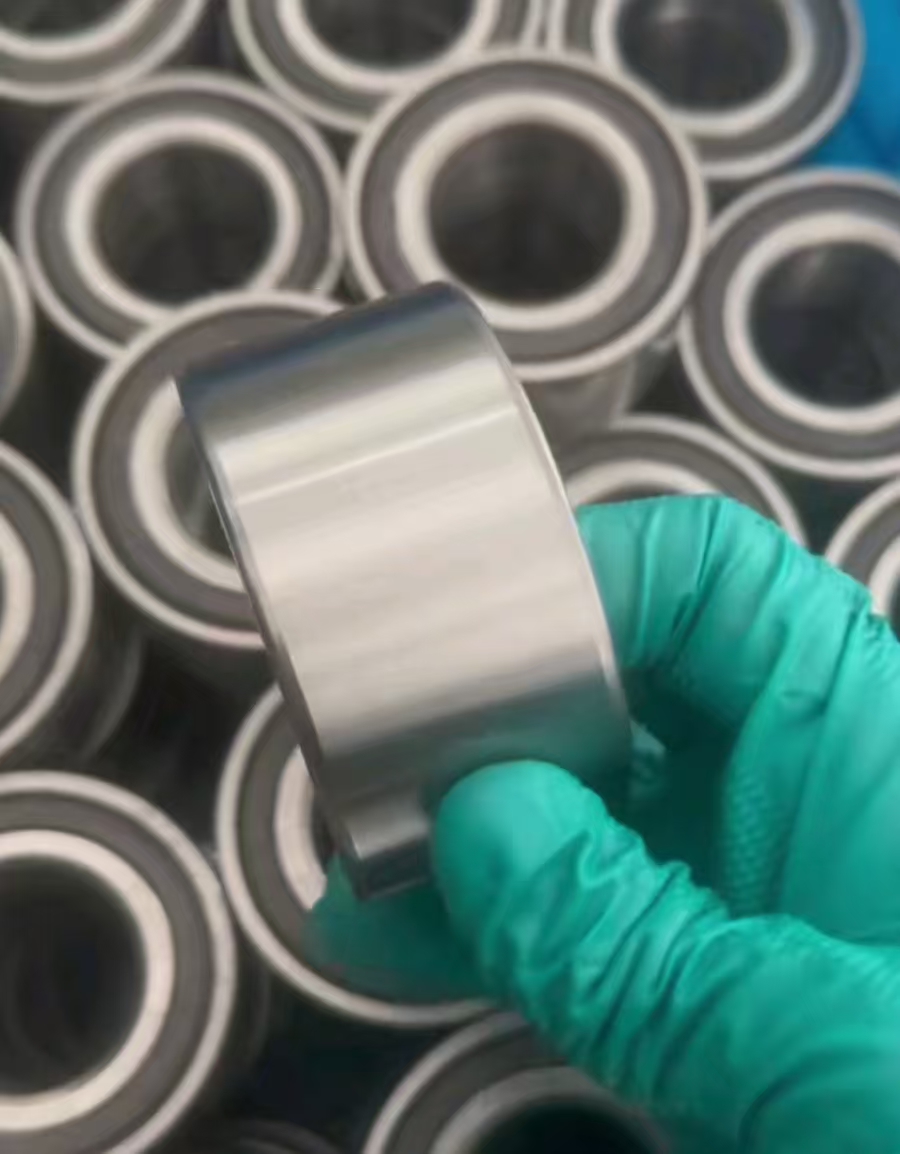

DAC387437ABS Wheel Hub Bearing with Magnetic Encoder

Integrated ABS Technology: Replaces external tone rings, providing accurate wheel speed signals directly from the bearing seal.
Precise Signal Transmission: High-quality magnetic poles ensure error-free communication with the vehicle's braking computer.
Heavy-Duty Load Handling: Double-row design supports the extreme dynamic forces of modern passenger vehicles.
Environmentally Sealed: The specialized magnetic seal acts as both a sensor and a robust barrier against road water and grit.

Technical Data

Technical Parameter	Metric Value
Inner Bore Diameter (d)	38.00 mm
Outer Diameter (D)	74.00 mm
Total Width (T)	37.00 mm
Sensor Type	Magnetic Encoder Ring (Active Sensor Compatible)

Product Specifications

Specification	Details
Item Type	ABS-Integrated Wheel Hub Bearing
Model Number	DAC387437ABS
Bearing Design	Double Row Angular Contact Ball Bearing
Material	Top-Tier GCr15 Chrome Steel
Special Feature	Integrated Multi-Pole Magnetic ABS Encoder

Product Introduction

The DAC387437ABS is an advanced double-row wheel hub bearing integrating modern automotive braking technology. Sized at 38 x 74 x 37 mm, its defining feature is the built-in magnetic ABS (Anti-lock Braking System) encoder ring located on one side of the bearing seal. This integrated multi-pole magnetic ring communicates vital wheel speed data to the vehicle's ECU, ensuring safe and responsive braking. Manufactured with high-strength GCr15 steel, this bearing is an indispensable SKU for modern vehicle maintenance, offering global distributors a high-value, tech-integrated aftermarket solution.

Applications

Modern passenger vehicles equipped with Anti-lock Braking Systems (ABS).
Front and rear wheel hubs requiring sensor-integrated bearings.
Automotive electronic stability control (ESC) systems.

FAQ

Q: How do I know which side faces the ABS sensor?
A: The side with the magnetic encoder (often dark brown or black magnetic material on the seal) MUST face inward toward the vehicle's ABS sensor. A magnetic test card can be used to identify the correct side.
Q: Can a non-ABS bearing be used instead?
A: No. Using a standard bearing without the magnetic encoder will immediately trigger an ABS fault light and disable the anti-lock braking function.

OEM & Custom Service

B2B services include rigorous magnetic flux testing before shipment, customized packaging with clear installation warnings (ABS side indicator), and full aftermarket branding.

Packing & Delivery

Carefully packaged in individual boxes with protective inserts to prevent damage to the magnetic encoder, consolidated into heavy-duty export crates.
