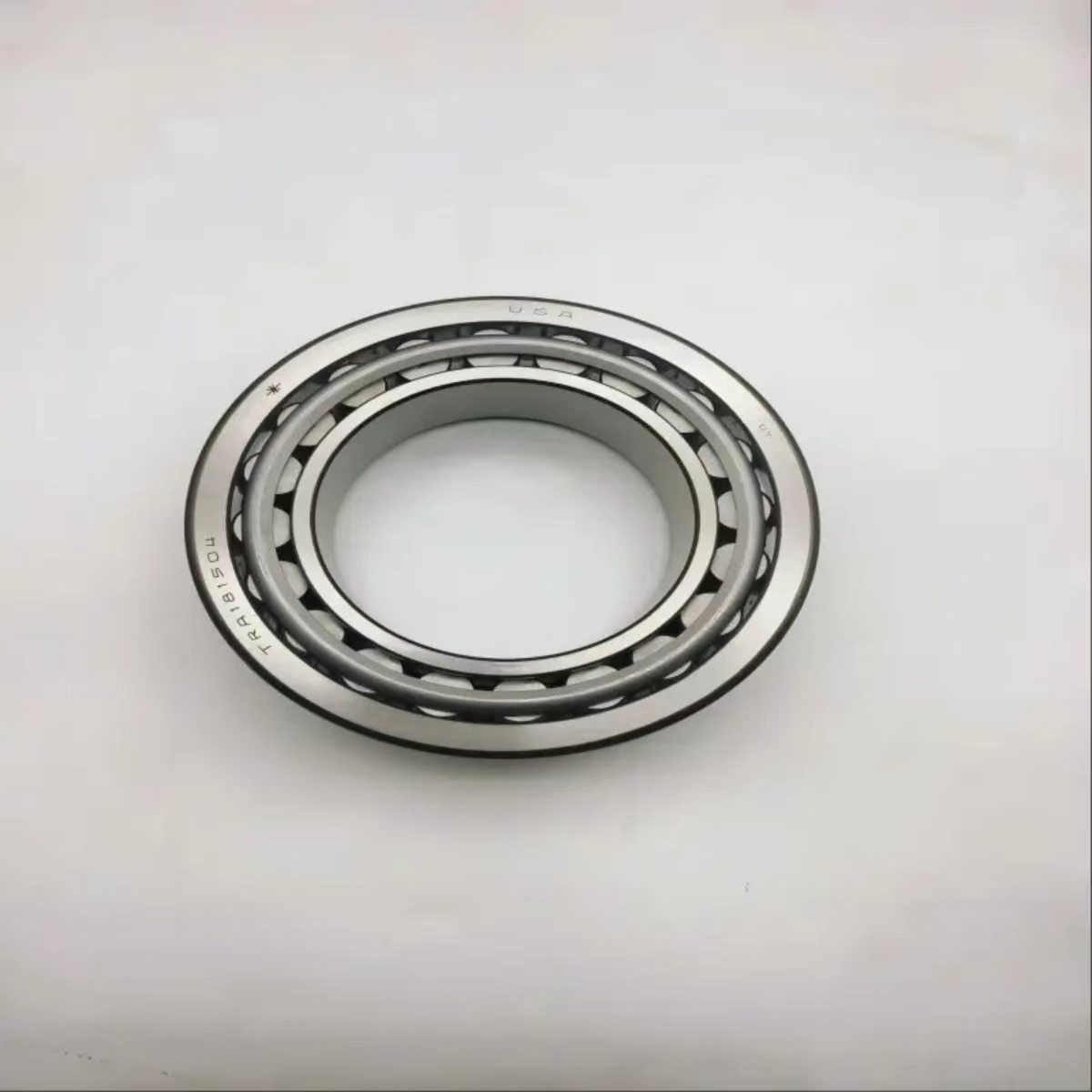

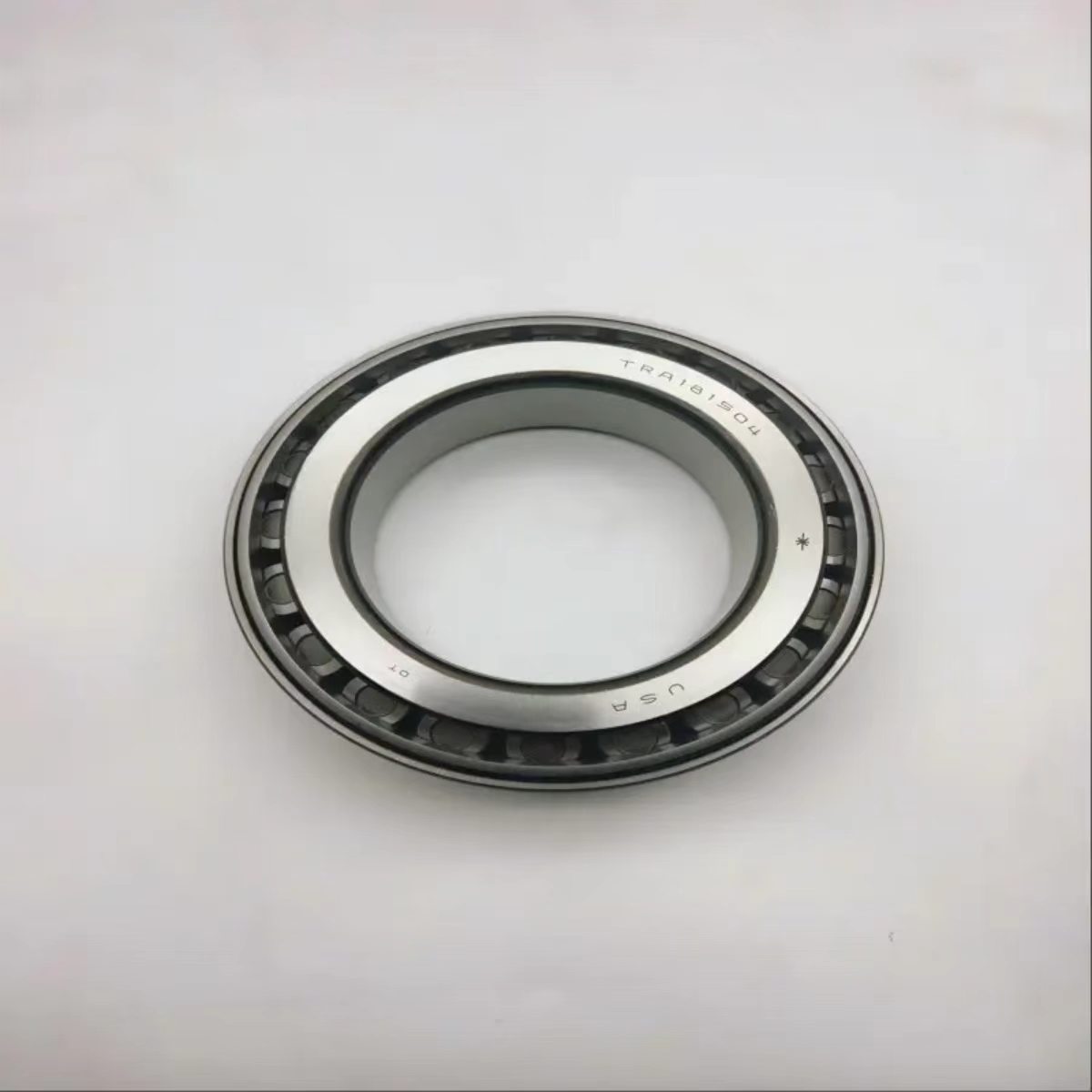

TRA181504 Tapered Roller Bearing

Massive Load Management: Thick cross-section designed specifically to withstand extreme mechanical forces.
Crowned Roller Profile: Optimizes stress distribution and prolongs fatigue life under continuous heavy operation.
High Shock Tolerance: Exceptional core toughness absorbs sudden impact loads without structural failure.
Strict Quality Control: Every unit undergoes 100% dimensional and ultrasonic integrity testing.

Technical Data

Technical Parameter	Metric Value
Inner Bore Diameter (d)	90.00 mm
Outer Diameter (D)	150.00 mm
Total Width (T)	38.50 mm
Cone Width (B)	36.00 mm
Precision Standard	Industrial P0 / P6

Part No.	d	D	T	B
TR131305	65	130	51	27.5
TR191504	92.08	152.4	39.69	39.32
TR191604	95	160	42.5	40
TRA0607	30	72	20.75	19
TRA080702	40	68	22	19.5
TRA101104	50	105	37	36
TRA161404	80	142	38	39
TRA181504	90	150	38.5	36

Product Specifications

Specification	Details
Item Type	Large Tapered Roller Bearing
Model Number	TRA181504
Bearing Design	Single Row Tapered
Material	High-Purity GCr15 / SAE 52100 Steel
Cage Material	Heavy-Duty Stamped Steel

Product Introduction

The TRA181504 is a large-diameter tapered roller bearing crafted for the most rigorous industrial power transmission challenges. Sized at 90 x 150 x 38.5 mm, this heavy-duty bearing efficiently transmits massive radial and thrust forces in severe environments such as mining equipment and steel rolling mills. Forged in our high-capacity production facility from premium vacuum-degassed bearing steel, the TRA181504 features precision-crowned rollers that eliminate destructive edge stresses under heavy loads. Fully compliant with international quality standards, it stands as a highly reliable solution for B2B heavy machinery procurement.

Applications

Heavy mining crushers and rotary drives.
Steel mill rolling machinery and heavy gear reducers.
Marine propulsion systems and large winches.

FAQ

Q: Can this bearing handle continuous heavy-duty operation?
A: Yes, it is specifically designed with deep case-hardened steel to endure continuous, heavy-duty industrial cycles without premature wear.
Q: Do you provide technical inspection reports for large orders?
A: Absolutely, we can provide complete factory material and dimensional inspection certificates (COA) with bulk shipments.

OEM & Custom Service

Our engineering division provides full B2B heavy-industry support, offering specialized anti-wear surface treatments, custom greasing, and bespoke heavy-machinery supply programs.

Packing & Delivery

Treated with high-performance rust inhibitors, hermetically sealed in heavy-gauge VCI polymer, and secured in custom-engineered wooden export crates.
