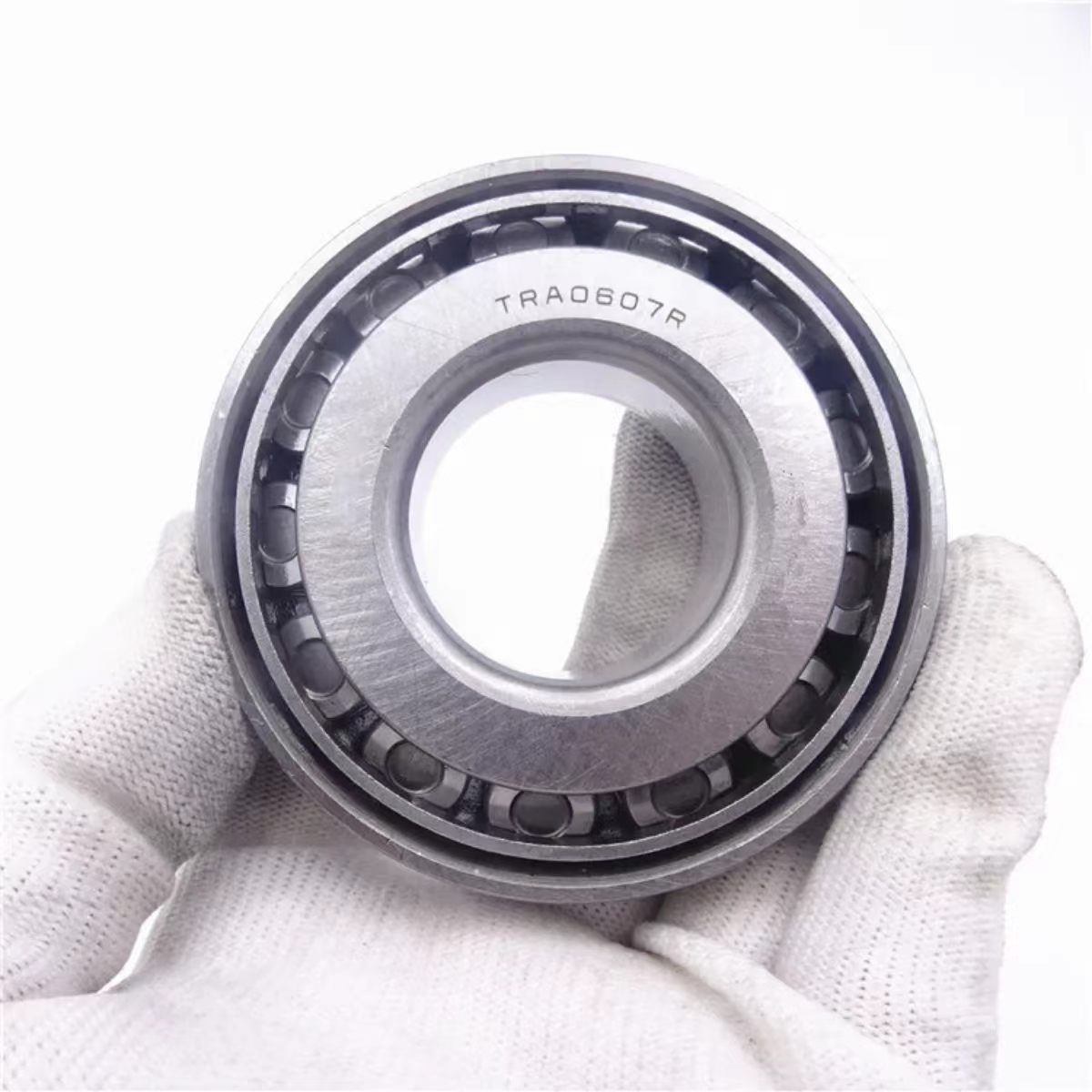

TRA0607 Tapered Roller Bearing

Compact High Density: Delivers excellent thrust and radial load capacity within a small spatial footprint.
Low Rolling Resistance: Ultra-smooth raceway finish drastically reduces mechanical drag.
Extended Fatigue Life: Advanced thermal hardening protects against surface wear under frequent direction changes.
Precision Alignment: Factory-matched cup and cone guarantee true running accuracy.

Technical Data

Technical Parameter	Metric Value
Inner Bore Diameter (d)	30.00 mm
Outer Diameter (D)	72.00 mm
Total Width (T)	20.75 mm
Cone Width (B)	19.00 mm
Precision Standard	ABEC-1 / P0

Part No.	d	D	T	B
TR131305	65	130	51	27.5
TR191504	92.08	152.4	39.69	39.32
TR191604	95	160	42.5	40
TRA0607	30	72	20.75	19
TRA080702	40	68	22	19.5
TRA101104	50	105	37	36
TRA161404	80	142	38	39
TRA181504	90	150	38.5	36

Product Specifications

Specification	Details
Item Type	Tapered Roller Bearing
Model Number	TRA0607
Bearing Design	Single Row Tapered
Material	Premium GCr15 / SAE 52100 Steel
Cage Material	Stamped Steel

Product Introduction

The TRA0607 is a precision compact tapered roller bearing designed to provide substantial load-carrying capacity in space-constrained applications. With exact dimensions of 30 x 72 x 20.75 mm, it is frequently utilized in automotive steering systems, light differentials, and compact industrial gear motors. Produced with ultra-clean GCr15 bearing steel, the TRA0607 ensures minimal heat generation and long fatigue life. Our factory’s automated grinding and assembly lines guarantee strict dimensional consistency, offering B2B distributors a high-performance, vibration-free bearing solution.

Applications

Automotive steering column mechanisms.
Light utility vehicle wheel hubs and gearboxes.
Compact industrial speed reducers and motors.

FAQ

Q: Is the TRA0607 pre-lubricated?
A: Standard tapered roller bearings are supplied coated in anti-rust oil and require appropriate greasing or oil bath lubrication prior to operation.
Q: Can this replace standard ISO bearings of the same size?
A: Yes, it is manufactured to exact industry tolerances for seamless drop-in replacement.

OEM & Custom Service

Our engineering division provides full B2B support, including custom internal clearances, specific part number etching, and bespoke retail box design.

Packing & Delivery

Each unit is treated with rust inhibitors, wrapped in VCI paper, packed in individual boxes, and secured in master cartons for safe maritime and air freight.
