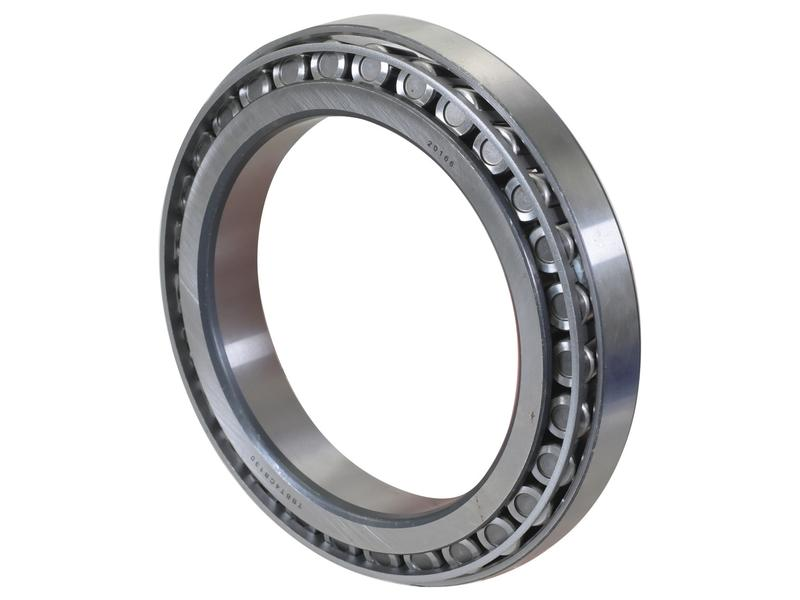

T4DB260 Tapered Roller Bearing
T4DB260 is a large metric single-row tapered roller bearing with a 260 mm bore, 340 mm outside diameter and 42 mm width. It is intended for large industrial machinery and mechanical transmission applications.
T4DB260 is associated with JP26049/10 and forms part of the T4DB tapered roller bearing family. Reference catalog data may show a mass around 8.91 kg, while actual production weight can vary by manufacturer.
Key Features
Large metric tapered roller bearing
260 mm bore
340 mm outside diameter
42 mm width
Single-row configuration
Industrial and OEM supply support
Technical Specifications
| Designation | T4DB260 |
|---|---|
| Related Designation | JP26049/10 |
| Bore Diameter | 260 mm |
| Outside Diameter | 340 mm |
| Width | 42 mm |
| Reference Weight | Approx. 8.91 kg* |
*Bearing weight may vary between manufacturers and configurations.
Applications
T4DB260 can be used in large gearboxes, industrial transmissions, reduction systems, heavy machinery and other large rotating equipment.
Related Models
| Model | d | D | T | Related Designation |
|---|---|---|---|---|
| T4DB200 | 200 | 270 | 37 | JP20049/10 |
| T4DB240 | 240 | 320 | 42 | JP24049/10 |
| T4DB260 | 260 | 340 | 42 | JP26049/10 |
Service & OEM Support
DBS Bearing supports OEM production, private label packaging, custom laser marking, bulk orders and industrial sourcing programs.
FAQ
What are the dimensions of T4DB260?
T4DB260 measures 260 × 340 × 42 mm.
What is the related JP designation?
JP26049/10 is the associated designation.
Can DBS supply large quantities?
Yes. DBS Bearing can discuss bulk and OEM requirements based on quantity and delivery schedule.
Request a Quote
Contact DBS Bearing for T4DB260 quotation and supply information.
