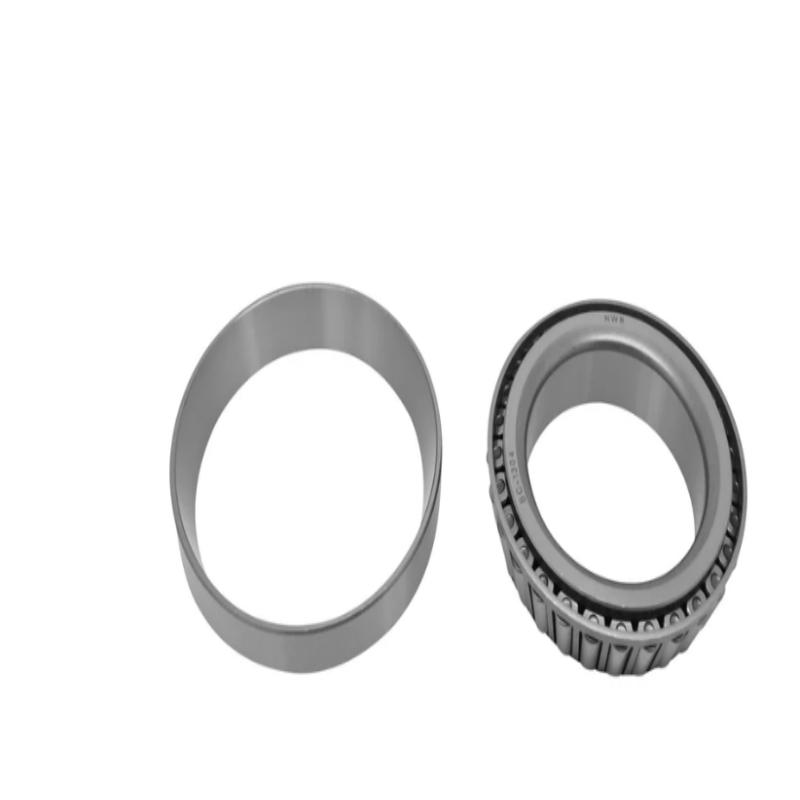

T4DB180 Tapered Roller Bearing
T4DB180 is a metric single-row tapered roller bearing with a 180 mm bore, 240 mm outside diameter and 32 mm width. It is intended for industrial machinery, transmissions and heavy mechanical drive systems.
T4DB180 is associated with JP18049/10 and forms part of the T4DB series.
Key Features
Single-row tapered roller bearing
180 mm bore diameter
240 mm outside diameter
32 mm width
Metric T4DB series
Bulk and OEM supply available
Technical Specifications
| Designation | T4DB180 |
|---|---|
| Related Designation | JP18049/10 |
| Bore Diameter | 180 mm |
| Outside Diameter | 240 mm |
| Width | 32 mm |
| Reference Weight | Approx. 3.62 kg |
Applications
T4DB180 can be used in industrial gearboxes, transmissions, reduction systems and heavy machinery.
Related Models
| Model | d | D | T | Related Designation |
|---|---|---|---|---|
| T4DB160 | 160 | 220 | 32 | JP16049/10 |
| T4DB180 | 180 | 240 | 32 | JP18049/10 |
| T4DB200 | 200 | 270 | 37 | JP20049/10 |
| T4DB240 | 240 | 320 | 42 | JP24049/10 |
Service & OEM Support
DBS Bearing supports bulk orders, OEM production, custom packaging, private labeling and customized bearing markings.
FAQ
What are the dimensions of T4DB180?
T4DB180 is 180 × 240 × 32 mm.
What is the related JP designation?
The associated designation is JP18049/10.
Can DBS supply T4DB180 for distributors?
Yes. DBS Bearing supports wholesale and distributor supply programs.
Request a Quote
Contact DBS Bearing for T4DB180 pricing and availability.
