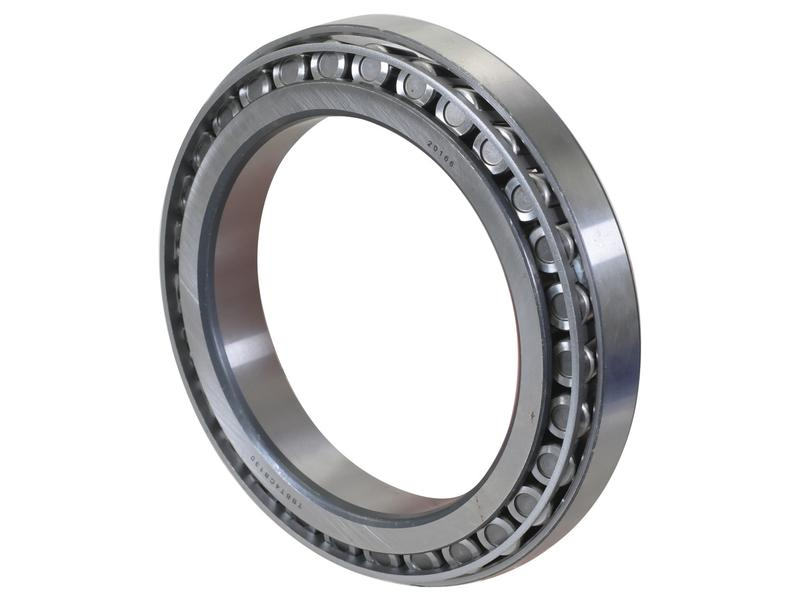

T4DB160 Tapered Roller Bearing
T4DB160 is a metric single-row tapered roller bearing with a 160 mm bore, 220 mm outside diameter and 32 mm width. It is designed for industrial equipment and transmission applications requiring tapered roller bearing support.
T4DB160 is associated with JP16049/10 and belongs to the T4DB tapered roller bearing family.
Key Features
Metric single-row tapered roller bearing
160 mm bore
220 mm outside diameter
32 mm width
Separable bearing construction
Suitable for industrial applications
Technical Specifications
| Designation | T4DB160 |
|---|---|
| Related Designation | JP16049/10 |
| Bore Diameter | 160 mm |
| Outside Diameter | 220 mm |
| Width | 32 mm |
| Reference Weight | Approx. 3.25 kg |
Applications
T4DB160 can be used in gearboxes, transmissions, reduction units, industrial machinery and heavy mechanical drive systems.
Related Models
| Model | d | D | T | Series |
|---|---|---|---|---|
| T4DB150 | 150 | 210 | 32 | JP15049/10 |
| T4DB160 | 160 | 220 | 32 | JP16049/10 |
| T4DB180 | 180 | 240 | 32 | JP18049/10 |
| T4DB200 | 200 | 270 | 37 | JP20049/10 |
Service & OEM Support
DBS Bearing provides bulk bearing supply, OEM production, custom packaging, private labeling and customized marking.
FAQ
What are the dimensions of T4DB160?
T4DB160 measures 160 × 220 × 32 mm.
What is the related designation?
JP16049/10 is the associated designation.
Can DBS provide OEM T4DB160 bearings?
Yes. OEM and private label programs are available.
Request a Quote
Contact DBS Bearing for T4DB160 quotation and supply information.
