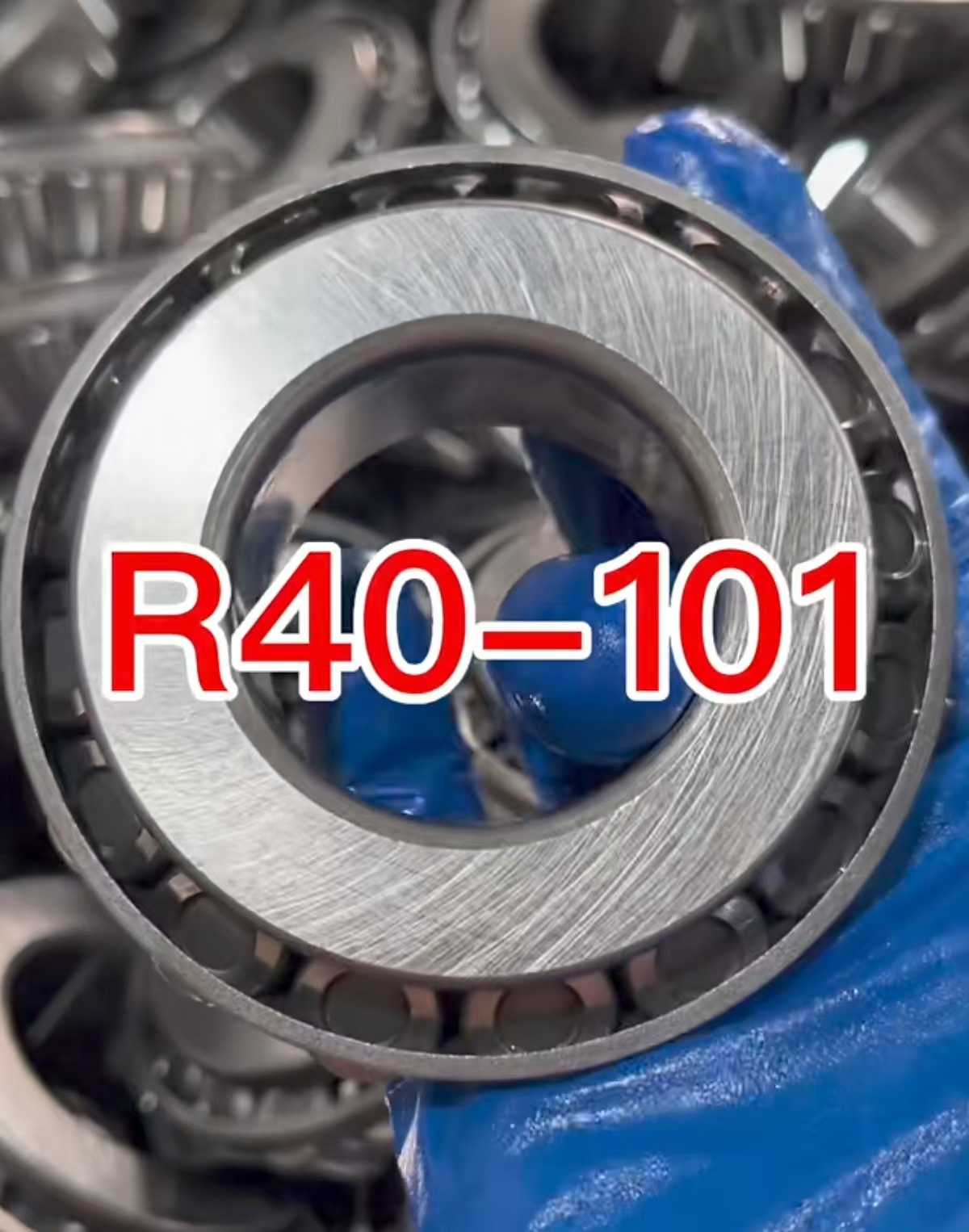

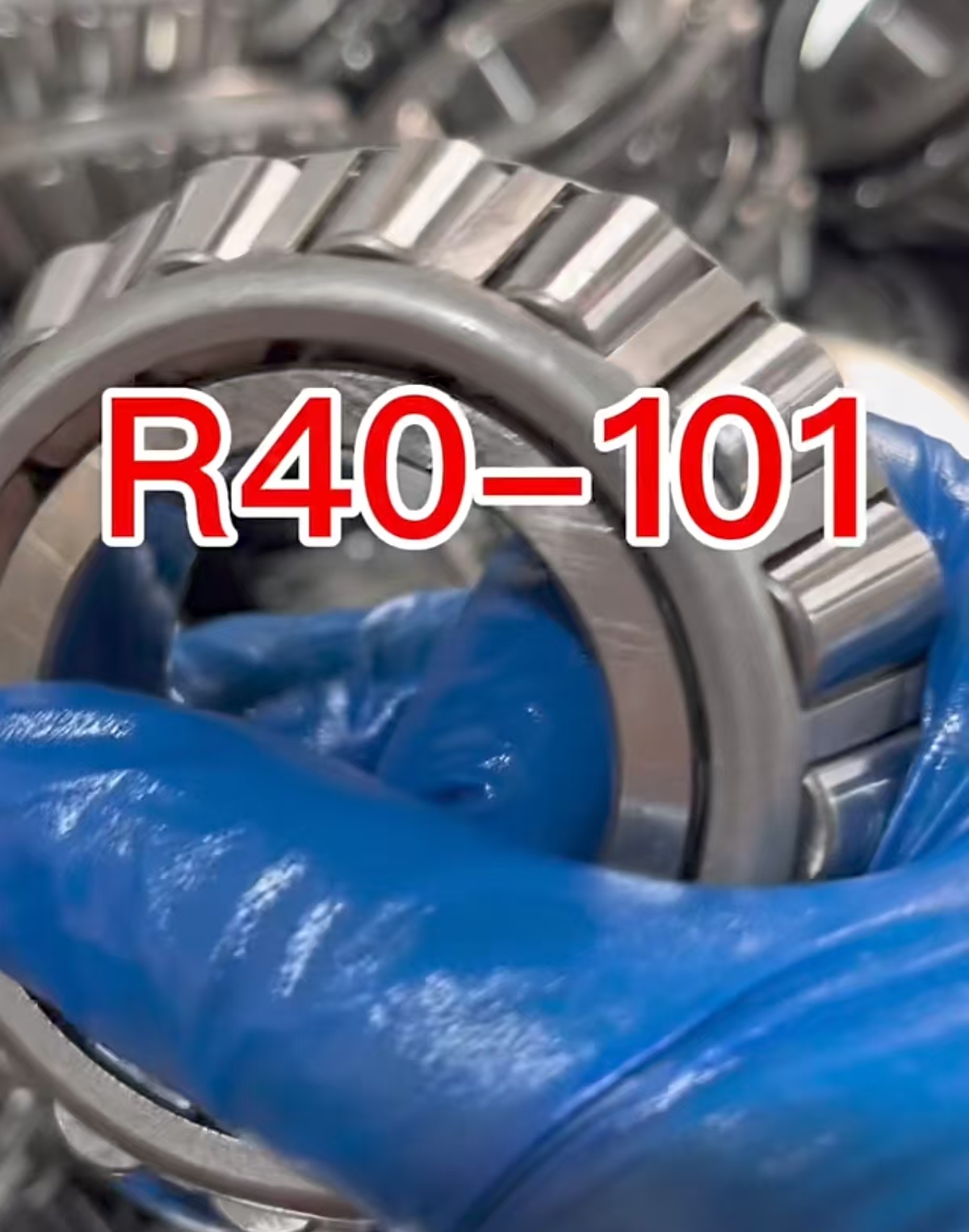

R40-101 Precision Tapered Roller Bearing

Dynamic Load Handling: Expertly manages simultaneous radial weight and unidirectional axial thrust forces.
Precision Micro-Finishing: Exacting dimensional tolerances (down to 0.001mm) ensure smooth, vibration-free rotation at high speeds.
Separable Assembly: The cone (inner ring with roller assembly) and cup (outer ring) can be mounted independently, streamlining factory installation. Thermal Stability: Advanced heat treatment allows for stable continuous operation in high-temperature gearbox environments.

Technical Data

Technical Parameter	Metric Value
Inner Bore Diameter (d)	40.000 mm
Outer Diameter (D)	90.000 mm
Total Width (T)	26.250 mm
Precision Standard	ABEC-1 / P0

Product Specifications

Specification	Details
Item Type	Tapered Roller Bearing
Model Number	R40-101
Bearing Design	Single Row Tapered
Material	Premium GCr15 / SAE 52100 Steel
Cage Material	Heavy-Duty Stamped Steel

Product Introduction

The R40-101 is a highly precise single-row tapered roller bearing designed to deliver exceptional stability and power transmission under heavy combined radial and axial loads. Featuring exact dimensions of 40.000 x 90.000 x 26.250 mm, this bearing provides high structural stiffness for demanding mechanical environments. Forged from premium ultra-clean GCr15 bearing steel, the R40-101 undergoes advanced deep-case hardening to resist subsurface fatigue and abrasive wear. Our automated manufacturing lines ensure precise matching of the cup and cone, providing global B2B distributors and machinery manufacturers with a reliable, low-friction component that minimizes equipment downtime.

Applications

Automotive manual and automatic transmission systems.
Industrial heavy-duty gear reducers and transfer cases.
Agricultural machinery differentials and axle hubs.

FAQ

Q: Can this bearing handle bidirectional axial loads?
A: A single-row tapered roller bearing like the R40-101 can only accommodate axial loads in one direction. For bidirectional support, two bearings must be mounted in an opposing pair configuration.
Q: Is the 26.250mm measurement the total width?
A: Yes, 26.250mm represents the total assembly width (T) when the cup and cone are mounted together.

OEM & Custom Service

We empower international automotive aftermarket and industrial machinery brands with comprehensive B2B services, including custom laser etching of part numbers, specialized greasing solutions, and tailored retail box packaging.

Packing & Delivery

Each bearing is deeply coated in premium rust inhibitors, wrapped in moisture-barrier VCI paper, and packed in reinforced individual boxes. Bulk orders are consolidated into master export cartons and securely palletized for safe global ocean or air freight.
