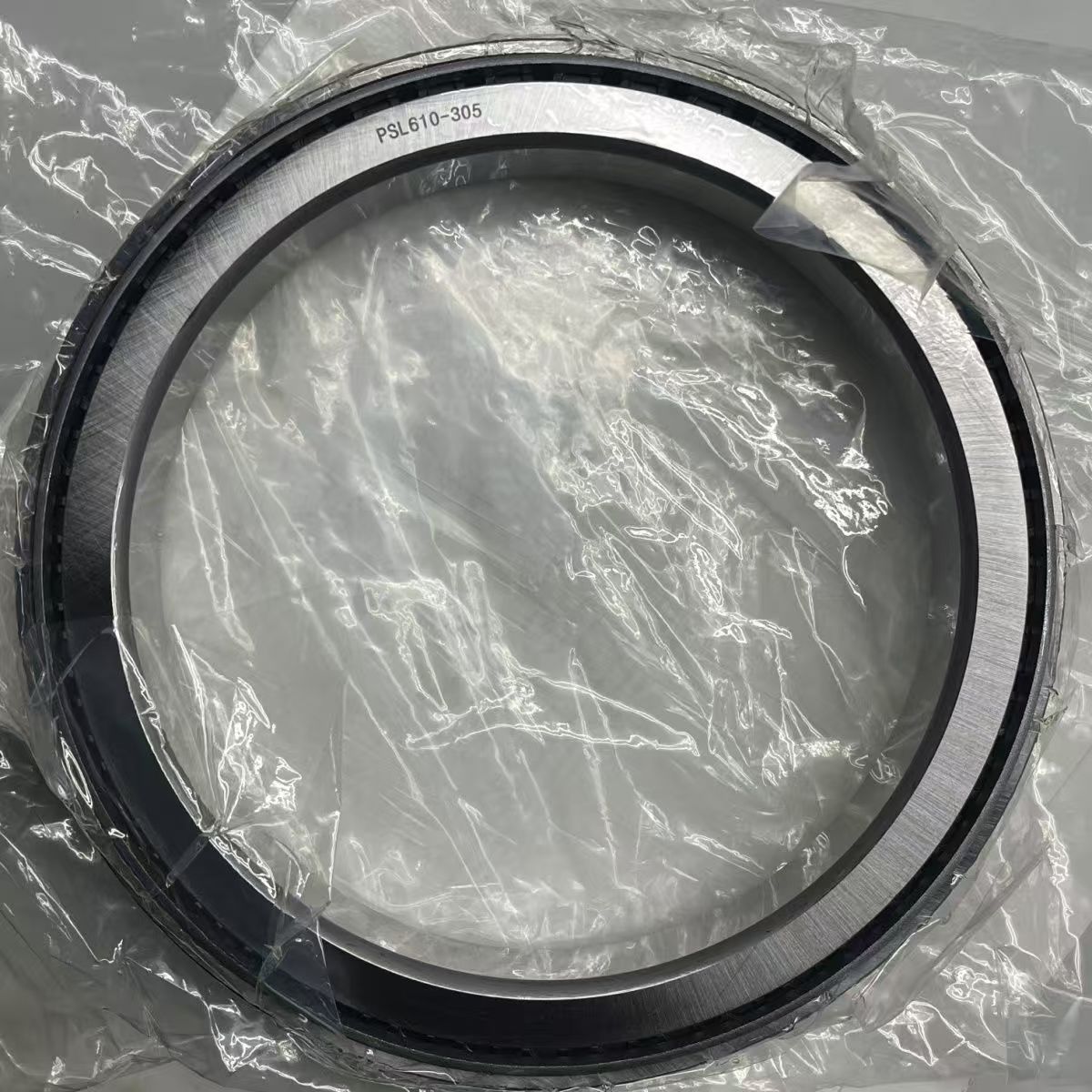

PSL610-305 Metric Tapered Roller Bearing

Thin-Section Design: 170mm inner bore with only 220mm outer diameter provides maximum shaft clearance in compact gear housings.
High Rigidity: Optimized roller complement ensures high radial dynamic load ratings and minimal deformation under stress.
Separable Design: Outer ring (cup) can be installed separately from the inner ring and roller assembly (cone).
Thermal Stability: Special heat treatment allows reliable performance under high operating temperatures.

Technical Data

Technical Parameter	Metric Value
Inner Bore Diameter (d)	170.00 mm
Outer Diameter (D)	220.00 mm
Total Width (T)	27.00 mm
Precision Standard	ISO P0 / ABEC-1

Product Specifications

Specification	Details
Item Type	Large Metric Tapered Roller Bearing
Model Number	PSL610-305
Bearing Design	Single Row Tapered
Material	Top-Tier GCr15 High-Carbon Steel
Cage Material	High-Strength Stamped Steel

Source PSL610-305 (170x220x27mm) large metric tapered roller bearings. High-precision design for steel mills, heavy machinery, and industrial gearboxes.

Product Introduction

The PSL610-305 is a high-capacity, large-diameter metric tapered roller bearing designed for heavy mechanical engineering applications. Measuring 170 x 220 x 27 mm, this thin-section bearing offers an exceptional strength-to-weight ratio, allowing engineers to maximize shaft diameter while reducing total equipment mass. Forged from vacuum-degassed GCr15 steel with super-finished raceways, the PSL610-305 minimizes rolling resistance and thermal expansion under heavy loads. Global B2B buyers count on this model for continuous-duty machinery, metallurgical equipment, and industrial drivetrains.

Applications

Metallurgical rolling mills and continuous casting equipment.
Heavy industrial gearboxes and speed reducers.
Large centrifugal pumps, blowers, and marine propulsion drives.

FAQ

Q: Can this bearing be used in paired configurations?
A: Yes, single row tapered roller bearings are commonly mounted face-to-face or back-to-back to manage bi-directional thrust loads.
Q: What precision grades are available?
A: Standard production is ISO P0 / ABEC-1; higher precision grades (P6 or P5) can be manufactured upon request.

OEM & Custom Service

B2B manufacturing options include custom laser engraving, tailored internal clearances (C2/C3/C4), private-label packaging, and consolidated freight logistics.

Packing & Delivery

Protected with specialized low-viscosity rust preventatives, sealed in heavy VCI barrier film, and packed into individual reinforced export boxes.
