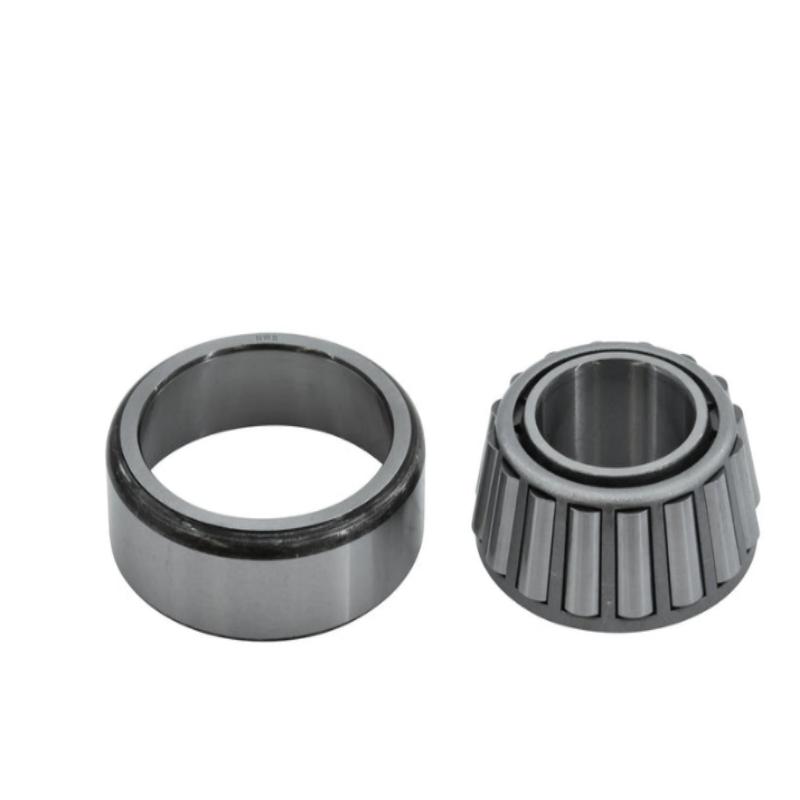

NP751516/NP317439 Non-Standard Tapered Roller Bearing

Specialized Dimensions: Custom-engineered 38.1x79.375x29.37mm profile for proprietary equipment designs.
High Rigidity: Excellent resistance to shaft deflection under severe dynamic and torque loads.
Micro-Finished Raceways: Ensures quiet operation and maximizes the effectiveness of lubrication.
Separable Cup & Cone: Facilitates streamlined factory press-fitting and easier field servicing.

Technical Data

Technical Parameter	Metric Value
Inner Bore Diameter (d)	38.100 mm
Outer Diameter (D)	79.375 mm
Total Width (T)	29.370 mm
Precision Standard	ABEC-1 / P0

Product Specifications

Specification	Details
Item Type	Non-Standard Tapered Roller Bearing
Model Number	NP751516/NP317439 (Cone: NP751516 / Cup: NP317439)
Bearing Design	Single Row Tapered
Material	High-Purity GCr15 Chrome Steel
Cage Material	Stamped Steel

Product Introduction

The NP751516/NP317439 is a specialized non-standard tapered roller bearing engineered to precise dimensional specifications. Measuring 38.1 x 79.375 x 29.37 mm, this bearing provides high structural integrity and exceptional radial and axial load support in specialized mechanical housings where standard dimensional series do not fit. Manufactured from ultra-clean GCr15 chrome alloy steel and processed with stringent dimensional controls, the NP751516/NP317439 delivers long-term durability and smooth rotation, making it a critical solution for bespoke automotive builds and proprietary industrial drivetrains.

Applications

Proprietary automotive gearboxes and specialty transmissions.
Custom agricultural implement drives and PTO shafts.
Specialized industrial machinery and speed reducers.

FAQ

Q: Why is this considered a "non-standard" bearing?
A: It features specific dimensional modifications (indicated by the "NP" prefix) that fall outside standard ISO/ABMA inch or metric series charts, usually designed for specific OEM applications.
Q: Can you guarantee consistent supply for this non-standard size?
A: Yes, we provide reliable long-term supply contracts for B2B clients relying on specialized dimensional bearings.

OEM & Custom Service

We offer specialized B2B solutions including custom internal clearance matching, bespoke laser marking, and dedicated low-volume production runs for specialty parts.

Packing & Delivery

Coated in anti-rust fluid, hermetically sealed in VCI barrier film, packed into individual cartons, and consolidated securely on heat-treated export pallets.
