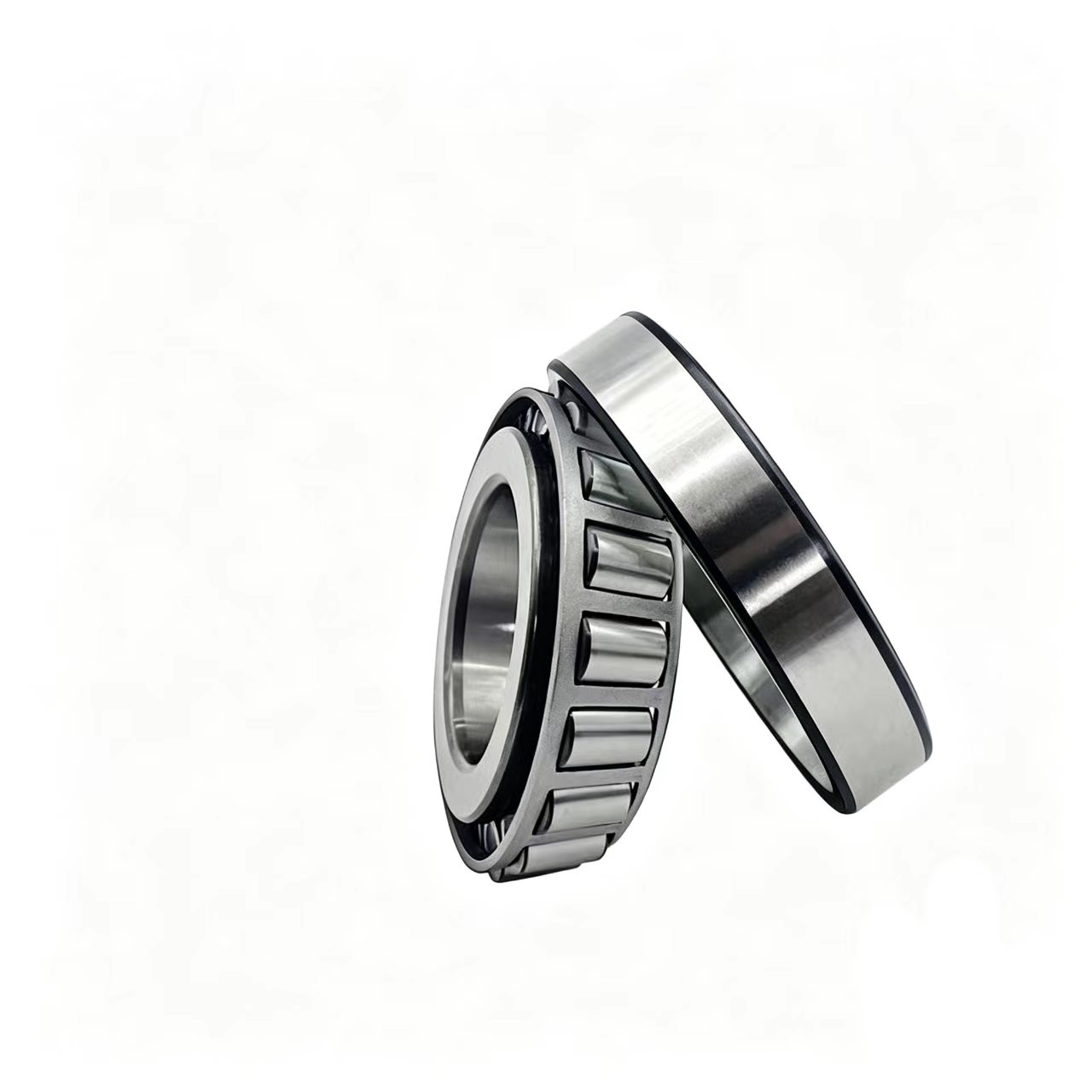

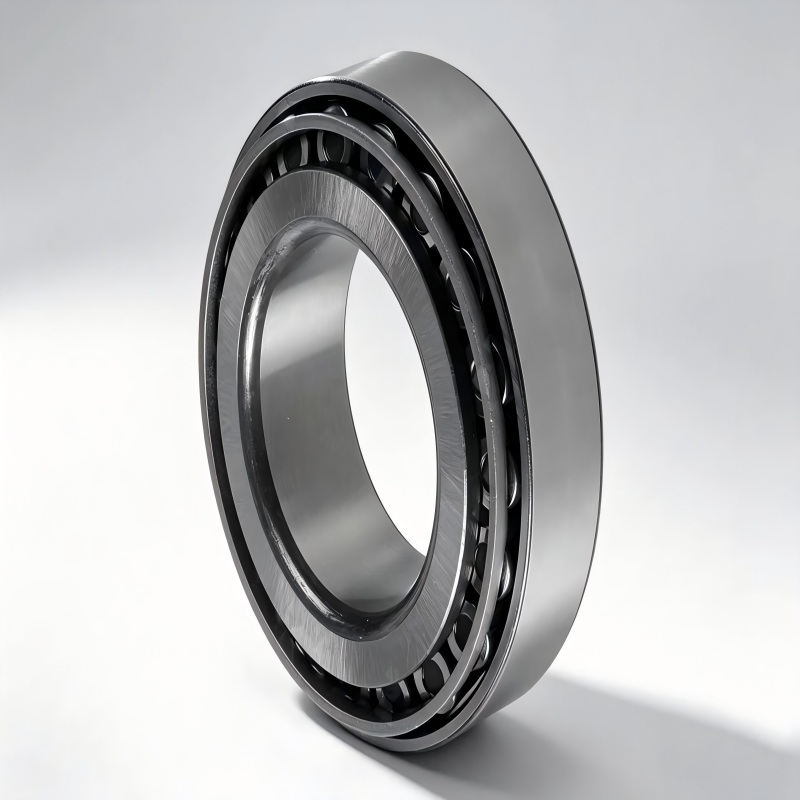

M205149/JM205110 Tapered Roller Bearing
JM205149/JM205110 Tapered Roller Bearing
Product Overview
JM205149/JM205110 is a single row tapered roller bearing with a 50 mm bore, 90 mm outside diameter and 28 mm overall width. It is designed to support combined radial and axial loads in mechanical transmission systems, commercial vehicle assemblies and industrial equipment.
This bearing is also commonly searched as JM205149/10 and JM205149/110. Its cone and cup construction allows the bearing to be installed and adjusted according to the requirements of the application.
DBS Bearing supplies JM205149/JM205110 tapered roller bearings for aftermarket replacement, commercial vehicle maintenance, transmission repair and OEM bearing supply. We also support customers searching by original equipment part numbers and aftermarket reference numbers.
Key Features
Single row tapered roller bearing construction.
50 mm bore and 90 mm outside diameter.
28 mm overall bearing width.
Separate cone and cup components.
Suitable for combined radial and axial loading.
Cross-reference information for commercial vehicles and transmission applications.
OEM marking and private-label packaging available.
Replacement matching and export supply support.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | JM205149/JM205110 |
| Alternative Designation | JM205149/10 |
| Bearing Type | Single Row Tapered Roller Bearing |
| Inner Ring / Cone | JM205149 |
| Outer Ring / Cup | JM205110 |
| Inner Diameter (d) | 50 mm |
| Outer Diameter (D) | 90 mm |
| Overall Width (T) | 28 mm |
| Inner Ring Width (B) | 28 mm |
| Outer Ring Width (C) | 23 mm |
| Bearing Arrangement | Single Row |
| Supply Options | Replacement / OEM / Private Label |
Technical Note: Dimensions are based on the JM205149/JM205110 bearing designation. Load ratings, speed limits, tolerances and cage specifications should be confirmed for the supplied manufacturing configuration.
Applications
JM205149/JM205110 tapered roller bearings are associated with a range of commercial vehicle and transmission replacement references. They can be considered for applications requiring reliable support under combined radial and axial loads.
Commercial truck transmission systems.
Heavy-duty mechanical transmission assemblies.
Gearbox maintenance and repair applications.
Commercial vehicle drivetrain components.
Agricultural and industrial machinery.
Mechanical equipment requiring tapered roller bearings.
Aftermarket bearing replacement and maintenance projects.
Application compatibility should be verified using the original equipment part number, bearing dimensions and complete technical specifications. A matching cross-reference number alone does not guarantee suitability for every equipment configuration.
Bearing Design

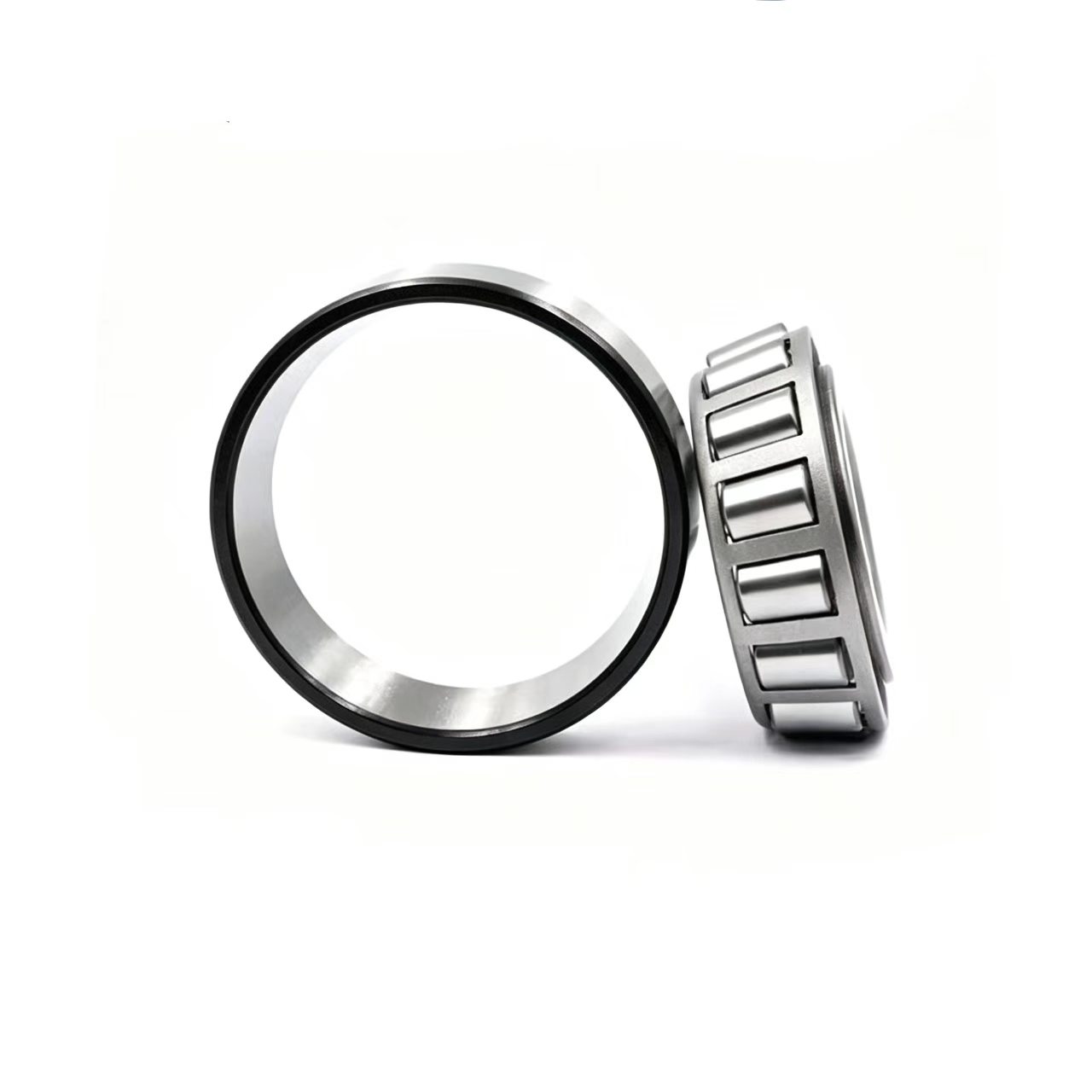

JM205149/JM205110 consists of two main components: the JM205149 cone assembly and the JM205110 outer cup.
The cone contains the inner ring and tapered rolling elements, while the cup provides the corresponding outer raceway. Together, these components form a single row tapered roller bearing capable of supporting radial and axial forces.
Tapered roller bearings are commonly used in opposed arrangements where axial positioning and bearing adjustment are important. Correct installation, lubrication and operating clearance are essential for reliable performance.
For replacement applications, customers should confirm the complete cone and cup combination, rather than selecting a bearing solely by its 50 × 90 × 28 mm external dimensions.
OE Cross-Reference & Related Part Numbers
JM205149/JM205110 is associated with various original equipment and aftermarket bearing reference numbers. The following cross-reference information can help customers identify bearings used in commercial vehicles, transmissions and mechanical equipment.
| Brand / Manufacturer | OE / Reference Number |
|---|---|
| TIMKEN | SET315, SET 315 |
| IVECO | 42575195, 1905480 |
| DAF | 1615 793 |
| EUROTEC | 98000733 |
| SKF | VKT 8604, VKHB 2023 |
| MERCEDES-BENZ | 017 981 3105 |
| ZF TRANSMISSIONS | 0750 118 992, 0750 117 640 |
| MAN | 06 32489 0141, 06 32489 0123 |
| RENAULT TRUCKS | 50 01 853 931 |
| SCANIA | 317350 |
| FIAT | 86500913, 86513688 |
| JOHN DEERE | JD9058 (Cone), JD9121 (Cup) |
| FERSA | JM205149/JM205110 |
| OTHER REFERENCE | JM205149/10 |
Cross-Reference Notice: The listed part numbers are provided for bearing identification and aftermarket reference purposes. They do not indicate that DBS Bearing products are manufactured by or affiliated with the listed brands. Complete interchangeability must be confirmed against the original equipment requirements.
Service & OEM Support
DBS Bearing provides bearing sourcing, OEM production coordination and aftermarket replacement supply for customers worldwide.
OEM and private-label bearing supply.
Customized laser marking and customer branding.
Neutral boxes and customized export packaging.
Replacement bearing identification using OE numbers.
Technical matching based on dimensions and drawings.
Product inspection and shipment coordination.
Support for sample orders and commercial quantities.
Customers can provide original part numbers, bearing photographs, technical drawings or equipment information. Our team can assist in evaluating suitable replacement solutions.
FAQ
What type of bearing is JM205149/JM205110?
JM205149/JM205110 is a single row tapered roller bearing designed to support combined radial and axial loads.
What are the dimensions of JM205149/JM205110?
The bearing has a 50 mm inner diameter, 90 mm outer diameter and 28 mm overall width.
What is the difference between JM205149 and JM205110?
JM205149 refers to the cone assembly, while JM205110 refers to the outer cup. Both components form the complete tapered roller bearing set.
Is JM205149/10 the same as JM205149/JM205110?
JM205149/10 is commonly used as a shortened reference for the JM205149/JM205110 bearing combination. The complete designation should be confirmed when ordering.
Is SET315 related to JM205149/JM205110?
SET315 is listed as a related aftermarket reference in the supplied cross-reference information. The exact bearing configuration should be confirmed before replacement.
Can this bearing be used in ZF transmissions?
The supplied reference list includes ZF transmission numbers 0750 118 992 and 0750 117 640. Compatibility with a specific transmission model must be verified using the original part number and technical requirements.
Can DBS Bearing supply JM205149/JM205110 under a customer brand?
Yes. DBS Bearing supports OEM supply, customized marking, private-label packaging and export packing according to customer requirements.
Can customers order the cone and cup separately?
Customers can request quotations for the complete bearing set or individual components. Availability and component compatibility should be confirmed before ordering.
Request a Quote
Looking for JM205149/JM205110 tapered roller bearings or a replacement for SET315, VKT 8604, VKHB 2023 or related OE references?
Contact DBS Bearing for pricing, availability, technical confirmation and OEM supply. Please provide your required quantity, original part number and destination country to help us prepare a suitable quotation.
