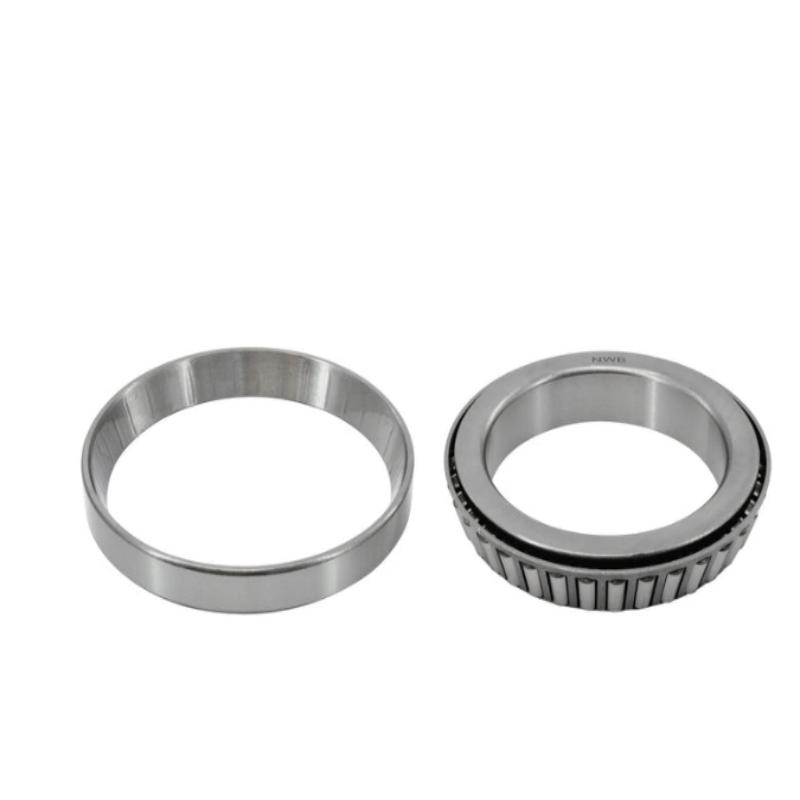

L814749/L814710 Light Imperial Tapered Roller Bearing
- Space and Weight Optimization: The light cross-section allows for compact housing designs around standard 3-inch shafts.
- Low Rotational Inertia: Reduced mass of rolling elements allows for quicker acceleration in dynamic machinery.
- High Rigidity: Optimized roller-to-raceway contact handles dynamic combined loads effectively.
- Superior Lubricant Flow: Open cage design ensures excellent circulation of oil or grease for cooling.
Technical Data
| Technical Parameter | Metric Value |
| Inner Bore Diameter (d) | 76.200 mm |
| Outer Diameter (D) | 109.538 mm |
| Total Width (T) | 19.050 mm |
| Precision Standard | ABEC-1 / P0 |
Product Specifications
| Specification | Details |
| Item Type | Light-Series Imperial Tapered Roller Bearing |
| Model Number | L814749/L814710 (Cone: L814749 / Cup: L814710) |
| Bearing Design | Single Row Tapered |
| Material | Premium GCr15 High-Carbon Steel |
| Cage Material | Precision Stamped Steel |
Product Introduction
The L814749/L814710 is a light-series imperial tapered roller bearing featuring a large 76.2 mm (3-inch) inner bore combined with a thin 19.05 mm cross-sectional width. Sized at 76.2 x 109.538 x 19.05 mm, this specific "L" (Light) series bearing is engineered for applications where large shaft diameters are necessary, but housing space and weight must be minimized. Manufactured from premium vacuum-degassed chrome steel, it delivers high rotational precision and stiffness without adding unnecessary bulk, making it ideal for compact drive assemblies.
Applications
Light-duty industrial transmissions and gearboxes.
Specialized agricultural machinery and implement hubs.
Precision large-diameter rotary index tables.
FAQ
Q: What does the "L" prefix indicate?
A: In imperial bearing nomenclature, "L" stands for Light series, denoting a bearing with a thinner cross-section relative to its bore size.
Q: Is sample testing available before placing volume orders?
A: Yes, we provide sample shipments for B2B OEM qualification and performance testing.
OEM & Custom Service
Bespoke manufacturing services including customized laser etching, specialized low-noise greasing, and customized box artwork.
Packing & Delivery
Coated in industrial rust preventative oil, sealed in VCI barrier material, boxed individually, and loaded on heat-treated export pallets.
