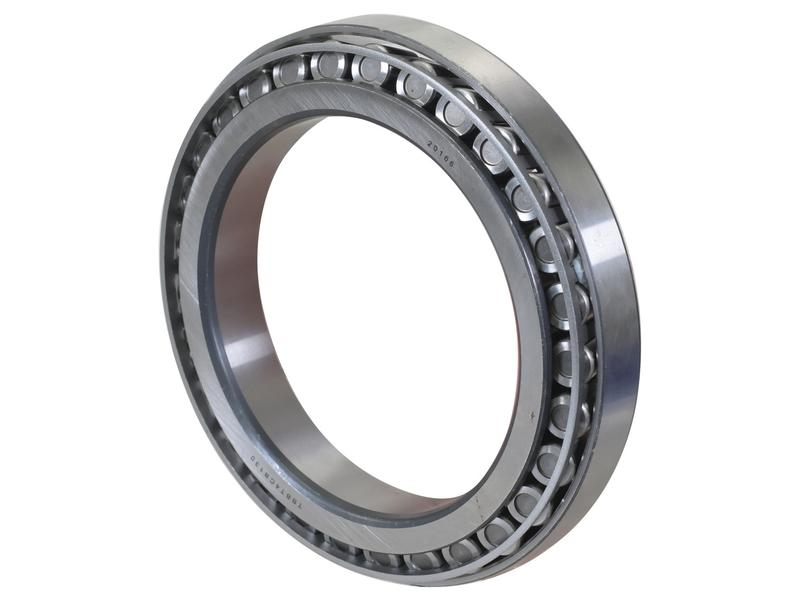

JP20049/10 Tapered Roller Bearing
JP20049/10 is a single-row tapered roller bearing with a 200 mm bore, 270 mm outside diameter and 37 mm width. The corrected 37 mm width is important when confirming housing and shaft installation dimensions.
JP20049/10 is associated with T4DB200 and is suitable for industrial transmissions, gearboxes, heavy machinery and mechanical drive systems.
Key Features
Single-row tapered roller bearing
200 mm bore
270 mm outside diameter
37 mm width
T4DB series configuration
Suitable for industrial applications
Technical Specifications
| Designation | JP20049/10 |
|---|---|
| Related Designation | T4DB200 |
| Bore Diameter | 200 mm |
| Outside Diameter | 270 mm |
| Width | 37 mm |
| Reference Weight | Approx. 5.5 kg* |
*Weight may vary according to manufacturer and bearing configuration.
Applications
Typical applications include industrial gearboxes, transmissions, reduction units, heavy machinery and large mechanical drive systems.
Related Models
| Model | d | D | T | Related Model |
|---|---|---|---|---|
| JP18049/10 | 180 | 240 | 32 | T4DB180 |
| JP20049/10 | 200 | 270 | 37 | T4DB200 |
| JP24049/10 | 240 | 320 | 42 | T4DB240 |
| JP26049/10 | 260 | 340 | 42 | T4DB260 |
Service & OEM Support
DBS Bearing provides OEM production, private label packaging, custom marking, bulk orders and bearing sourcing support for industrial customers.
FAQ
What are the dimensions of JP20049/10?
JP20049/10 measures 200 × 270 × 37 mm.
What is the corresponding T4DB designation?
The related designation is T4DB200.
Why should the width be confirmed before ordering?
The verified width is 37 mm, so customers should confirm the complete bearing dimensions against their application before ordering.
Request a Quote
Contact DBS Bearing for JP20049/10 pricing and technical confirmation.
