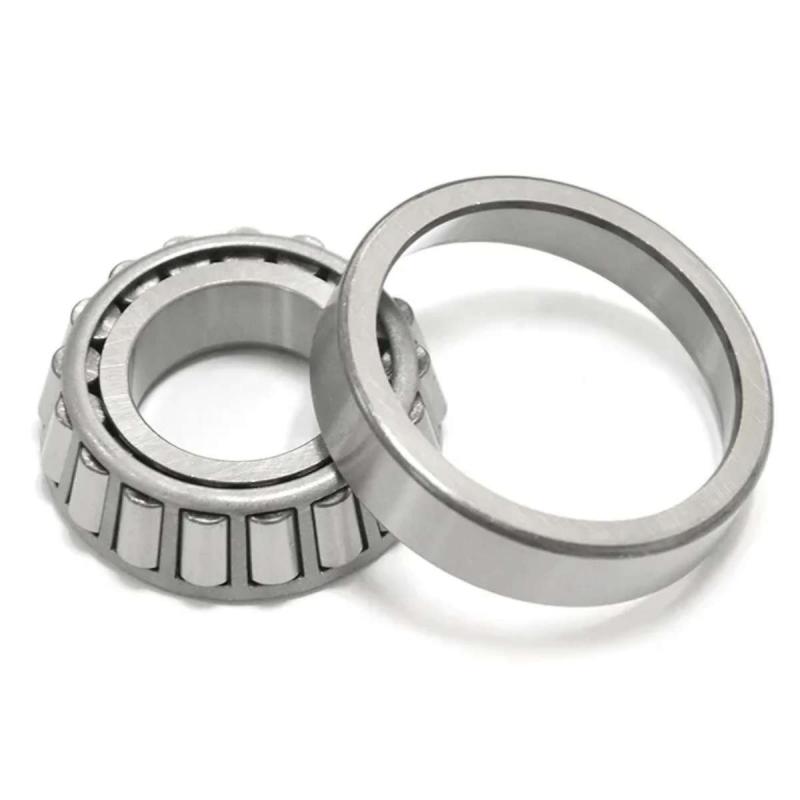

JP18049/10 Tapered Roller Bearing
JP18049/10 is a single-row tapered roller bearing with a 180 mm bore, 240 mm outside diameter and 32 mm width. It is designed for industrial machinery, transmissions and heavy-duty mechanical systems.
The bearing is associated with T4DB180 and can be supplied for industrial replacement, distribution and OEM applications.
Key Features
Single-row tapered roller bearing
180 mm bore
240 mm outside diameter
32 mm width
Separable cone and cup construction
Suitable for heavy industrial equipment
Technical Specifications
| Designation | JP18049/10 |
|---|---|
| Related Designation | T4DB180 |
| Bore Diameter | 180 mm |
| Outside Diameter | 240 mm |
| Width | 32 mm |
| Reference Weight | Approx. 3.62 kg |
Applications
Applications include industrial transmissions, gearboxes, reduction systems, heavy machinery and mechanical drive equipment.
Related Models
| Model | d | D | T | Related Model |
|---|---|---|---|---|
| JP16049/10 | 160 | 220 | 32 | T4DB160 |
| JP18049/10 | 180 | 240 | 32 | T4DB180 |
| JP20049/10 | 200 | 270 | 37 | T4DB200 |
| JP24049/10 | 240 | 320 | 42 | T4DB240 |
Service & OEM Support
DBS Bearing offers OEM production, private label service, customized packaging, laser marking and bulk bearing supply.
FAQ
What are the dimensions of JP18049/10?
The dimensions are 180 × 240 × 32 mm.
What is the related T4DB designation?
The associated designation is T4DB180.
Is JP18049/10 suitable for heavy machinery?
Yes. Its size and tapered roller design make it suitable for many industrial and heavy-duty applications.
Request a Quote
Contact DBS Bearing for JP18049/10 quotation and availability.
