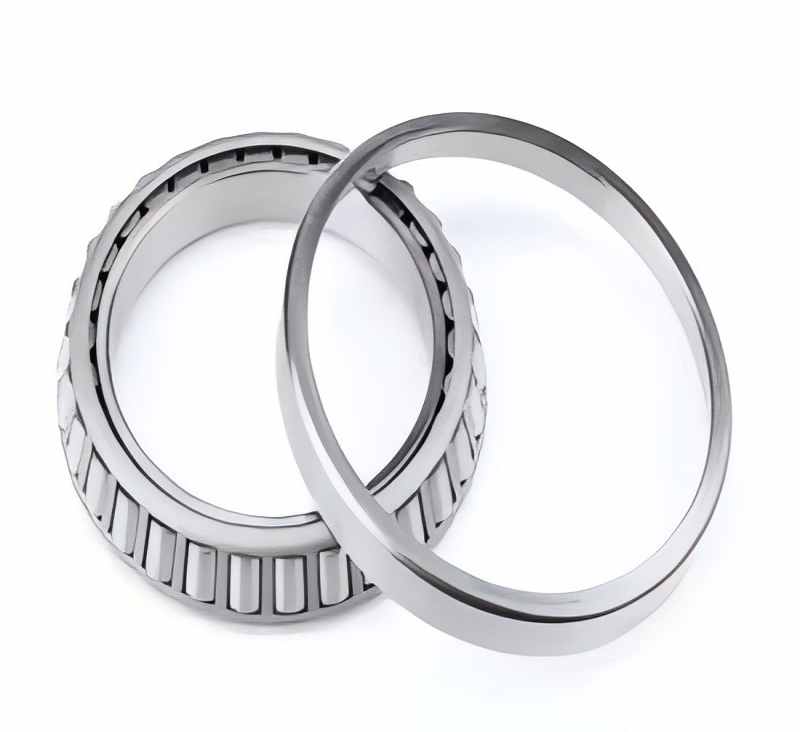

JP16049/10 Tapered Roller Bearing
JP16049/10 is a single-row tapered roller bearing with a 160 mm bore, 220 mm outside diameter and 32 mm width. It is intended for industrial machinery, transmissions and other rotating equipment where combined radial and axial load support is required.
The bearing is associated with T4DB160 and forms part of the larger T4DB bearing family. DBS Bearing can supply JP16049/10 for distributors, maintenance programs and OEM applications.
Key Features
Single-row tapered roller bearing
160 mm bore diameter
220 mm outside diameter
32 mm width
Separable cone and cup design
Industrial and OEM supply support
Technical Specifications
| Designation | JP16049/10 |
|---|---|
| Related Designation | T4DB160 |
| Bore Diameter | 160 mm |
| Outside Diameter | 220 mm |
| Width | 32 mm |
| Reference Weight | Approx. 3.25 kg |
Applications
JP16049/10 is suitable for industrial transmissions, gearboxes, reduction units, heavy machinery and mechanical drive systems.
Related Models
| Model | d | D | T | Related Model |
|---|---|---|---|---|
| JP15049/10 | 150 | 210 | 32 | T4DB150 |
| JP16049/10 | 160 | 220 | 32 | T4DB160 |
| JP18049/10 | 180 | 240 | 32 | T4DB180 |
| JP20049/10 | 200 | 270 | 37 | T4DB200 |
Service & OEM Support
DBS Bearing supports wholesale supply, OEM production, private label packaging, custom marking and customized bearing sourcing.
FAQ
What are the dimensions of JP16049/10?
JP16049/10 measures 160 × 220 × 32 mm.
What is the corresponding T4DB model?
The related designation is T4DB160.
Can DBS supply JP16049/10 in bulk?
Yes. Bulk and OEM supply programs are available.
