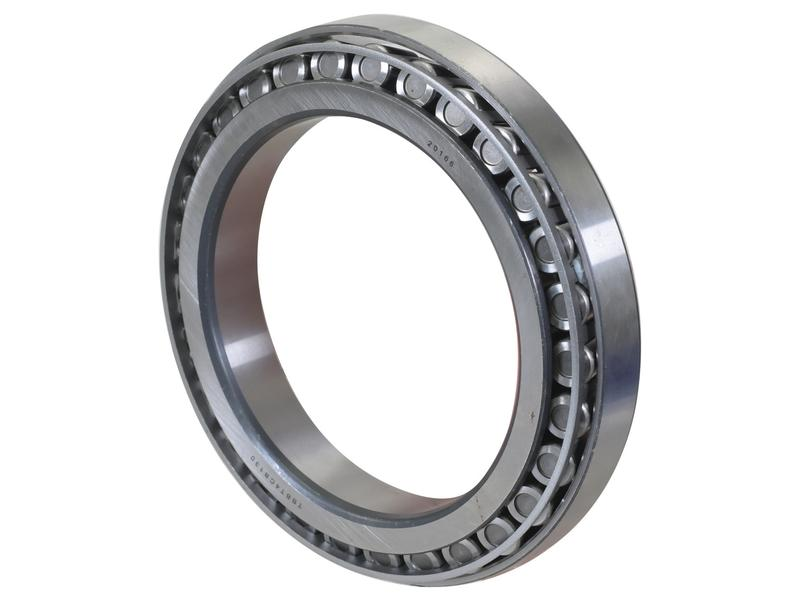

JP15049/10 Tapered Roller Bearing
JP15049/10 is a single-row tapered roller bearing designed for industrial machinery, transmissions and other heavy-duty rotating applications. It has a 150 mm bore, 210 mm outside diameter and 32 mm width.
JP15049/10 is associated with the T4DB150 designation. The tapered roller configuration provides support for combined radial and axial loads, while the separable cone and cup construction allows practical installation and maintenance.
Key Features
Single-row tapered roller bearing
150 mm bore
210 mm outside diameter
32 mm width
T4DB series application
Suitable for industrial and transmission equipment
Technical Specifications
| Designation | JP15049/10 |
|---|---|
| Related Designation | T4DB150 |
| Bore Diameter (d) | 150 mm |
| Outside Diameter (D) | 210 mm |
| Width (T) | 32 mm |
| Reference Weight | Approx. 3.03 kg |
Applications
JP15049/10 can be used in industrial gearboxes, transmissions, reduction units, heavy machinery and mechanical drive systems.
Related Models
| Model | d | D | T | Related Designation |
|---|---|---|---|---|
| JP15049/10 | 150 | 210 | 32 | T4DB150 |
| T4DB150 | 150 | 210 | 32 | JP15049/10 |
| JP16049/10 | 160 | 220 | 32 | T4DB160 |
| T4DB160 | 160 | 220 | 32 | JP16049/10 |
Service & OEM Support
DBS Bearing supports bulk orders, OEM production, custom packaging, private label bearing supply and customized marking.
FAQ
What are the dimensions of JP15049/10?
JP15049/10 measures 150 × 210 × 32 mm.
What is the related T4DB designation?
JP15049/10 is associated with T4DB150.
Is JP15049/10 suitable for industrial machinery?
Yes. Its tapered roller design is suitable for many industrial transmission and heavy machinery applications.
Request a Quote
Contact DBS Bearing for JP15049/10 quotation and bulk supply.
