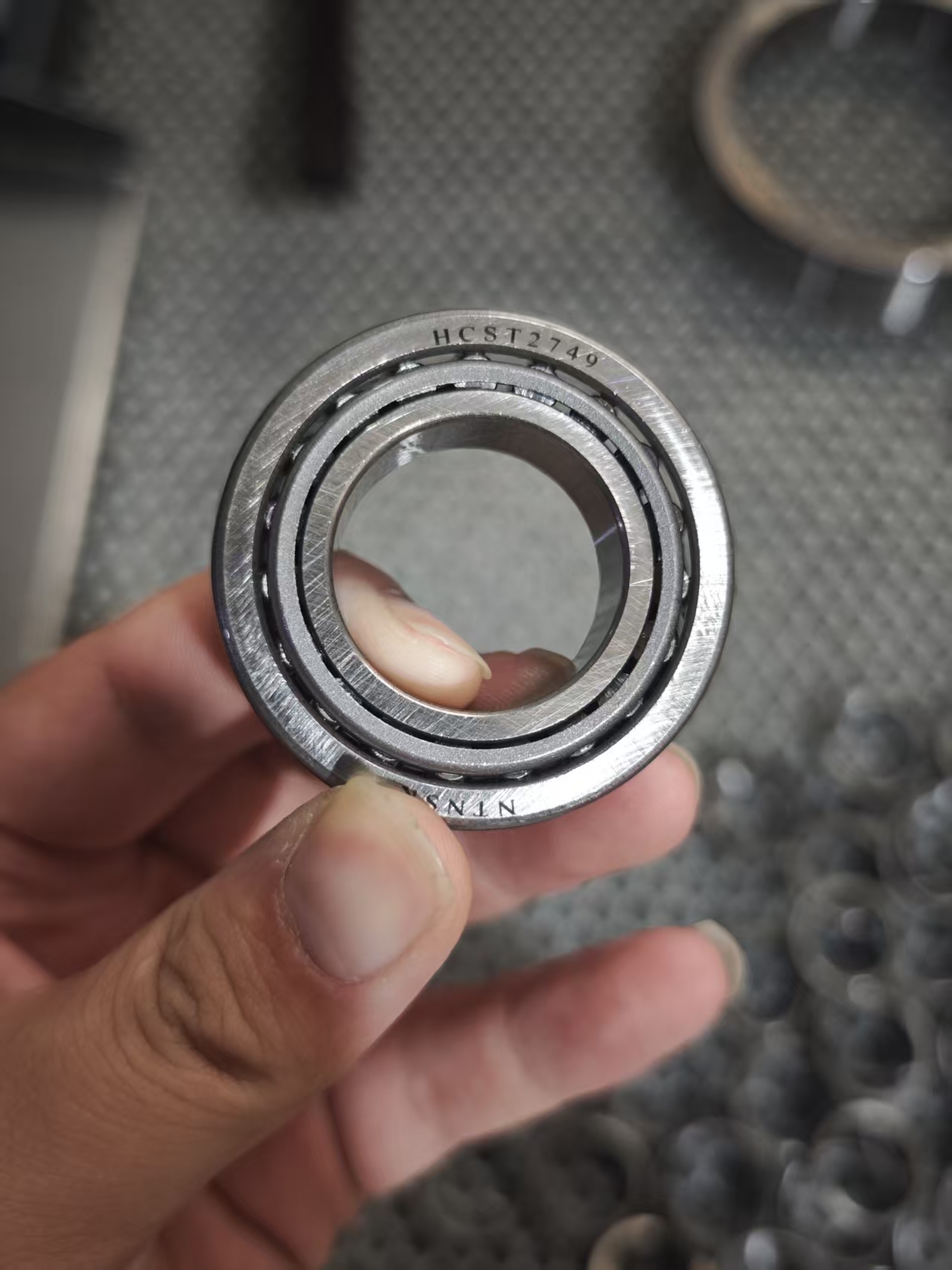

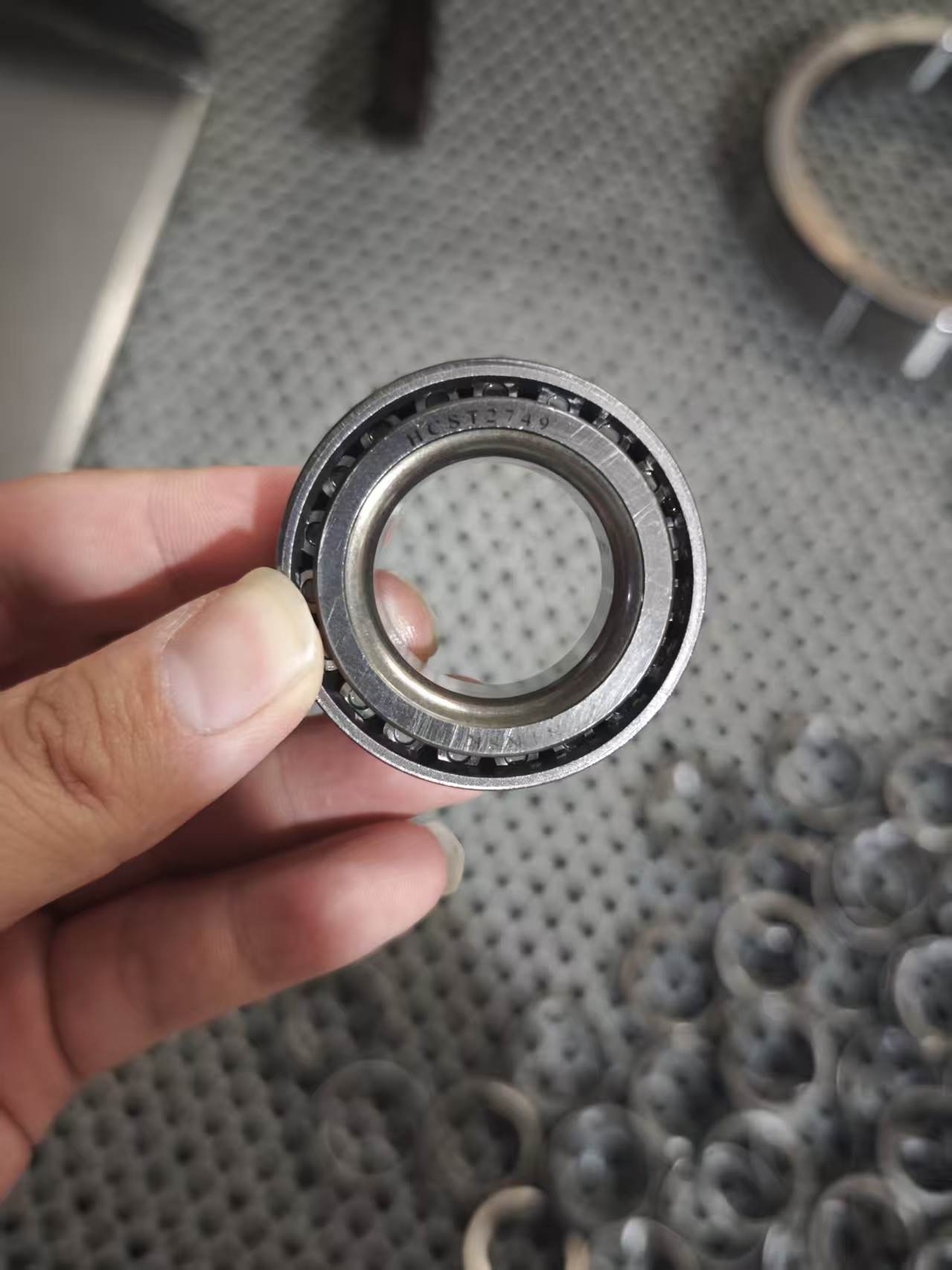

HCST2749 Tapered Roller Bearing
- Compact High Capacity: Delivers high load density within a small dimensional envelope.
- Separable Cup & Cone: Simplifies mounting, alignment, and routine maintenance in factory production lines.
- Micro-Finished Raceways: Reduces rotational drag and wear, prolonging lubricant efficiency.
- Enterprise QA Control: 100% inspected for dimensional accuracy and low rotational noise.
Technical Data
| Technical Parameter | Metric Value |
| Inner Bore Diameter (d) | 27.00 mm |
| Outer Diameter (D) | 49.00 mm |
| Total Width (T) | 15.00 mm |
| Precision Standard | ABEC-1 / P0 |
Product Specifications
| Specification | Details |
| Item Type | Tapered Roller Bearing |
| Model Number | HCST2749 |
| Bearing Design | Single Row Tapered |
| Material | Premium GCr15 High-Carbon Chromium Steel |
| Cage Material | Stamped Steel |
Product Introduction
The HCST2749 is a precision compact tapered roller bearing engineered to handle high radial and thrust load combinations in space-restricted assemblies. Featuring exact dimensions of 27 x 49 x 15 mm, this bearing is widely utilized in motorcycle steering columns, light automotive gearboxes, and precision auxiliary drives. Manufactured in our automated production facility using high-purity GCr15 bearing steel, the HCST2749 features precision-ground raceways and micro-finished rollers to ensure low friction, reduced operating temperatures, and extended service life under frequent vibration and direction changes.
Applications
Motorcycle steering stems and chassis pivot points.
Light utility vehicle gearboxes and steering boxes.
Compact industrial speed reducers and power equipment.
FAQ
Q: Is the HCST2749 supplied as a set?
A: Yes, it includes both the cone (inner ring with cage and rollers) and the cup (outer ring).
Q: Does it require pre-greasing before installation?
A: Yes, like standard open tapered roller bearings, it is shipped with anti-rust protection and requires appropriate application grease or oil during assembly.
OEM & Custom Service
We support international distributors with custom laser etching, custom branded box packaging, and flexible volume supply programs tailored for aftermarket sales.
Packing & Delivery
Coated in heavy-duty anti-rust oil, wrapped in sealed polymer VCI packaging, and packed in reinforced master cartons palletized for safe export transit.
