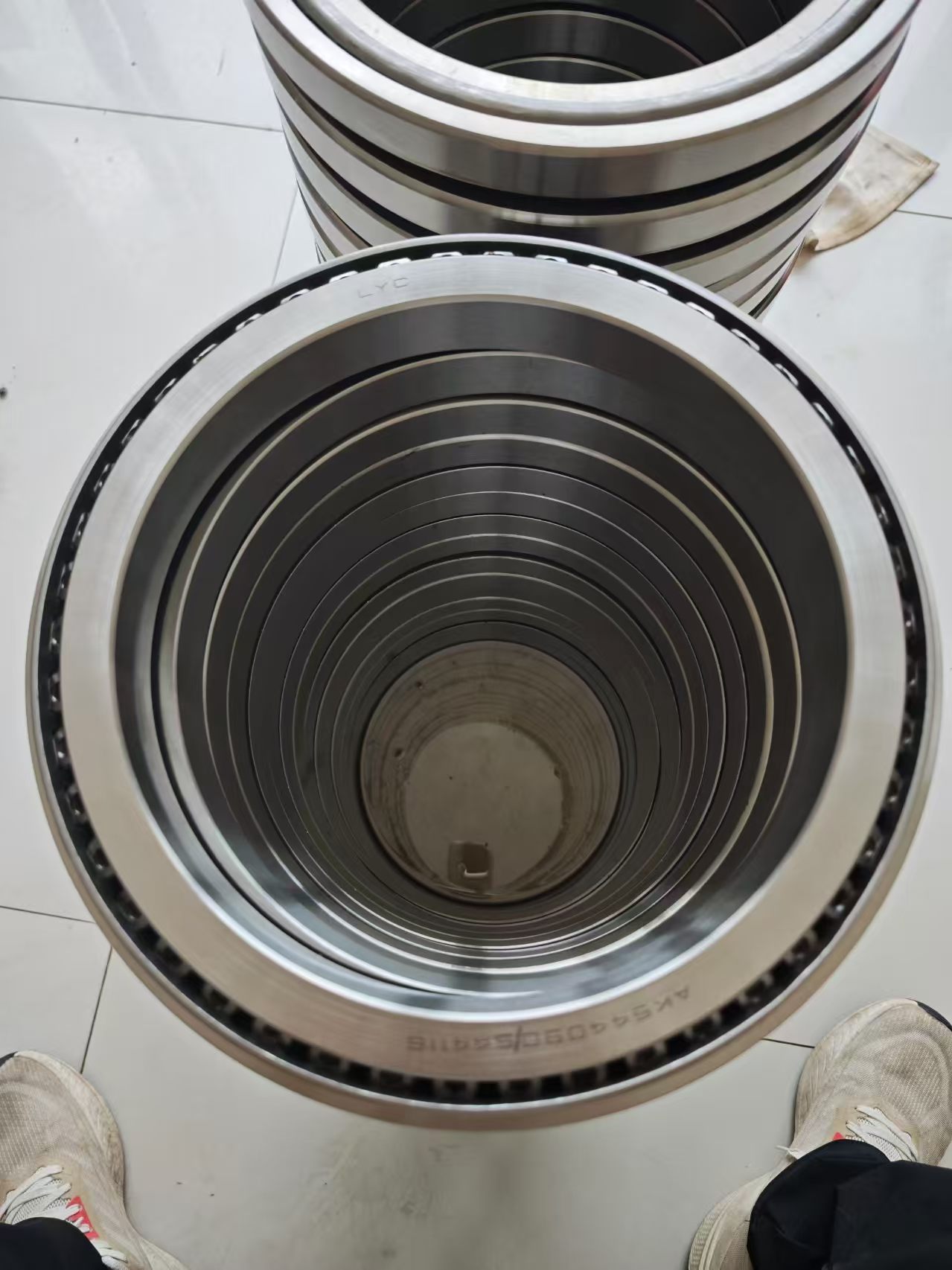

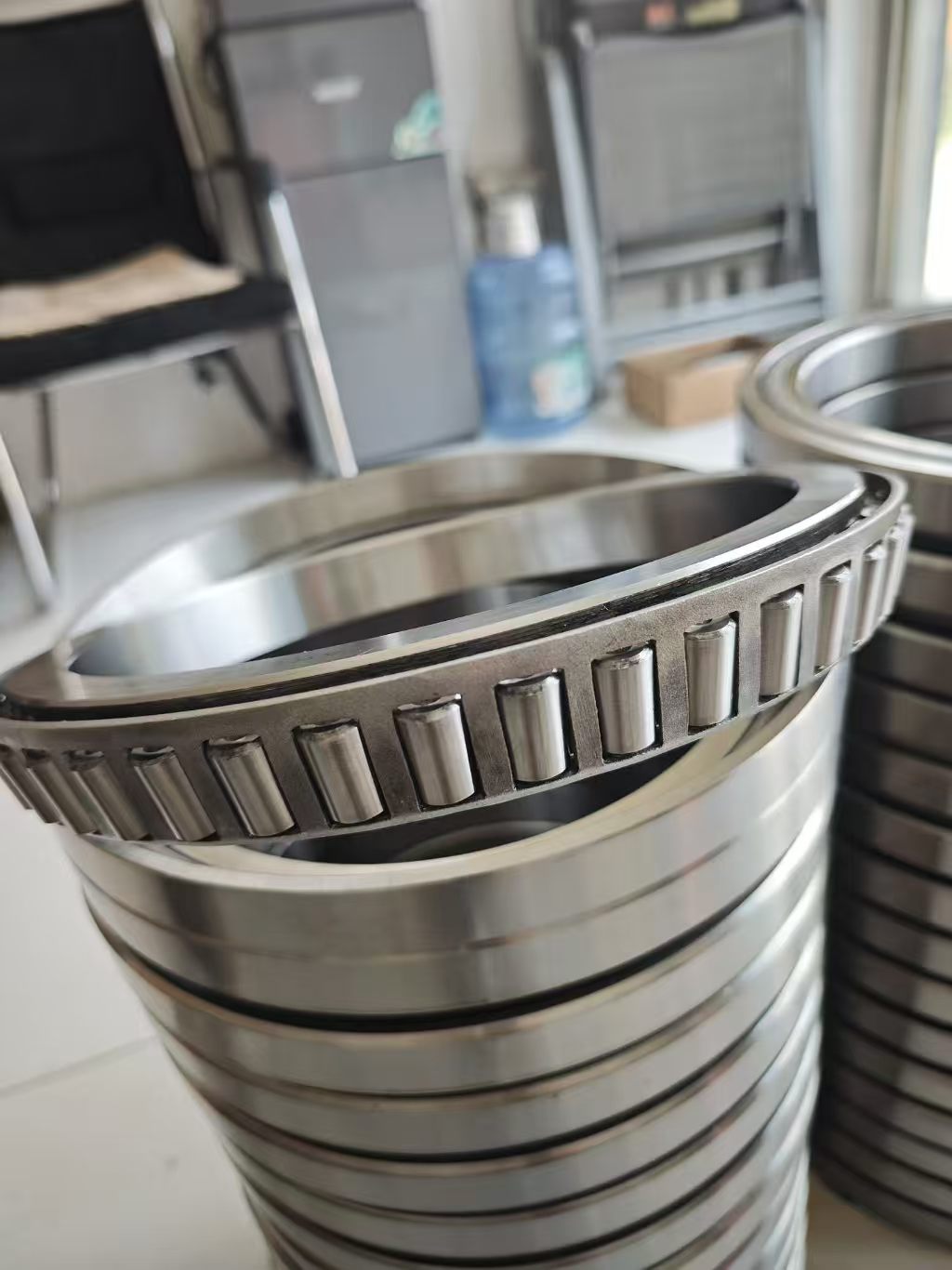

AK544090/116 Heavy-Duty Imperial Tapered Roller Bearing

Extreme Load Capacity: Engineered specifically to endure the colossal shock loads present in heavy infrastructure equipment.
Crown-Profiled Rollers: Micro-engineered roller profiles distribute high-stress loads evenly, extending service life in harsh environments.
Case-Hardened Toughness: Features a hard, wear-resistant raceway exterior with a tough, crack-resistant steel core.
Enterprise Certification: 100% factory inspected via ultrasonic and magnetic particle testing to ensure zero subsurface defects.

Technical Data

Technical Parameter	Metric Value
Inner Bore Diameter (d)	228.600 mm
Outer Diameter (D)	295.275 mm
Total Width (T)	33.338 mm
Precision Standard	Heavy Industrial Grade / P0

Product Specifications

Specification	Details
Item Type	Large Imperial Tapered Roller Bearing
Model Number	AK544090/116 (Cone: AK544090 / Cup: 116)
Bearing Design	Single Row Tapered
Material	Vacuum-Degassed Chrome Alloy Steel
Cage Material	Reinforced Machined Steel

Product Introduction

The AK544090/116 is an extra-large diameter, heavy-duty imperial tapered roller bearing crafted for the most extreme industrial duty cycles. Precisely sized at 228.6 x 295.275 x 33.338 mm, this high-capacity cup and cone set provides immense structural support for massive radial payloads and severe thrust forces. Forged from vacuum-degassed chrome alloy steel, the AK544090/116 features crowned rollers that perfectly align under heavy torque, eliminating destructive edge pinching. Through strict enterprise quality control, this bearing guarantees prolonged fatigue life for large-scale mining equipment, steel manufacturing infrastructure, and heavy commercial drivetrains.

Applications

Large-scale mining crushers and heavy off-highway trucks.
Steel mill rolling equipment and rotary kilns.
Heavy-duty marine gearboxes and propulsion shafts.

FAQ

Q: Does the 'AK' prefix indicate a specific modification?
A: Yes, 'AK' and similar prefixes generally denote specific OEM modifications or internal geometry optimizations (like specialized radii or cage designs) tailored for high-stress applications.
Q: Are material test certificates available for bulk orders?
A: Absolutely. We provide comprehensive Certificates of Analysis (COA) detailing material composition and dimensional accuracy with every bulk shipment.

OEM & Custom Service

We partner directly with heavy equipment OEMs to supply specialized anti-corrosion surface treatments, heavy-duty custom packaging, and guaranteed volume fulfillment for aftermarket rebuild programs.

Packing & Delivery

Bearings are heavily coated with industrial-grade rust inhibitors, sealed in heavy-gauge VCI polymer barrier bags, and packed into reinforced wooden export crates designed to withstand rough port handling.
