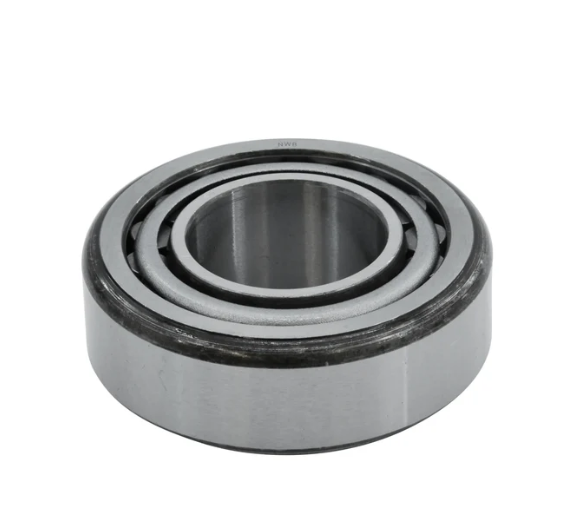

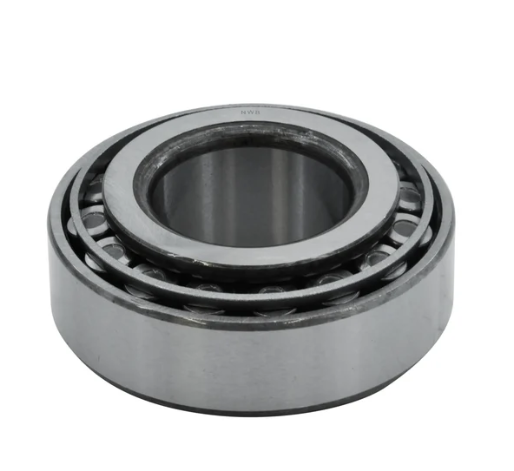

SET1119 Imperial Tapered Roller Bearing 38.1x79.375x29.37mm

Compact High-Load Design: Maximizes load-carrying capacity within a restricted radial cross-section.
Low Friction Operation: Finely honed raceways and optimized roller profiles ensure low operating temperatures even at high rotational speeds.
Separable Components: The cone (3490) and cup (3420) can be installed individually, simplifying assembly in deep housings.
Case-Hardened Core: Provides excellent resistance to shock loads and prevents raceway spalling under heavy acceleration.

Technical Data

Technical Parameter	Metric Value
Inner Bore Diameter (d)	38.100 mm
Outer Diameter (D)	79.375 mm
Total Width (T)	29.370 mm
Precision Standard	ABEC-1 / ISO P0

Product Specifications

Specification	Details
Item Type	Imperial Tapered Roller Bearing (Single Row)
Model Number	SET1119
Material	Top-Tier GCr15 Bearing Steel
Cage Material	Stamped Steel
Design Feature	High-Speed Compact Profile

Product Introduction

The SET1119 is a compact yet highly resilient imperial tapered roller bearing designed for automotive and mid-sized industrial applications. Featuring a 38.1 mm (1.5-inch) inner bore and a 79.375 mm outer diameter, this set combines the 3490 cone and the 3420 cup to deliver exceptional performance in tight housing envelopes. Manufactured from high-grade GCr15 chromium steel, it is engineered to sustain high-speed rotations and moderate-to-heavy radial loads, making it a standard replacement part for automotive differentials, transaxles, and precision industrial machinery.

Applications

Automotive and light truck differential pinions.
Manual transmissions and transfer cases.
Agricultural PTO (Power Take-Off) drives and small gear reducers.

FAQ

Q: Is the SET1119 suitable for high-speed differential applications?
A: Yes, its precise roller alignment and low-friction cage design make it ideal for the high RPMs found in automotive pinion shafts.
Q: Can you supply this model in bulk without individual boxes?
A: Absolutely, we offer bulk industrial packaging (nested in tubes or trays) for OEM assembly lines to reduce waste and cost.

OEM & Custom Service

Customization options include private label box printing, specific oil/grease preservatives for long-term storage, and custom clearance modifications.

Packing & Delivery

Individually wrapped in rust-preventative VCI film, boxed, and consolidated in sturdy master cartons strapped to fumigated wooden pallets.
