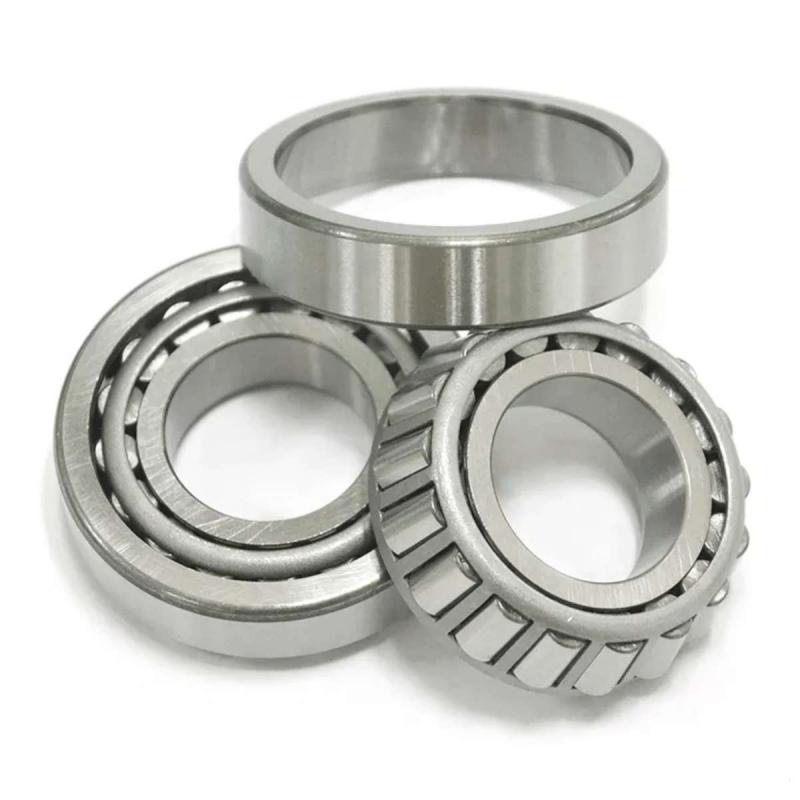

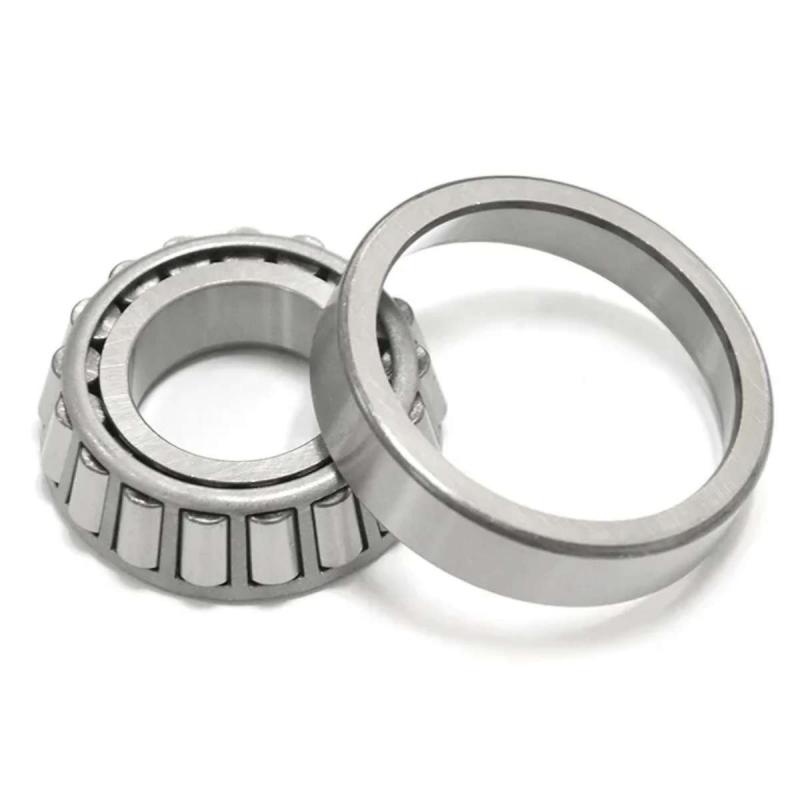

9285/20 Tapered Roller Bearing
The 9285/20 tapered roller bearing features a 76.2 mm bore, 161.93 mm outside diameter and 49.21 mm overall width. It is designed for mechanical applications requiring combined radial and axial load support.
With a reference weight of approximately 4.24 kg, 9285/20 is suitable for heavy-duty automotive, industrial and replacement bearing applications where the specified dimensions are required.
Key Features
Tapered roller bearing assembly
76.2 mm bore diameter
161.93 mm outside diameter
49.21 mm overall width
Approx. 4.24 kg reference weight
Suitable for heavy-duty applications
OEM and aftermarket supply support
Technical Specifications
| Product Type | Tapered Roller Bearing |
|---|---|
| Bearing Designation | 9285/20 |
| Bore Diameter | 76.2 mm |
| Outside Diameter | 161.93 mm |
| Overall Width | 49.21 mm |
| Reference Weight | Approx. 4.24 kg |
Applications
9285/20 can be used in heavy-duty automotive equipment, industrial machinery, wheel-end systems and replacement bearing applications.
Product Advantages
Large outside diameter
Suitable for combined radial and axial loads
Designed for demanding mechanical applications
Available for OEM and aftermarket supply
Related Models
| Model | Bore | Outside Diameter | Width |
|---|---|---|---|
| 9285/20 | 76.2 mm | 161.93 mm | 49.21 mm |
Service & OEM Support
DBS Bearing supports OEM production, bulk orders, customized packaging, private labeling and inspection services.
FAQ
What type of bearing is 9285/20?
9285/20 is a tapered roller bearing assembly.
What are the dimensions?
76.2 mm bore, 161.93 mm outside diameter and 49.21 mm overall width.
What is the reference weight?
Approximately 4.24 kg.
Can DBS supply this bearing for OEM projects?
Yes. OEM and wholesale supply are available.
