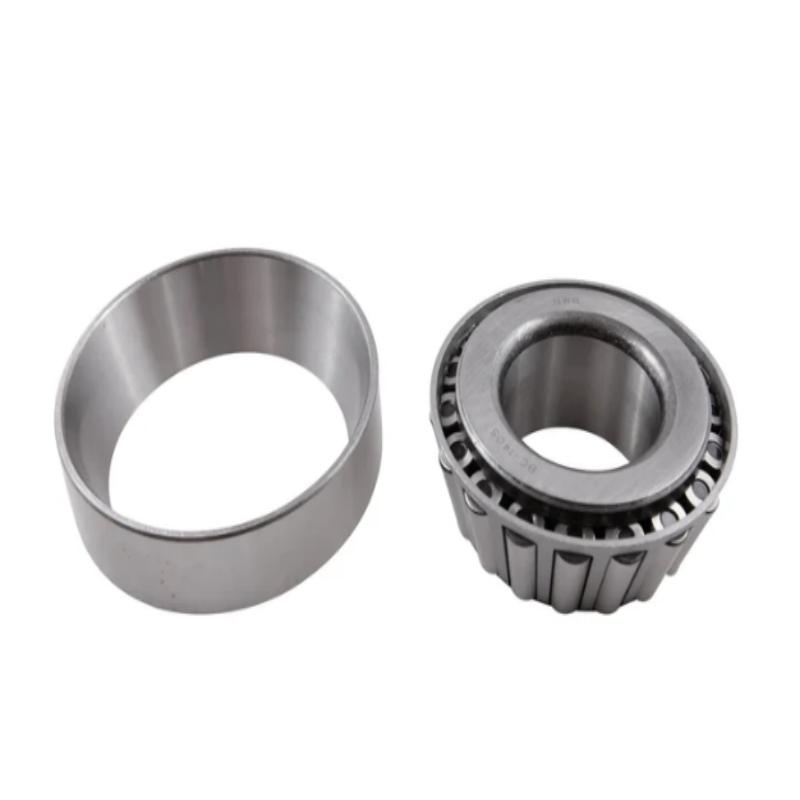

807046/807010 Imperial Tapered Roller Bearing 50.8x104.775x36.513mm

Standard 2-Inch Shaft Fitment: Precision-ground 50.8mm bore fits standard 2.000 in shafts perfectly without requiring adapter sleeves.
High Wall Thickness: Thicker inner ring cone provides enhanced resistance against hoop stress and press-fit cracking.
Low Frictional Drag: Optimized roller geometry minimizes torque loss, improving overall drive system efficiency.
Separable Design: Simplifies routine inspection, grease repacking, and end-play adjustment in the field.

Technical Data

Technical Parameter	Metric Value
Inner Bore Diameter (d)	50.800 mm
Outer Diameter (D)	104.775 mm
Total Width (T)	36.513 mm
Precision Standard	ABEC-1 / ISO P0

Product Specifications

Specification	Details
Item Type	Imperial Tapered Roller Bearing (Single Row)
Model Number	807046/807010 (Cone: 807046 / Cup: 807010)
Material	Top-Grade GCr15 Chrome Steel
Cage Design	Reinforced Stamped Steel
Dimensions (Metric)	50.800 mm x 104.775 mm x 36.513 mm

Product Introduction

The 807046/807010 is a heavy-duty imperial tapered roller bearing sharing the same outer cup profile as the 807010 series (104.775 mm OD, 36.513 mm width) but equipped with a 50.8 mm (exactly 2.000 inch) inner bore cone (807046). This structural configuration provides thicker inner ring walls for extra strength under severe shaft deflection. Crafted from high-purity GCr15 chrome steel with precision-ground raceways, this bearing effortlessly handles extreme dynamic radial loads and unidirectional thrust. It is a critical replacement item for heavy vehicle fleet maintenance and industrial drive repair.

Applications

Commercial truck drive axles, rear differentials, and transmission shafts.
Heavy agricultural harvesters, tractors, and tillage equipment.
Mining equipment, industrial crushers, and reduction gear units.

FAQ

Q: What is the main difference between 807046/807010 and 807049/807010?
A: Both use the same outer cup (807010, 104.775mm OD), but the 807046 has a 50.8mm (2.000 in) bore, while the 807049 has a 53.975mm (2.125 in) bore.
Q: Can this model handle heavy reversing impact loads?
A: Yes, its case-hardened alloy structure is specifically built to withstand high torque spikes and shock loads in drive systems.

OEM & Custom Service

B2B services include custom part laser marking, tailored box artwork, barcoding for retail systems, and flexible assembly options based on your market requirements.

Packing & Delivery

Coated with preservative anti-rust oil, wrapped in sealed VCI barrier bags, boxed in individual units, and shipped on fumigated wooden pallets.
