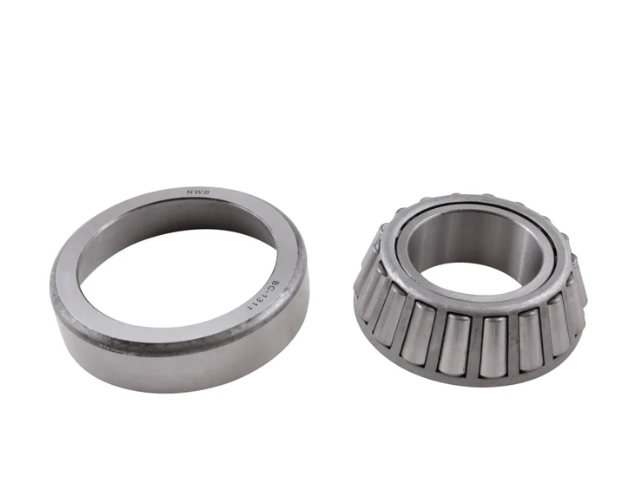

804848/804810 Imperial Tapered Roller Bearing 48.412x95.25x30.163mm

High Rigidity Construction: Wide raceway profile supports high radial loads combined with heavy unidirectional thrust forces.
Crowned Raceway Geometry: Distributes contact stress evenly across the roller length to prevent localized edge loading.
Thermal Endurance: Special heat treatment maintains structural integrity during prolonged high-temperature operation.
Universal Imperial Standard: Built to international ABMA inch tolerances for seamless drop-in fitment.

Technical Data

Technical Parameter	Metric Value
Inner Bore Diameter (d)	48.412 mm
Outer Diameter (D)	95.250 mm
Total Width (T)	30.163 mm
Precision Standard	ABEC-1 / ISO P0

Product Specifications

Specification	Details
Item Type	Imperial Tapered Roller Bearing (Single Row)
Model Number	804848/804810 (Cone: 804848 / Cup: 804810)
Material	Top-Tier GCr15 Chrome Steel
Cage Design	High-Strength Stamped Steel
Dimensions (Metric)	48.412 mm x 95.250 mm x 30.163 mm

Product Introduction

The 804848/804810 is a heavy-duty imperial single-row tapered roller bearing engineered for demanding vehicular and industrial drivelines. Featuring a 48.412 mm (1.906 in) inner bore, 95.25 mm (3.750 in) outer diameter, and a 30.163 mm (1.1875 in) total width, this matched set (Cone: 804848, Cup: 804810) provides high rigidity and dynamic load support. Manufactured from high-purity GCr15 alloy steel with precision-ground contact surfaces, it resists wear and sub-surface fatigue spalling under intense rotational stress, making it a reliable procurement item for automotive spare parts importers and equipment rebuilders.

Applications

Automotive differential pinions, transfer cases, and axle hubs.
Agricultural tractor drive units and heavy tillage implements.
Industrial reducers, winches, and conveyor drive rollers.

FAQ

Q: What are the exact inch measurements for 804848/804810?
A: The bore is 1.906 in (48.412 mm), outer diameter is 3.750 in (95.250 mm), and width is 1.1875 in (30.163 mm).
Q: Can this bearing set be ordered with custom packaging?
A: Yes, we offer complete OEM box designs, custom branding, and specialized batch packaging solutions tailored for your business.

OEM & Custom Service

We provide customized laser marking, private label boxing, customized clearance pre-sets, and long-term rust protection packaging for ocean shipments.

Packing & Delivery

Coated with anti-rust compound, sealed in VCI plastic wrap, individually boxed, and consolidated in master cartons on fumigated export pallets.
