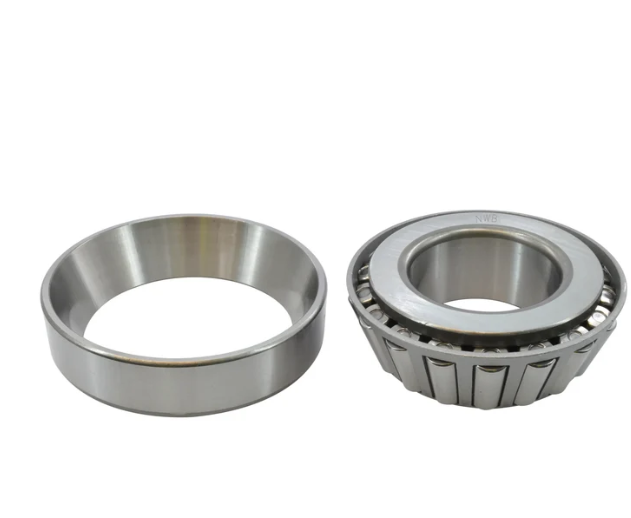

804846/804810 Imperial Tapered Roller Bearing 47.625x95.25x30.163mm
- 1.875-Inch Bore Fitment: Engineered with a thicker inner ring wall compared to the 804848, providing enhanced resistance against hoop stress on 1.875 in shafts.
- High Rigidity Construction: Wide raceway profile supports immense combined radial and unidirectional thrust forces safely.
- Thermal Endurance: Maintains precise dimensional tolerances even during prolonged high-temperature operations in harsh climates.
- Exact ABMA Compliance: Manufactured to strict international inch tolerances for seamless global replacement.
Technical Data
| Technical Parameter | Metric Value |
| Inner Bore Diameter (d) | 47.625 mm |
| Outer Diameter (D) | 95.250 mm |
| Total Width (T) | 30.163 mm |
| Precision Standard | ABEC-1 / ISO P0 |
Product Specifications
| Specification | Details |
| Item Type | Imperial Tapered Roller Bearing (Single Row) |
| Model Number | 804846/804810 (Cone: 804846 / Cup: 804810) |
| Material | High-Purity GCr15 Chrome Steel |
| Cage Design | High-Strength Stamped Steel |
| Dimensions (Metric) | 47.625 mm x 95.250 mm x 30.163 mm |
Product Introduction
The 804846/804810 is a heavy-duty imperial single-row tapered roller bearing built to endure intense dynamic loads in mechanical drivetrains. Featuring a 47.625 mm (1.875 in) inner bore, 95.25 mm (3.750 in) outer diameter, and a robust 30.163 mm (1.1875 in) width, this matched set (Cone: 804846, Cup: 804810) delivers exceptional structural rigidity. Forged from high-purity GCr15 chromium steel, it minimizes wear under severe torque. Highly sought after by aftermarket distributors in Russia, Central Asia, South America, and Africa, this bearing is an essential replacement component for commercial vehicle differentials and heavy industrial gearboxes.
Applications
Commercial vehicle differential pinions and rear axle hubs.
Heavy agricultural tractor gearboxes and transfer cases.
Industrial winches, crushers, and reduction drive units.
FAQ
Q: What is the main difference between 804846/804810 and 804848/804810?
A: Both sets utilize the same 804810 outer cup (95.25mm OD). However, the 804846 cone has a 47.625mm (1.875 in) bore, while the 804848 cone has a slightly larger 48.412mm (1.906 in) bore.
Q: How do you ensure the quality of each bearing set?
A: At Linqing Xinshengdi Bearing Co., Ltd., our operations focus entirely on manual assembly rather than automated production lines, ensuring that every single bearing is meticulously hand-inspected before packaging.
OEM & Custom Service
We provide highly flexible B2B services, including custom laser marking, tailored internal clearance matching, and customized branding designed specifically for robust export to emerging markets.
Packing & Delivery
Thoroughly coated with anti-rust compound, sealed in VCI plastic wrap, individually boxed, and consolidated in master cartons on export-certified wooden pallets.
