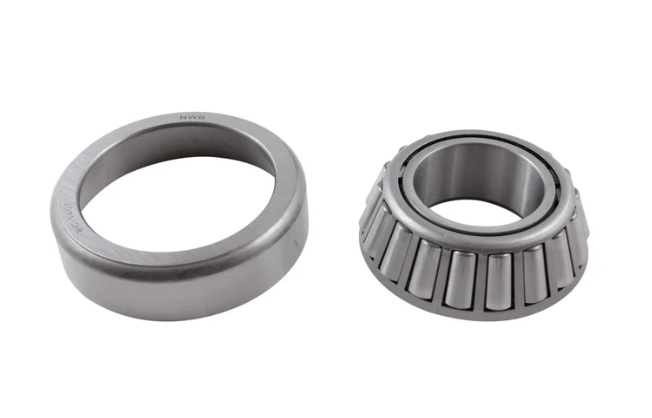

803149/803110 Imperial Tapered Roller Bearing 44.49x88.9x30.163mm
- Optimized Load Distribution: Crowned roller geometry prevents localized edge loading and extends the fatigue life of the raceways.
- Separable Design: The independent cone and cup configuration allows mechanics to quickly set precise end-play during equipment overhauls.
- Low Frictional Torque: Micro-polished contact surfaces minimize heat generation and rotational drag, protecting drive lubricants.
- Impact Resilience: Deeply case-hardened steel absorbs sudden shock loads common in off-road and agricultural use.
Technical Data
| Technical Parameter | Metric Value |
| Inner Bore Diameter (d) | 44.490 mm |
| Outer Diameter (D) | 88.900 mm |
| Total Width (T) | 30.163 mm |
| Precision Standard | ISO P0 / ABEC-1 |
Product Specifications
| Specification | Details |
| Item Type | Imperial Tapered Roller Bearing (Single Row) |
| Model Number | 803149/803110 (Cone: 803149 / Cup: 803110) |
| Material | Top-Tier GCr15 Chrome Steel |
| Cage Design | Stamped Structural Steel |
| Dimensions (Metric) | 44.490 mm x 88.900 mm x 30.163 mm |
Product Introduction
The 803149/803110 is a dependable inch-series tapered roller bearing engineered to provide highly efficient radial and thrust load support in space-constrained mechanical environments. With dimensions of 44.49 mm (1.7515 in) bore, 88.9 mm (3.500 in) outer diameter, and a 30.163 mm (1.1875 in) total width, this matched assembly (Cone: 803149, Cup: 803110) guarantees exact shaft alignment under continuous torque. Manufactured from vacuum-degassed GCr15 bearing steel and carefully hand-assembled, it offers exceptional wear resistance and is highly recommended for harsh operational environments across global agricultural and automotive sectors.
Applications
Automotive wheel hubs, drive axles, and transfer cases.
Agricultural machinery gearboxes, harvesters, and implement wheels.
General industrial speed reducers and electric motor drives.
FAQ
Q: Are these bearings suitable for extreme cold climates?
A: Yes, with the correct application of specialized cold-weather grease, the high-purity steel structure performs excellently in harsh environments like the Russian winter.
Q: Can we order these with our own branded boxes?
A: Absolutely. We offer fully customizable private-label packaging to help you establish your brand presence in your local market.
OEM & Custom Service
Our assembly workshops offer comprehensive B2B customization, from laser engraving of proprietary part codes to specifically tailored long-term rust protection packaging for ocean freight.
Packing & Delivery
Protected with high-grade rust inhibitor oil, sealed in VCI barrier bags, boxed in your choice of neutral or custom cartons, and secured onto export pallets.
