67512 Flanged Bearing | DBS Bearing
67512 Flanged Bearing
Product Overview

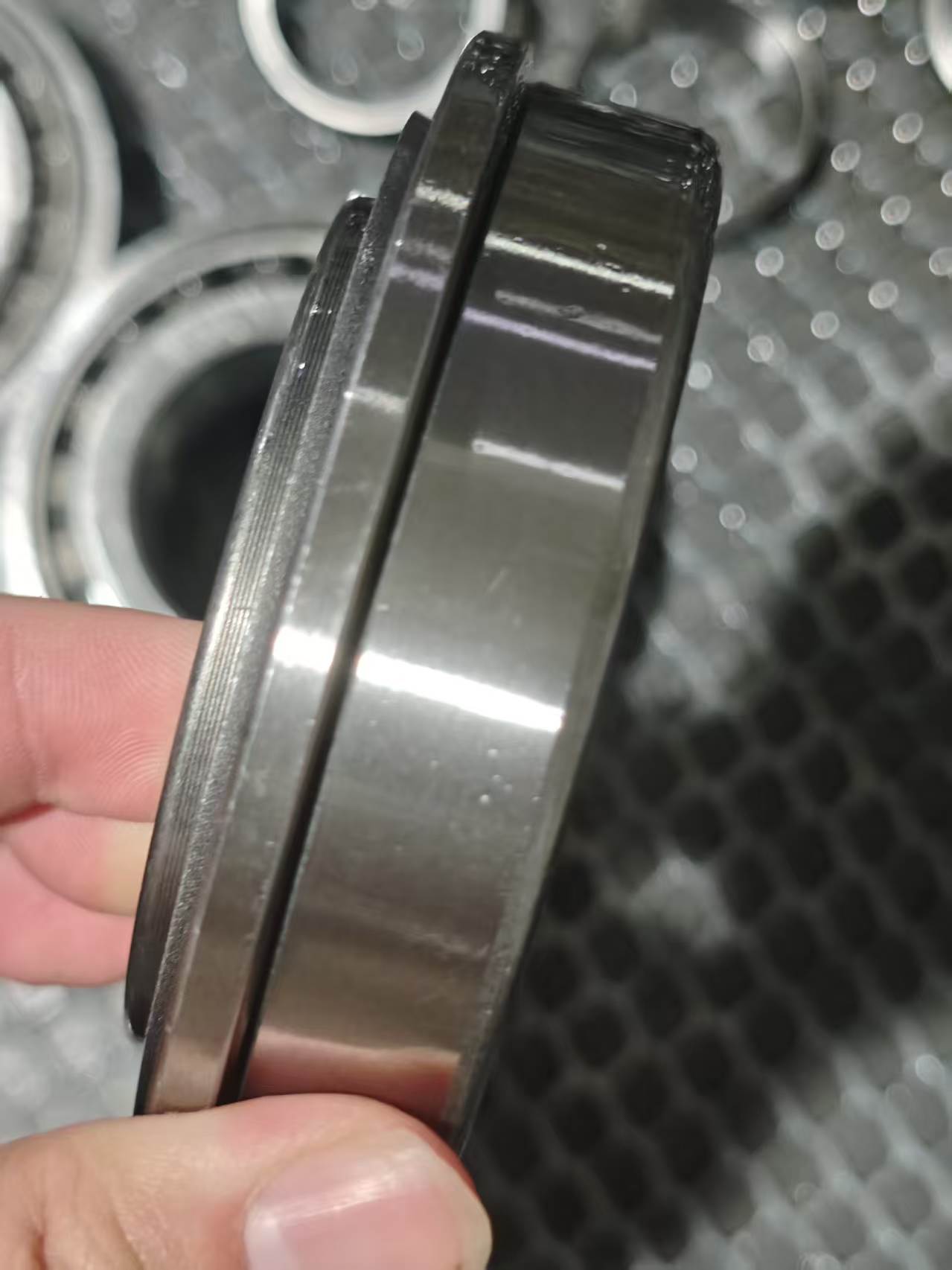

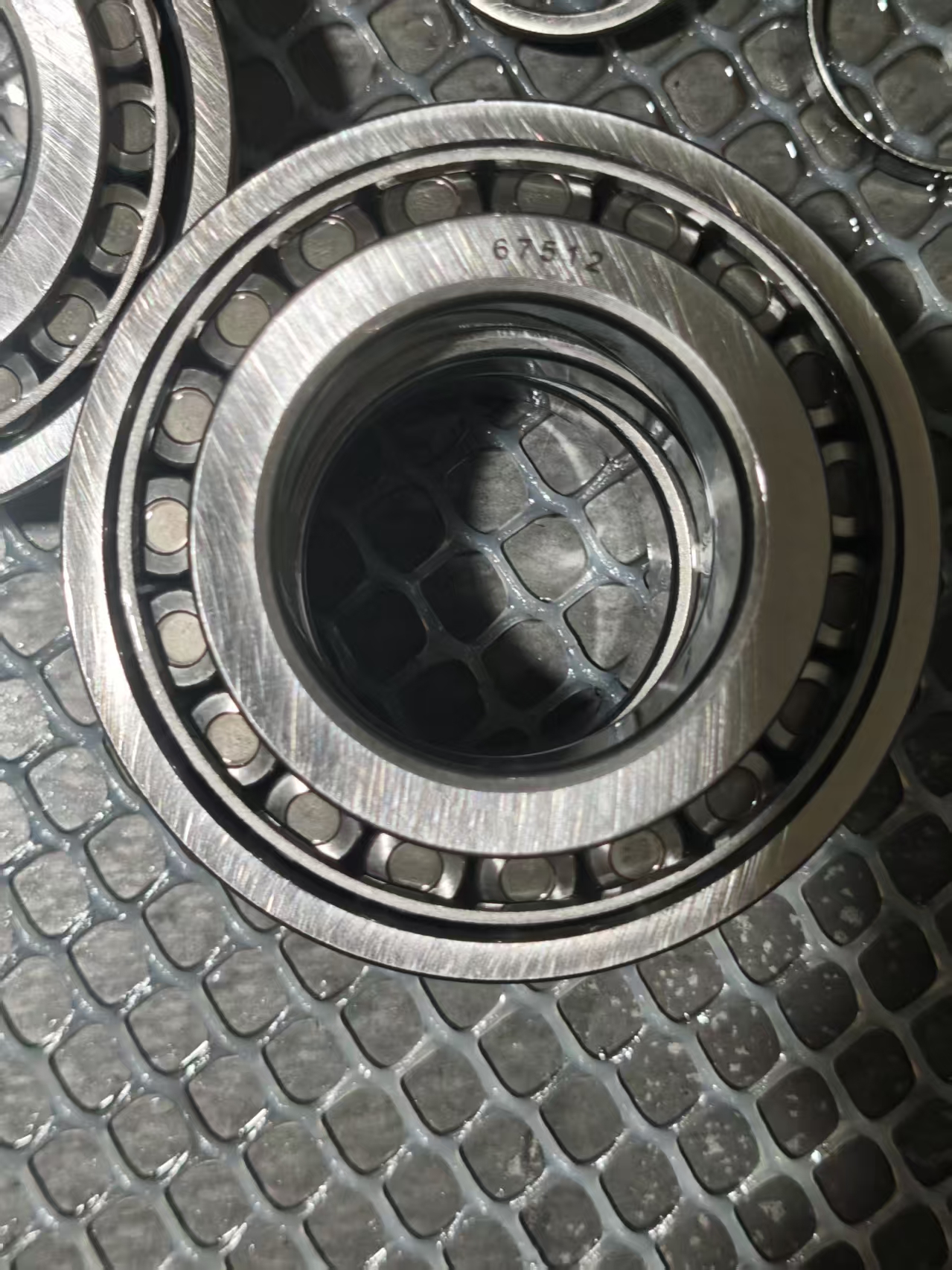

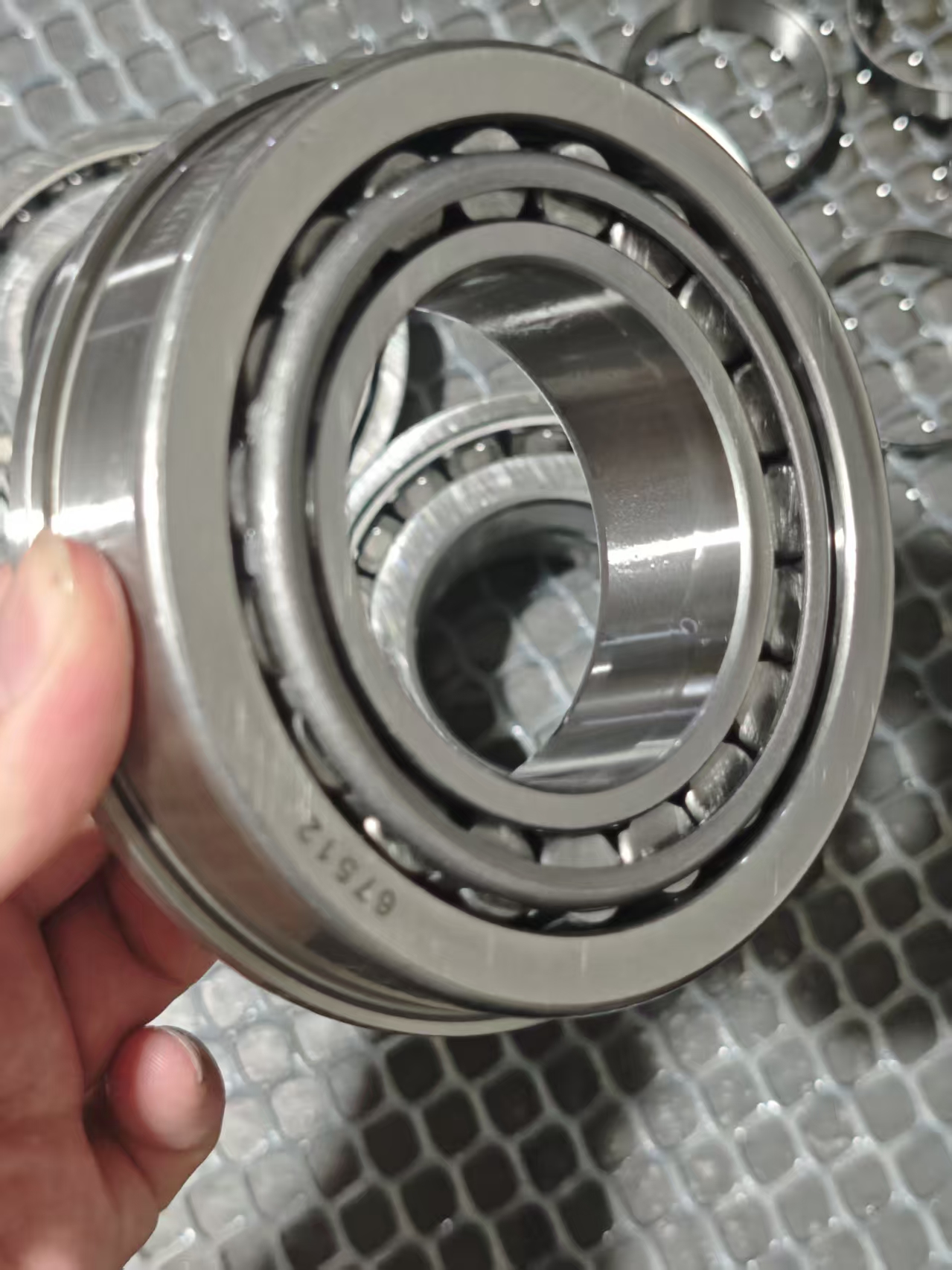

The 67512 is a flanged bearing specified with a 60 mm bore, 110 mm outside diameter and 28 mm height. The flange provides a mounting or locating feature, while its exact flange geometry and internal rolling-element design should be confirmed against the drawing.
Key Features
Flanged configuration for applications requiring a locating or mounting feature.
Exact flange dimensions and internal construction are drawing-dependent.
Nominal bore: 60 mm; outside diameter: 110 mm.
Overall width/height: 28 mm; reference mass: 1.54 kg.
OEM marking, packaging and export supply options.
Technical Specifications
| Designation | 67512 |
|---|---|
| Product Category | Flanged Bearing |
| Bore Diameter (d) | 60 mm |
| Outside Diameter (D) | 110 mm |
| Overall Width / Height | 28 mm |
| Reference Weight | 1.54 kg |
| Load Ratings / Speed Limits | Confirm by technical drawing or approved datasheet |
Applications
Flange-located rotating assemblies, custom equipment, replacement bearing projects and OEM machinery, subject to dimensional and design verification.
Bearing Design
A flange may assist axial location or simplify mounting in a compatible housing. Flange outside diameter, flange thickness, bolt pattern (if any), rolling-element type and load ratings are not established by the supplied table.
Related Models
No verified equivalent designation was supplied for this model. Share the original drawing or bearing sample to evaluate possible alternatives.
| Model | Bore (mm) | OD (mm) | Width (mm) |
|---|---|---|---|
| 67512 | 60 | 110 | 28 |
Service & OEM Support
DBS Bearing supports bearing assembly and sourcing, dimensional inspection, OEM/private-label marking, neutral or branded packaging, and export order coordination. Drawing-based evaluation and application-specific checks can be discussed before order confirmation. Inspection documentation and any special test requirements should be agreed in advance.
FAQ
What are the dimensions of 67512?
The supplied nominal dimensions are 60 × 110 × 28 mm (bore × outside diameter × overall width/height).
How much does 67512 weigh?
The supplied reference weight is approximately 1.54 kg; actual shipping weight may vary with packaging and configuration.
Can 67512 be replaced by a related designation?
Matching dimensions or a shared product group alone do not prove interchangeability. Please confirm the drawing, tolerances, internal design and application.
Can DBS Bearing provide OEM marking and packaging?
Yes. Customized marking, neutral boxes, customer-brand packaging and export packing can be discussed for the order.
What information is needed for a quotation?
Please provide the required quantity, delivery destination, drawing or original part number, and any inspection or packaging requirements.
Request a Quote
Contact DBS Bearing with your quantity and technical requirements for 67512 pricing, lead time, packaging options and drawing confirmation.
