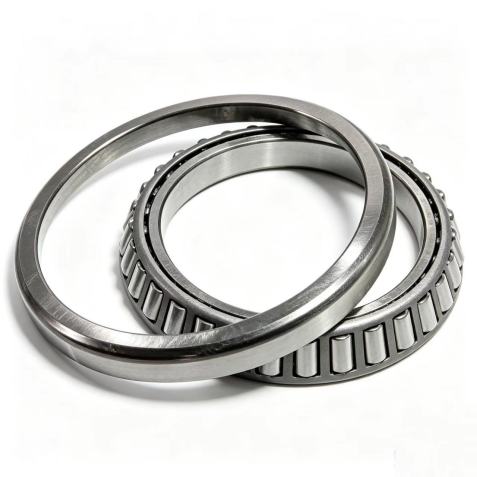

548866A Tapered Roller Bearing

The 548866A tapered roller bearing is a precision-sized tapered roller bearing designed for mechanical applications requiring combined radial and axial load support. It features a 109.54 mm bore, 158.75 mm outside diameter and 23.02 mm overall width.

Its compact axial width makes the 548866A suitable for applications where installation space and bearing geometry need to be carefully matched. DBS Bearing supports replacement, aftermarket and OEM sourcing requirements.

Key Features

Tapered roller bearing construction
109.54 mm bore diameter
158.75 mm outside diameter
23.02 mm overall width
Designed for radial and axial load support
Suitable for automotive and industrial applications
OEM and customized supply available

Technical Specifications

Product Type	Tapered Roller Bearing
Bearing Designation	548866A
Bore Diameter	109.54 mm
Outside Diameter	158.75 mm
Overall Width	23.02 mm
Reference Weight	Approx. 1.31 kg

Applications

548866A can be used in automotive equipment, wheel-end systems, industrial machinery and other mechanical applications requiring a tapered roller bearing with the specified dimensions.

Product Advantages

Compact overall width
Suitable for combined loading
Useful for replacement bearing sourcing
Available for OEM and aftermarket supply

Related Models

Model	Bore	Outside Diameter	Width
548866A	109.54 mm	158.75 mm	23.02 mm

Service & OEM Support

DBS Bearing provides OEM and aftermarket tapered roller bearing supply, including bulk orders, customized packaging, private labeling and inspection support.
