Welcome to Linqing Xinshengdi Bearing Co., Ltd.

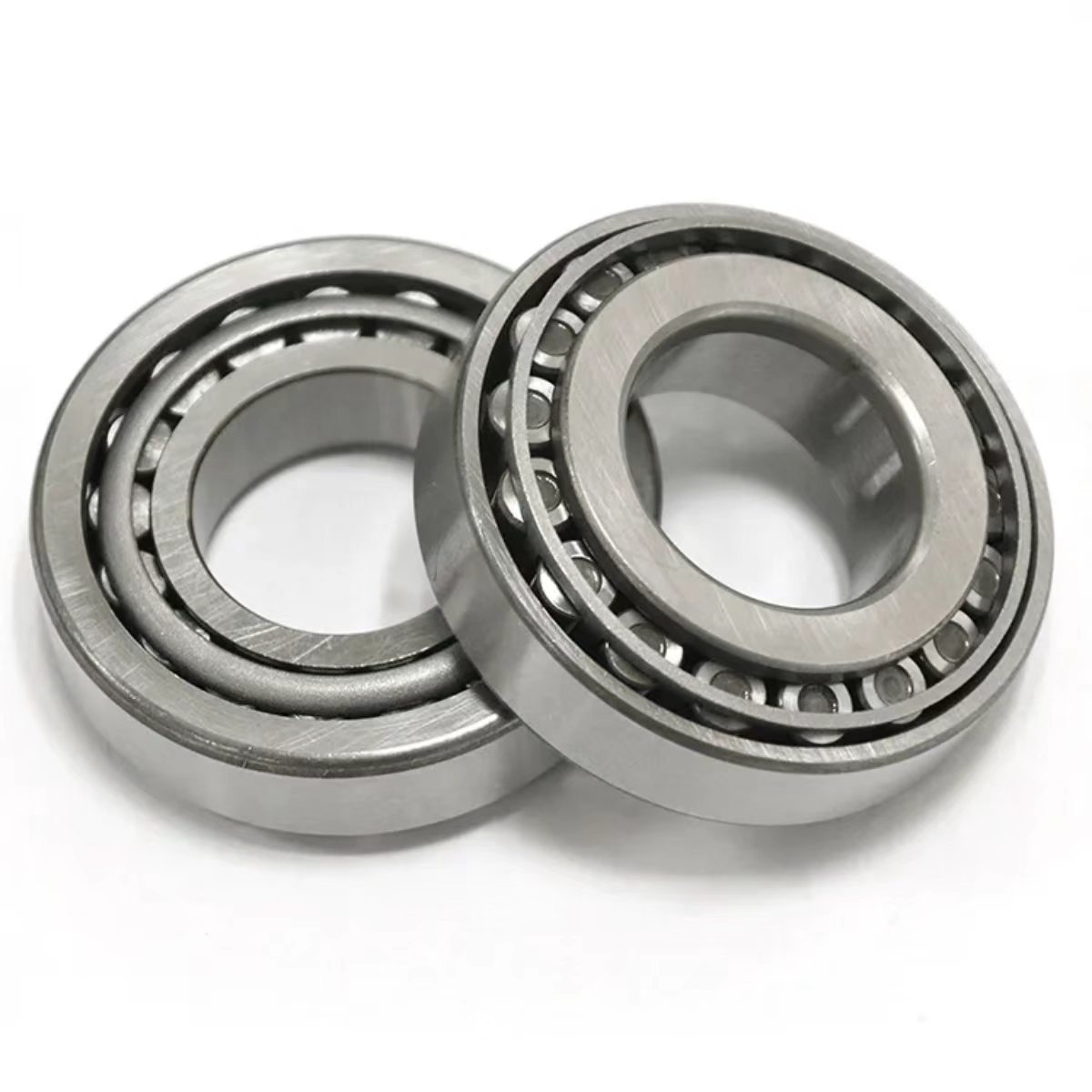

28150/28300 Imperial Tapered Roller Bearing
- Precision 1.5-Inch Bore: Exact fit for standardized shaft journals in automotive and industrial setups.
- Vibration Control: Dynamic balance testing ensures whisper-quiet operation at speed.
- High Wear Resistance: Deep heat treatment prevents premature spalling under dynamic stress.
- Easy Maintenance: Fully separable cup and cone simplify field replacements and routine inspections.
Technical Data
| Technical Parameter | Metric Value |
| Inner Bore Diameter (d) | 38.100 mm |
| Outer Diameter (D) | 76.200 mm |
| Total Width (T) | 20.638 mm |
| Precision Standard | ABEC-1 / P0 |
Product Specifications
| Specification | Details |
| Item Type | Standard Imperial Tapered Roller Bearing |
| Model Number | 28150/28300 (Cone: 28150 / Cup: 28300) |
| Bearing Design | Single Row Tapered |
| Material | Top-Tier Vacuum-Degassed Bearing Steel |
| Cage Material | Stamped Steel |
Product Introduction
The 28150/28300 is a versatile inch-series tapered roller bearing engineered around a 38.1 mm (1.5-inch) inner bore and a 76.2 mm (3-inch) outer diameter. Measuring precisely 38.1 x 76.2 x 20.638 mm, this cup and cone assembly provides balanced structural stability for moderate to high combined radial and thrust loads. Produced in advanced automated grinding facilities using top-tier chrome alloy steel, the 28150/28300 ensures strict alignment control and minimized running drag, making it highly reliable for international auto parts distributors and mechanical OEMs.
Applications
Automotive gearboxes, differentials, and drive axles.
Agricultural machinery PTO shafts and implement hubs.
Light industrial conveyor pulleys and speed reducers.
FAQ
Q: Can the 28150 cone be used with other cups in the 28000 series?
A: Yes, cones and cups within the same standard inch-series family are generally interchangeable, provided housing tolerances match.
Q: What operating temperatures can this bearing withstand?
A: Standard units operate safely from -30°C up to +120°C with standard bearing lubricants.
OEM & Custom Service
Custom B2B solutions including private brand packaging, custom surface finishes, and flexible minimum order quantities (MOQs).
Packing & Delivery
Coated with heavy-duty rust inhibitor, sealed in VCI plastic wrapping, packed into individual branded boxes, and consolidated into export-ready wooden pallets.
