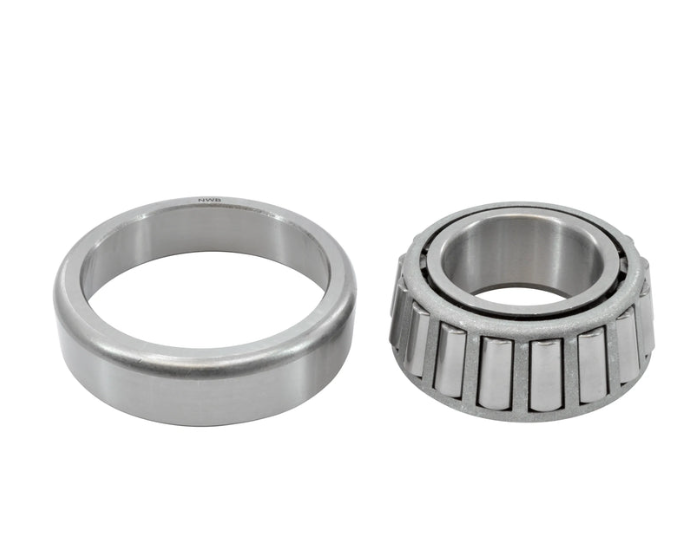

2777/2720 Precision Inch Tapered Roller Bearing

High Rigidity Construction: Resists shaft deflection and maintains precise gear mesh alignment.
Optimized Roller Profiling: Prevents destructive edge stresses, significantly enhancing bearing life.
Separable Design: Outer ring (cup) and inner assembly (cone) mount independently for faster installation.
Low Frictional Torque: Advanced raceway honing delivers energy-efficient rotation.

Technical Data

Technical Parameter	Metric Value
Inner Bore Diameter (d)	38.100 mm
Outer Diameter (D)	76.200 mm
Total Width (T)	23.812 mm
Precision Standard	ABEC-1 / P0

Product Specifications

Specification	Details
Item Type	Precision Imperial Tapered Roller Bearing
Model Number	2777/2720 (Cone: 2777 / Cup: 2720)
Bearing Design	Single Row Tapered
Material	High-Purity GCr15 Chrome Steel
Cage Material	Heavy-Duty Stamped Steel

Product Introduction

The 2777/2720 is a specialized configuration within the standard 2700 inch-series of tapered roller bearings. Sized at 38.1 x 76.2 x 23.812 mm, this specific pairing utilizes the 2777 cone, expertly engineered to provide pinpoint shaft alignment and high rigidity under torque. Manufactured using premium high-carbon chromium steel, it delivers outstanding fatigue resistance and thermal stability. Global B2B mechanical rebuilders and industrial transmission manufacturers rely on the 2777/2720 for continuous, heavy-duty operational uptime.

Applications

Heavy-duty industrial speed reducers and pinions.
Automotive transmission main shafts.
Agricultural combine harvesters and tractor axles.

FAQ

Q: Can this bearing withstand heavy axial thrust forces?
A: Yes, its single-row tapered geometry is inherently designed to manage high unidirectional thrust loads alongside radial forces.
Q: Do you offer material test reports?
A: Yes, comprehensive Certificates of Analysis (COA) are available for all B2B wholesale orders.

OEM & Custom Service

We offer global B2B clients tailored services including custom part laser etching, specific internal radial clearance settings, and private-label packaging options.

Packing & Delivery

Protected with specialized low-viscosity rust preventatives, hermetically sealed in heavy foil, and secured in export master cartons.
