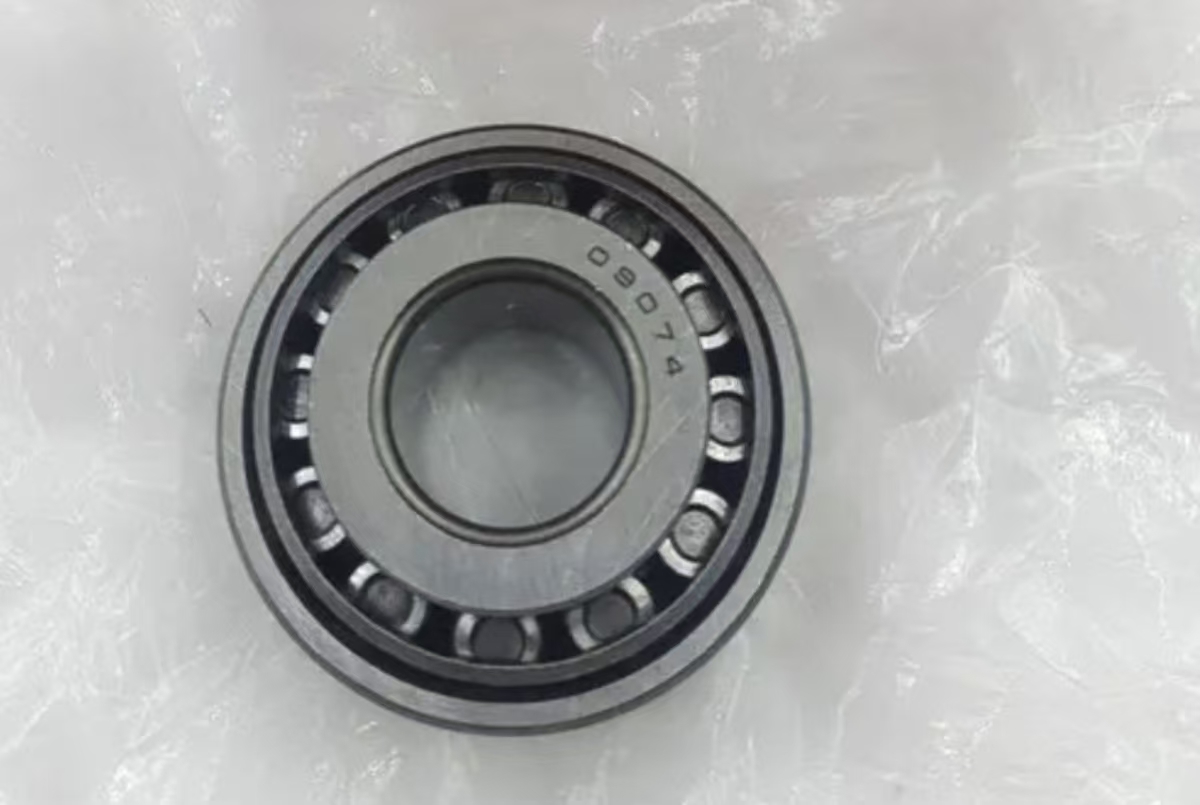

09074/09195 Precision Imperial Tapered Roller Bearing
- Precision 19.05 mm Bore: Perfect fit for standard 3/4-inch shafts across global industrial applications.
- Balanced Width Profile: 19.845 mm width delivers an optimal balance of load capacity and space efficiency.
- Low Noise Operation: Precision ground and super-finished raceways minimize running vibration.
- High Wear Resistance: Deep heat treatment prevents premature spalling under high dynamic stress.
Technical Data
| Technical Parameter | Metric Value |
| Inner Bore Diameter (d) | 19.050 mm |
| Outer Diameter (D) | 49.225 mm |
| Total Width (T) | 19.845 mm |
| Precision Standard | ABEC-1 / P0 |
Product Specifications
| Specification | Details |
| Item Type | Standard Imperial Tapered Roller Bearing |
| Model Number | 09074/09195 (Cone: 09074 / Cup: 09195) |
| Bearing Design | Single Row Tapered |
| Material | Premium GCr15 Chrome Steel |
| Cage Material | Stamped Steel |
Product Introduction
The 09074/09195 is a widely used inch-series tapered roller bearing measuring 19.05 x 49.225 x 19.845 mm. Pairing the 09074 cone with the 09195 cup, this assembly provides high radial rigidity and axial load management in a compact dimensional footprint. Built in our automated production facilities using high-grade GCr15 chrome steel, it undergoes precise heat treatment and raceway honing to deliver quiet, low-vibration operation and extended service life.
Applications
Automotive wheel hubs, steering gears, and light differentials.
Compact industrial speed reducers and electric drive units.
Farm machinery attachments and drive shafts.
FAQ
Q: What is the difference between cone 09067 and cone 09074?
A: Both have a 19.05 mm bore, but they differ slightly in internal cone width and corner chamfer radii to suit different cup pairings.
Q: Can this product be shipped in bulk plastic bags instead of single boxes?
A: Yes, we offer industrial bulk packaging (poly-bagged in industrial boxes) to streamline factory assembly line use.
OEM & Custom Service
Complete B2B customization including custom laser marking, specific grease fill amounts, and custom box printing.
Packing & Delivery
Protected with anti-rust oil, sealed in poly VCI wrap, individually boxed, and consolidated onto heat-treated export pallets.
