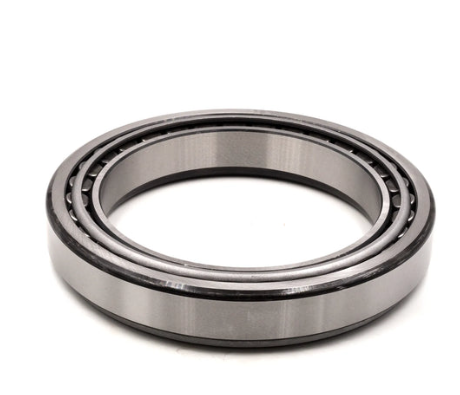

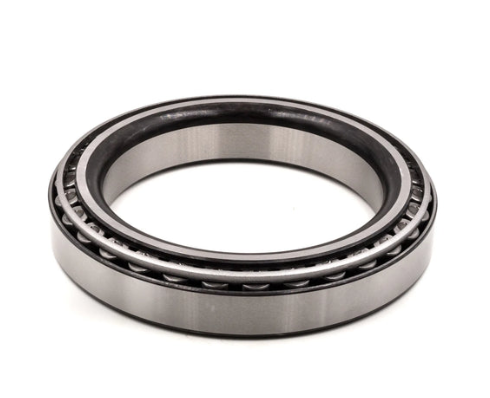

005.10.4063 High-Capacity Tapered Roller Bearing
- Extended 33 mm Width: Provides increased roller contact length to absorb severe axial and radial loads.
- Exceptional Shock Resistance: Case-hardened steel structure protects raceways against premature spalling.
- Precise Raceway Geometry: Super-finished surfaces ensure quiet, smooth rotation under torque.

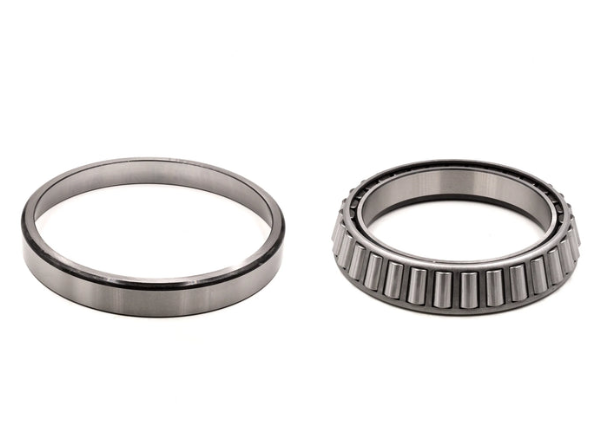

- Easy Mounting: Separable outer ring (cup) simplifies shaft installation and internal end-play setting.
Technical Data
| Technical Parameter | Metric Value |
| Inner Bore Diameter (d) | 140.00 mm |
| Outer Diameter (D) | 195.00 mm |
| Total Width (T) | 33.00 mm |
| Precision Standard | ISO P0 / ABEC-1 |
Product Specifications
| Specification | Details |
| Item Type | Extended-Width Tapered Roller Bearing |
| Model Number | 005.10.4063 |
| Bearing Design | Single Row Tapered |
| Material | High-Purity GCr15 Chrome Steel |
| Cage Material | Heavy-Duty Stamped Steel |
Product Introduction
The 005.10.4063 is a high-capacity metric tapered roller bearing engineered with an extended 33 mm overall assembly width. Measuring 140 x 195 x 33 mm, it features longer rolling elements compared to standard-width bearings of the same 140 mm bore, significantly boosting both radial and axial load capabilities. Manufactured from high-purity GCr15 bearing steel, it delivers long service life and high operational stability under heavy shock loads in industrial gear drive applications.
Applications
Heavy industrial gearboxes and drive shafts.
Mining equipment crushers and conveyor drives.
Construction equipment axles and reduction drives.
FAQ
Q: How does the 005.10.4063 differ from the 005.10.3676 model?
A: While both share a 140 mm bore and 195 mm outer diameter, the 005.10.4063 features a wider 33 mm width (vs 29 mm), delivering higher load ratings.
Q: Can this bearing withstand heavy axial thrust forces?
A: Yes, its single-row tapered design is specifically configured to absorb high thrust forces in one axial direction.
OEM & Custom Service
Custom manufacturing options including laser-engraved brand logos, tailored internal clearance levels, and customized bulk packaging.
Packing & Delivery
Thoroughly slushed in anti-rust oil, wrapped in VCI plastic bags, boxed individually, and packed in reinforced export wooden cases.
