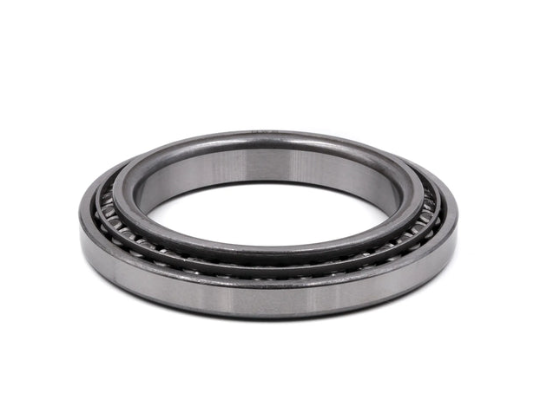

005.10.3166 Heavy-Duty Imperial Tapered Roller Bearing
- Low-Profile Wide-Bore Design: Fits 109.538 mm shaft journals while maintaining a slim 23.02 mm width profile.
- Crowned Rollers: Micro-engineered roller geometry ensures even stress distribution across raceways.

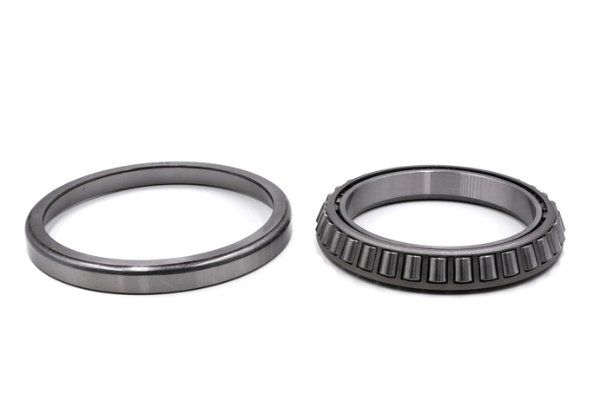

- Separable Cup & Cone: Facilitates easy assembly line installation and quick field inspections.
- Low Operating Friction: Super-finished raceway contact surfaces reduce drag and temperature buildup.
Technical Data
| Technical Parameter | Metric Value |
| Inner Bore Diameter (d) | 109.538 mm |
| Outer Diameter (D) | 158.750 mm |
| Total Width (T) | 23.020 mm |
| Precision Standard | ABEC-1 / P0 |
Product Specifications
| Specification | Details |
| Item Type | Large Imperial Tapered Roller Bearing |
| Model Number | 005.10.3166 |
| Bearing Design | Single Row Tapered |
| Material | Vacuum-Degassed GCr15 Chrome Steel |
| Cage Material | Stamped Steel |
Product Introduction
The 005.10.3166 is a specialized large-diameter inch-series tapered roller bearing engineered to withstand heavy combined radial and axial loads. Sized precisely at 109.538 x 158.75 x 23.02 mm, this robust cup and cone set offers smooth rotation and low maintenance in demanding drivetrain applications. Crafted from vacuum-degassed GCr15 bearing steel, it undergoes precision heat treatment for superior raceway toughness and wear resistance under continuous dynamic stress.
Applications
Heavy commercial vehicle axles and wheel hubs.
Industrial speed reducers and drive systems.
Agricultural equipment gear drives.
FAQ
Q: What is the main structural advantage of the 005.10.3166?
A: Its 109.538 mm bore and 23.02 mm width provide high load capacity within tight axial housing constraints.
Q: Is anti-rust protection applied prior to shipment?
A: Yes, each unit is thoroughly coated in slushing oil and wrapped in moisture-barrier VCI paper.
OEM & Custom Service
B2B OEM capabilities including client private label box design, custom part laser etching, and custom radial clearance configurations.
Packing & Delivery
Protected with anti-rust fluid, sealed in poly VCI barrier film, packed into individual cartons, and stacked securely on heat-treated export pallets.
