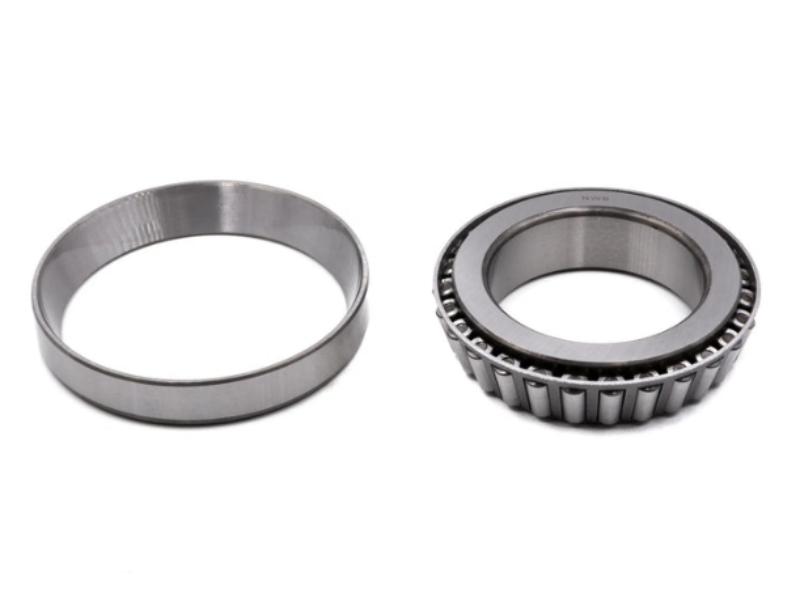

005.10.1380 Tapered Roller Bearing
- Thin Cross-Section: Large 95 mm bore with a slim 20 mm width profile optimizes machine envelope space.
- Low Frictional Torque: Super-finished raceways minimize running drag, saving operational power.
- High Rotational Stability: Crowned rollers distribute dynamic stress evenly along the raceway length.
- Easy Separation: Separate cup and cone construction simplifies machine assembly and field maintenance.
Technical Data
| Technical Parameter | Metric Value |
| Inner Bore Diameter (d) | 95.00 mm |
| Outer Diameter (D) | 135.00 mm |
| Total Width (T) | 20.00 mm |
| Precision Standard | ISO P0 / ABEC-1 |
Product Specifications
| Specification | Details |
| Item Type | Thin-Section Light Metric Tapered Roller Bearing |
| Model Number | 005.10.1380 |
| Bearing Design | Single Row Tapered |
| Material | Premium GCr15 High-Carbon Steel |
| Cage Material | Precision Stamped Steel |
Product Introduction
The 005.10.1380 is a thin-section light-series metric tapered roller bearing engineered for large-shaft equipment where housing space and weight savings are crucial. Sized at 95 x 135 x 20 mm, this bearing combines a large 95 mm inner bore with a low-profile 135 mm outer diameter and a narrow 20 mm width. Forged from high-cleanliness GCr15 bearing steel, it offers smooth, energy-efficient rotation and low frictional torque, enabling machinery builders to design compact, high-performance power transmission systems without sacrificing load endurance.
Applications
Industrial machinery drive shafts and rotary tables.
Agricultural equipment gear drives and cutter heads.
Large electric motor housings and reduction units.
FAQ
Q: Is the 005.10.1380 interchangeable with standard metric light series numbers?A: Yes, 005.10.1380 follows standard metric boundary dimensions (95x135x20mm), making it a direct drop-in replacement.
Q: What precision standards are applied to this model?A: It is manufactured to standard ISO P0 / ABEC-1 tolerances, with higher precision grades available upon custom order request.
OEM & Custom Service
Bespoke manufacturing services including customized laser etching of part numbers, custom internal clearance matching, and client-branded packaging options.
Packing & Delivery
Protected with industrial rust-inhibiting fluid, hermetically sealed in poly VCI wrap, boxed individually, and palletized securely for sea freight forwarding.
