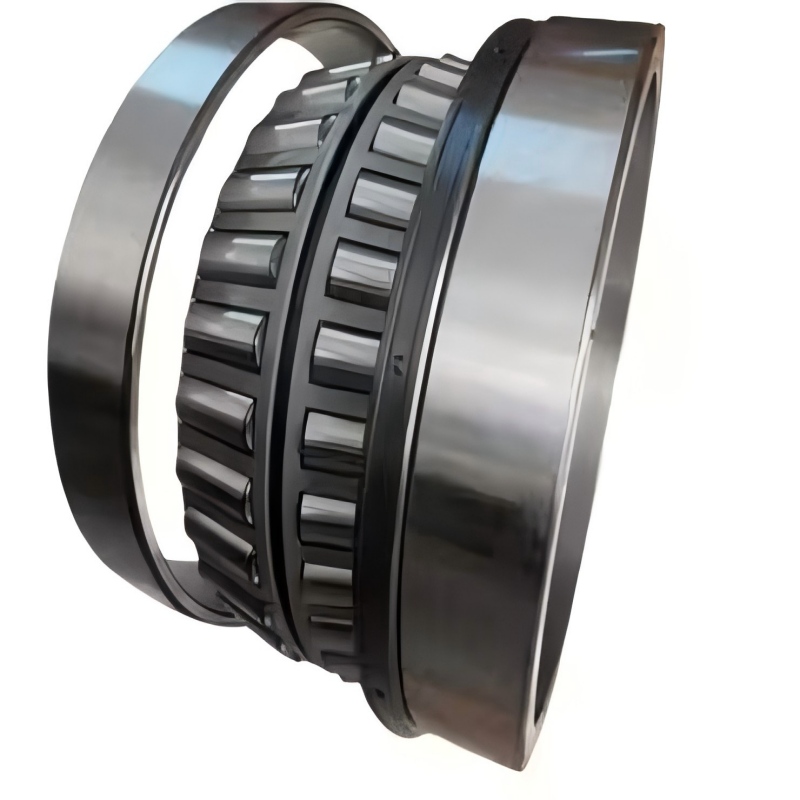

45244 Double Row Tapered Roller Bearing
45244 is a double row tapered roller bearing designed for heavy-duty applications requiring high radial load capacity and support for axial loads in both directions. Unlike a standard single-row tapered roller bearing, this design incorporates two rows of tapered rollers and an integrated inner ring assembly.
With a 220 mm bore diameter, 340 mm outside diameter and 90 mm overall width, the 45244 bearing is suitable for large industrial machinery, heavy-duty transmissions, gearboxes and other demanding rotating equipment. The integrated inner ring design provides a compact bearing arrangement and is suitable for applications where installation space and load support are important considerations.
Key Features
Double row tapered roller bearing design
Integrated inner ring construction
220 mm bore diameter
340 mm outside diameter
90 mm overall width
Designed for combined radial and axial loads
Suitable for heavy-duty industrial equipment
Available for OEM, wholesale and replacement applications
Technical Specifications
| Product Type | Double Row Tapered Roller Bearing |
|---|---|
| Bearing Designation | 45244 |
| Inner Ring | Integrated Inner Ring |
| Rows | Double Row |
| Bore Diameter (d) | 220 mm |
| Outside Diameter (D) | 340 mm |
| Overall Width (T) | 90 mm |
| Reference Weight | Approx. 28.5 kg |
Double Row Tapered Roller Bearing Design
The 45244 bearing uses two rows of tapered rollers to provide greater load support than a comparable single-row tapered roller bearing arrangement. Its integrated inner ring construction combines the inner-ring components into one assembly, which helps simplify bearing installation and provides a compact configuration for heavy-duty machinery.
Double row tapered roller bearings are commonly selected when equipment requires support for substantial radial loads together with axial loads. The actual load capacity, operating speed and service life depend on the complete bearing arrangement, operating conditions, lubrication, mounting accuracy and application requirements.
Applications
45244 double row tapered roller bearings can be used in a variety of heavy-duty industrial applications, including:
Heavy industrial gearboxes
Industrial transmissions
Large mechanical drive systems
Heavy machinery
Mining and material handling equipment
Steel and metal processing machinery
Large rotating equipment
Industrial replacement and maintenance applications
Advantages of the 45244 Bearing
The double-row configuration allows the 45244 to handle substantial loads within a single bearing position. Compared with using two separate single-row tapered roller bearings, an integrated double-row design can provide a more compact arrangement and simplify bearing selection and installation.
The integrated inner ring also makes the bearing convenient for applications where a complete inner-ring assembly is preferred. Before replacement, customers should always confirm the complete bearing designation and dimensional requirements of the original bearing.
Technical Selection Notes
When selecting a 45244 tapered roller bearing, customers should confirm the bore diameter, outside diameter, overall width, mounting arrangement, load direction, lubrication conditions and operating environment. For replacement projects, comparing the existing bearing designation and physical dimensions is recommended before ordering.
For applications with special load, speed or temperature requirements, DBS Bearing can review the application information and help confirm the appropriate bearing configuration.
Related Models
| Model | Type | Inner Ring | d | D | T |
|---|---|---|---|---|---|
| 45244 | Double Row Tapered Roller Bearing | Integrated | 220 mm | 340 mm | 90 mm |
For customers looking for related double row tapered roller bearings, DBS Bearing can provide additional models according to bore diameter, outside diameter, width and application requirements. Please provide the original bearing number or dimensions for confirmation.
Service & OEM Support
DBS Bearing provides bearing sourcing and OEM support for international customers, distributors and industrial users. For 45244 and other large tapered roller bearings, we can support bulk orders, OEM production, private label packaging, customized markings and replacement bearing requirements.
Customers can send the bearing number, dimensions, application information or photos of the existing bearing. Our team can check the required specification before quotation and production.
FAQ
What type of bearing is 45244?
45244 is a double row tapered roller bearing with an integrated inner ring design.
What are the dimensions of 45244?
The 45244 bearing has a 220 mm bore diameter, 340 mm outside diameter and 90 mm overall width.
Is the inner ring of 45244 integrated?
Yes. The 45244 configuration uses an integrated inner ring assembly rather than treating the inner rings as two separate individual components.
What is the weight of 45244?
The reference weight provided for 45244 is approximately 28.5 kg.
What are double row tapered roller bearings used for?
Double row tapered roller bearings are commonly used in heavy-duty applications where substantial radial loads and axial loads need to be supported within a compact bearing arrangement.
Can DBS supply 45244 for OEM applications?
Yes. DBS Bearing can support OEM, wholesale and replacement bearing requirements, including customized packaging and private label service.
Request a Quote
Contact DBS Bearing for 45244 double row tapered roller bearing pricing, availability and OEM supply. Please provide your required quantity and application information so we can confirm the appropriate specification.
