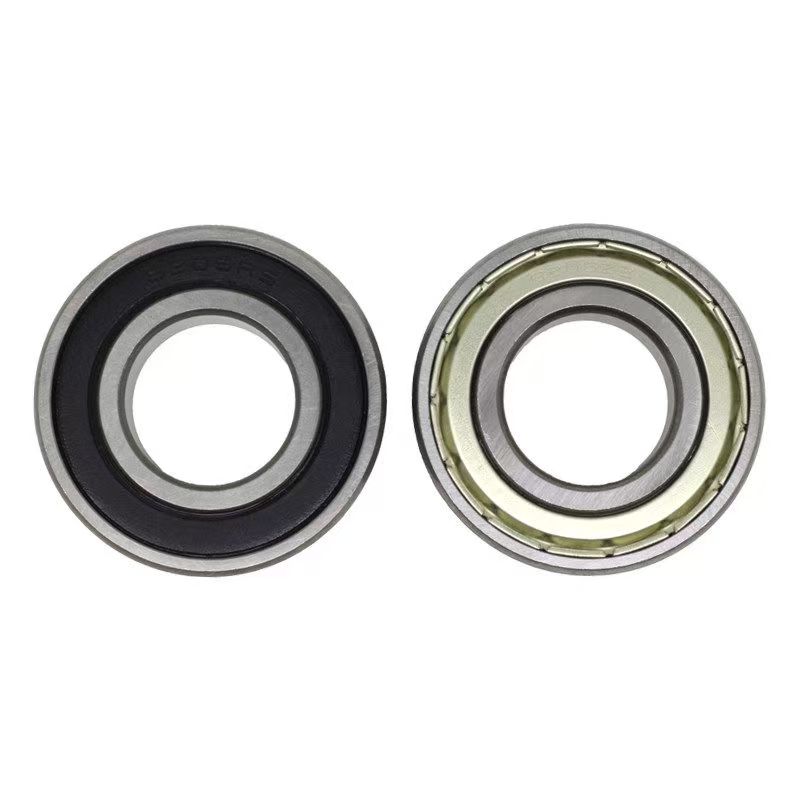

6309-2RS Deep Groove Ball Bearing
6309-2RS Deep Groove Ball Bearing
The 6309-2RS deep groove ball bearing is equipped with double rubber seals to provide additional protection against dust and general contamination. The bearing measures 45 × 100 × 25 mm and is suitable for many industrial rotating applications.
Key Features
Double rubber contact seals
45 × 100 × 25 mm dimensions
Helps retain lubricant
Provides improved contamination protection
Suitable for radial and moderate axial loads
Suitable for industrial motors, pumps and machinery
Technical Specifications
| Model | 6309-2RS |
|---|---|
| Type | Single Row Deep Groove Ball Bearing |
| Seal | Double Rubber Seal |
| Bore | 45 mm |
| Outside Diameter | 100 mm |
| Width | 25 mm |
| Reference Weight | Approx. 0.848 kg |
Applications
Suitable for industrial motors, pumps, fans, conveyors, agricultural machinery, gearboxes and other rotating equipment where sealed protection is preferred.
Related Models
| Model | d | D | B |
|---|---|---|---|
| 6307-2RS | 35 | 80 | 21 |
| 6308-2RS | 40 | 90 | 23 |
| 6309-2RS | 45 | 100 | 25 |
| 6310-2RS | 50 | 110 | 27 |
Service & OEM Support
DBS Bearing provides OEM production, private-label packaging, bulk supply and customized bearing services for 6309-2RS.
FAQ
What does 2RS mean on 6309?
2RS indicates double rubber seals on both sides.
What are the dimensions?
6309-2RS measures 45 × 100 × 25 mm.
Request a Quote
Contact DBS Bearing for 6309-2RS pricing and wholesale supply.
