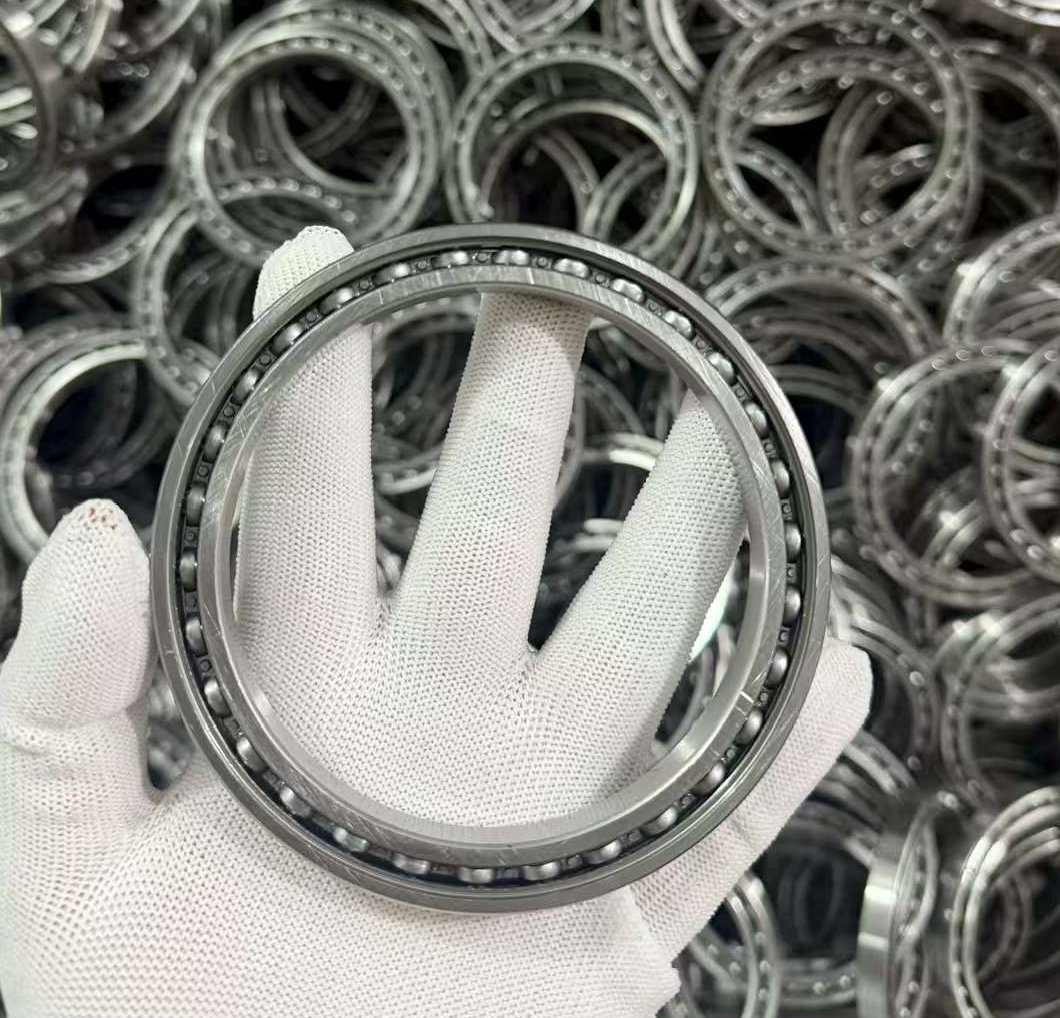

61816 Thin-Section Deep Groove Ball Bearing

Ultra-Compact Profile: Minimal 10mm cross-sectional width allows for significant weight reduction and space savings.
Low Operational Torque: Precision micro-raceways deliver smooth rotation with minimal friction losses.
High Rotational Accuracy: Manufactured to high precision standards to minimize radial and axial runout.
Multiple Shield Options: Available in open, rubber sealed (2RS), and metal shielded (ZZ) configurations.

Technical Data

Technical Parameter	Metric Value
Inner Bore Diameter (d)	80.00 mm
Outer Diameter (D)	100.00 mm
Total Width (B)	10.00 mm
Precision Standard	ABEC-1 / ABEC-3

Product Specifications

Specification	Details
Item Type	Thin-Section Deep Groove Ball Bearing
Model Number	61816 (6816)
Bearing Design	Single Row Deep Groove
Material	Premium GCr15 High-Carbon Steel
Cage Material	Steel or Synthetic Resin

Product Introduction

The 61816 (also categorized under the 6816 series) is a precision thin-section deep groove ball bearing designed for applications where space and weight savings are crucial. Measuring 80 x 100 x 10 mm, this bearing features an extremely small cross-section relative to its shaft diameter, enabling compact structural designs without sacrificing rotational accuracy. Manufactured in our high-precision production center, the 61816 utilizes vacuum-degassed GCr15 steel and ultra-smooth ground raceways. Our strict quality laboratory tests every batch for low torque, low noise (Z2V2/Z3V3), and high concentricity, providing our global B2B clients with an ideal component for high-precision, space-restricted mechanisms.

Applications

Industrial robotics arms and joint actuators.
Precision medical imaging equipment and optical rotary tables.
Aerospace instrumentation, encoders, and automation equipment.

Equivalent Models

6816
61816-2RS / 61816-ZZ

Cross Reference

SKF: 61816
FAG: 61816
NSK: 6816

FAQ

Q: What is the main difference between 61816 and 6816?
A: They are identical in dimensions (80x100x10mm); 61816 is the standard ISO designation, while 6816 is the equivalent designation used by many Japanese manufacturers.
Q: Can this bearing support heavy radial loads?
A: Thin-section bearings prioritize spatial efficiency and light-to-moderate loads. For extremely heavy radial loads, a standard 6016 or 6216 series should be considered.

OEM & Custom Service

We offer specialized B2B customization including stainless steel materials (AISI 440C), special low-torque synthetic greases, and custom clearance profiling.

Packing & Delivery

Cleaned and preserved in anti-rust oil, sealed in protective polymer sleeves, and packed in master corrugated boxes for international transport.
