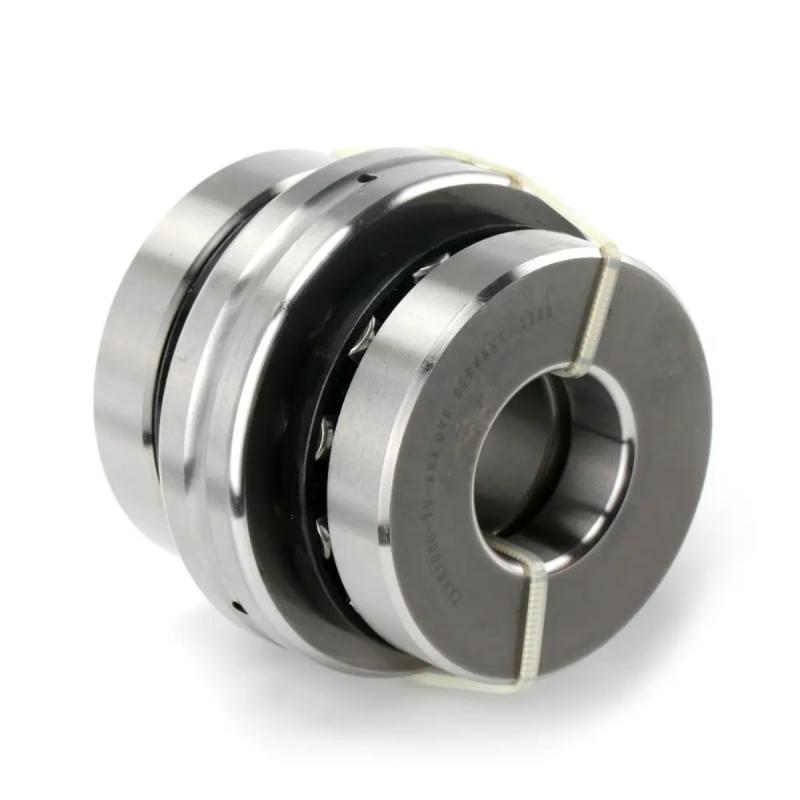

ZARF2575 TV High-Rigidity Combined Bearing
- Superior Thermal Stability: The TV cage withstands continuous high-speed operation without losing structural integrity or degrading grease.
- Massive Thrust Capacity: Thickened cylindrical thrust rollers easily handle the heavy feed forces generated during deep-cut machining.
- Vibration Damping: The heavy outer ring and polymer cage work in tandem to suppress chatter, improving the machined surface finish of the workpiece.
- Pre-Drilled Flange: Ready for immediate, rigid integration directly into machine castings.
Technical Data
| Technical Parameter | Metric Value |
| Inner Bore Diameter (d) | 25.00 mm |
| Outer Diameter (D) | 75.00 mm |
| Total Width (T) | 50.00 mm |
| Precision Standard | P4 Precision Grade |
Product Specifications
| Specification | Details |
| Item Type | Axial/Radial Combined Bearing |
| Model Number | ZARF2575 TV |
| Bearing Design | Needle Roller / Double Direction Thrust Roller |
| Material | Ultra-Purity Chromium Steel |
| Cage Material | Glass-Fiber Reinforced Polyamide (TV) |
Product Introduction
The ZARF2575 TV represents the pinnacle of precision engineering in ball screw support systems. Identical in critical dimensions (25 x 75 x 50 mm) to the TN variant, this bearing utilizes a TV-designated glass-fiber reinforced polymer cage, prized for its superior thermal stability and centrifugal force resistance. The combination of a thick-walled outer ring, high-precision radial needle rollers, and dual axial cylindrical roller thrust stages allows this bearing to absorb massive multi-directional shock loads without deflection. Through rigorous metallurgical control and sub-micron grinding techniques, the ZARF2575 TV provides global B2B clients with the ultimate solution for heavy-duty, high-accuracy rotational control.
Applications
Large-scale CNC gantry milling machines.
High-speed automation transfer lines.
Precision medical scanning equipment positioning systems.
FAQ
Q: Can this bearing handle high RPMs?
A: Yes, the combination of precision grinding and the TV polymer cage allows it to perform reliably at the high speeds typical of modern CNC rapid traverses.
Q: Do you offer bulk discounts for machinery manufacturers?
A: Absolutely. We have tiered wholesale pricing structures specifically designed for OEM manufacturers and large-scale industrial distributors.
OEM & Custom Service
Our dedicated B2B support team offers fully customized supply agreements, tailored relubrication intervals, private label marking, and flexible MOQs to match your production schedules.
Packing & Delivery
Individually preserved in VCI rust-inhibiting film, secured in heavy-duty single-unit boxes, and consolidated into reinforced wooden crates suitable for global maritime and air logistics.
