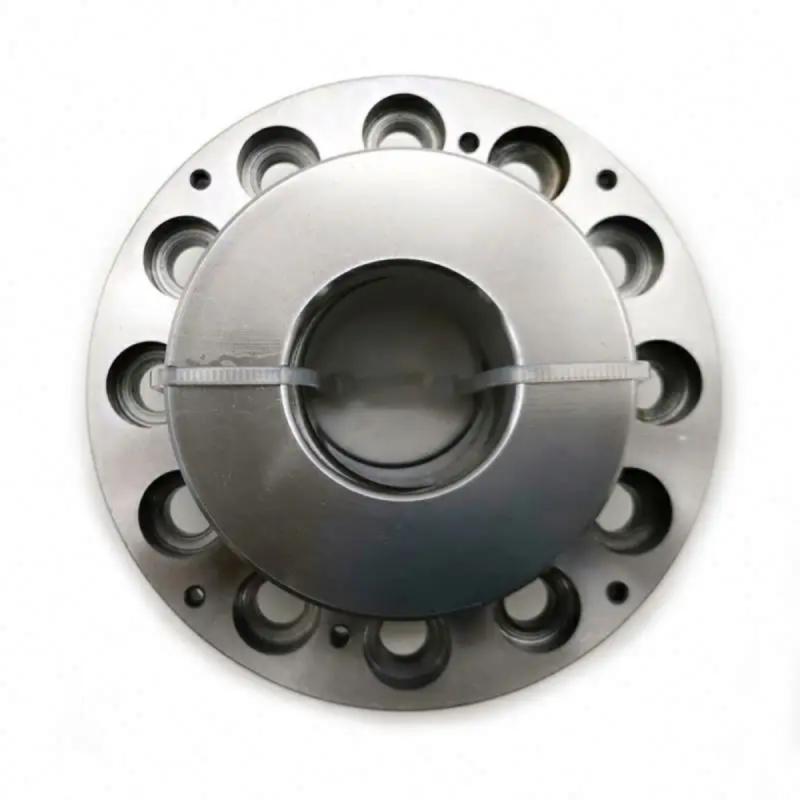

ZARF2068 L-TV-A Precision Combined Bearing

Zero-Backlash Operation: Highly preloaded assembly ensures strict axial rigidity and eliminates reversing backlash in CNC drives.
Heavy Duty Load Management: Optimized "A" design handles aggressive start-stop cycles and severe dynamic loads effortlessly.
Extended Washer Convenience: The 'L' type extended washer provides ample clamping space for precision locknuts without additional spacers.
Enterprise-Grade QA: Every unit undergoes microscopic laser inspection for runout, parallelism, and concentricity.

Technical Data

Technical Parameter	Metric Value
Inner Bore Diameter (d)	20.00 mm
Outer Diameter (D)	68.00 mm
Total Width (T)	60.00 mm
Precision Standard	P4 / Machine Tool Grade

Product Specifications

Specification	Details
Item Type	Axial/Radial Combined Bearing
Model Number	ZARF2068 L-TV-A
Bearing Design	Needle Roller / Axial Cylindrical Roller
Material	Premium Vacuum-Degassed Bearing Steel
Cage Material	Polyamide (TV)
Design Variation	Optimized Internal Geometry (A)

Product Introduction

The ZARF2068 L-TV-A is an advanced super-precision bearing designed to support multi-directional loads in high-end automation and machining centers. With dimensions of 20 x 68 x 60 mm, this bearing effectively merges radial needle rollers with bidirectional axial cylindrical rollers. The "A" suffix denotes an optimized internal geometry designed to maximize load capacity and extend fatigue life under heavy, continuous operation. Equipped with a stepped, extended inner washer (L) and a low-friction polymer cage (TV), the ZARF2068 L-TV-A is precisely calibrated to eliminate backlash and maintain absolute positional accuracy for critical ball screw assemblies across global B2B industrial sectors.

Applications

Multi-axis CNC milling and turning centers.
High-precision industrial robotic arm joints.
Heavy-duty ball screw and lead screw drives.

FAQ

Q: Does this bearing require a specific type of lubrication?
A: It is compatible with high-quality lithium complex greases designed for machine tools. We can pre-pack the bearing with specialized grease according to your RPM requirements.
Q: Can this replace standard angular contact thrust ball bearings?
A: Yes, ZARF bearings often replace multi-bearing angular contact sets, offering far higher rigidity and load capacity in a similar or smaller footprint.

OEM & Custom Service

We cater exclusively to B2B distributors and OEMs, offering tailored starting torque adjustments, specialized packaging for clean-room assembly, and bulk logistics optimization.

Packing & Delivery

Protected with specialized low-viscosity rust inhibitors, hermetically sealed in heavy-gauge polymer, and secured in custom-cut foam inserts within heavy-duty export master cartons.
