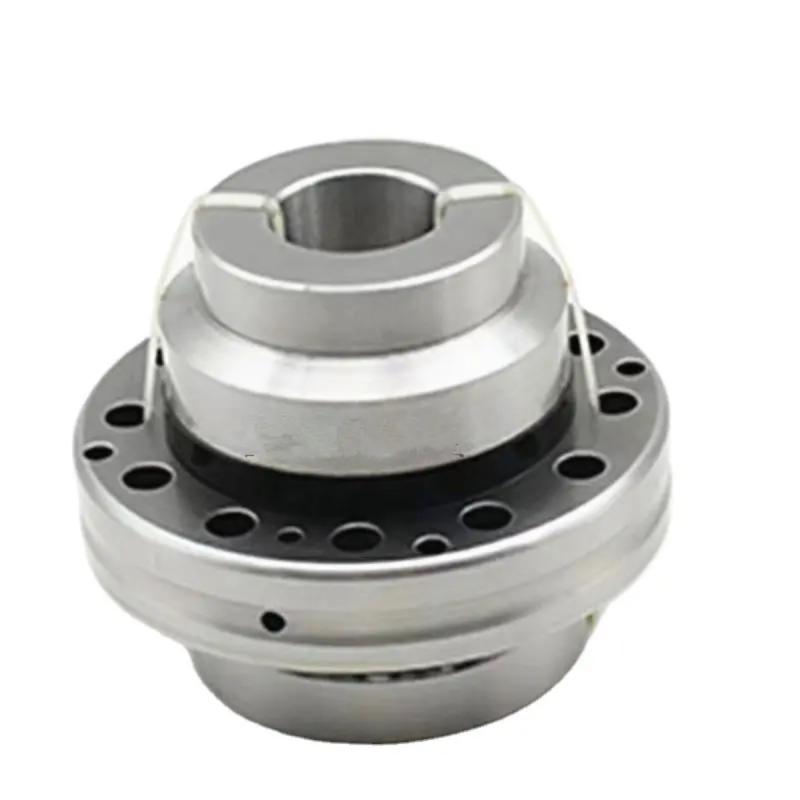

ZARF1762 L-TV Axial/Radial Combined Bearing
- Exceptional Rigidity: The combined double-direction axial and radial rolling elements deliver uncompromising stiffness against heavy machining forces.
- Precision Ball Screw Support: Extended shaft washer design facilitates easy mounting and perfect alignment for ball screw drives.
- Low Friction Polyamide Cage: The TV cage minimizes operating temperatures, reduces noise, and ensures excellent grease retention at high RPMs.
- Flange Mounting Capability: The outer ring features through-holes to allow direct, secure bolting to the machine housing.
Technical Data
| Technical Parameter | Metric Value |
| Inner Bore Diameter (d) | 17.00 mm |
| Outer Diameter (D) | 62.00 mm |
| Total Width (T) | 57.00 mm |
| Precision Standard | P4 / P5 (Super Precision) |
Product Specifications
| Specification | Details |
| Item Type | Axial/Radial Combined Bearing |
| Model Number | ZARF1762 L-TV |
| Bearing Design | Needle Roller / Axial Cylindrical Roller |
| Material | Ultra-Clean High-Carbon Bearing Steel |
| Cage Material | Polyamide (TV - Glass Fiber Reinforced) |
| Washer Type | Extended Shaft Washer (L) |
Product Introduction
The ZARF1762 L-TV is a premium, high-precision combined axial/radial bearing specifically engineered for the rigorous demands of machine tool engineering. Measuring 17 x 62 x 57 mm, this unit combines a radial needle roller bearing with a double-direction axial cylindrical roller bearing. The "L" designation indicates an extended (stepped) shaft washer, which provides an ideal mating surface for ball screw applications, while the "TV" suffix denotes a high-performance glass-fiber reinforced polyamide cage. Manufactured to stringent precision classes, the ZARF1762 L-TV guarantees maximum rigidity, ultra-precise shaft location, and exceptionally low friction, making it an indispensable component for global manufacturers of CNC machinery and precision linear actuators.
Applications
CNC machine tool precision ball screw supports.
High-speed linear actuators and automation guide systems.
Precision rotary tables and indexing heads.
FAQ
Q: What is the main benefit of the ZARF combined bearing design?
A: It manages both heavy radial forces and bidirectional axial forces within a single, highly compact unit, significantly saving space and simplifying machine design.
Q: Are mounting holes pre-drilled in the outer ring?
A: Yes, ZARF series bearings feature factory-machined mounting holes on the outer ring for direct installation into the adjacent machine structure.
OEM & Custom Service
We provide complete B2B supply chain solutions for automation equipment manufacturers, offering custom pre-lubrication with specialty CNC greases, laser-etched batch tracking, and vacuum-sealed packaging.
Packing & Delivery
Each bearing is ultrasonically cleaned, treated with high-grade rust preventatives, vacuum-sealed in protective foil bags, and packaged in impact-resistant branded boxes to ensure flawless condition upon delivery.
