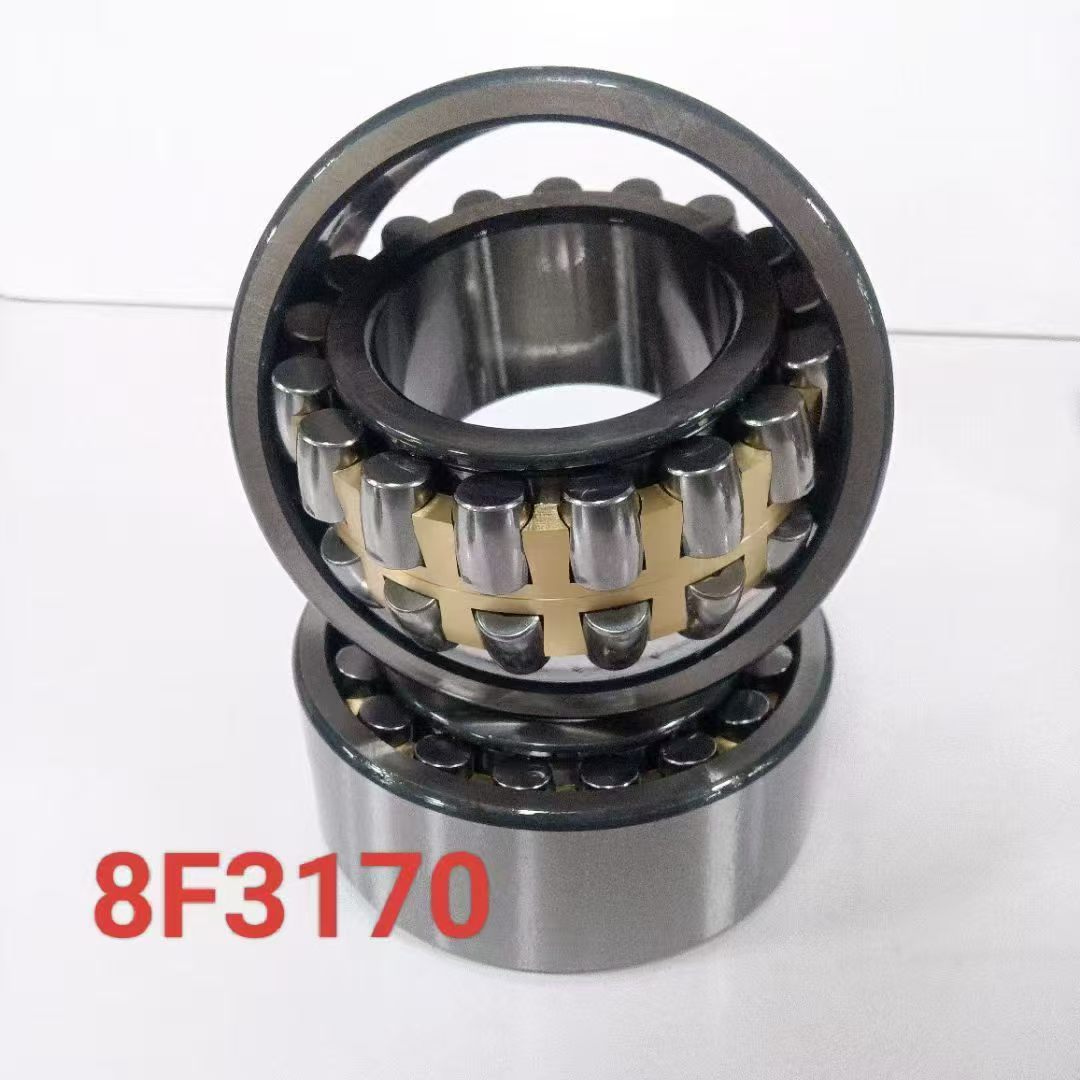

8F3170 Industrial Spherical Roller Bearing 65x120x46mm
- Self-Aligning Capability: Spherical outer raceway seamlessly compensates for dynamic shaft deflection and mounting misalignment.
- High Radial & Axial Load Rating: Double row barrel rollers provide large surface contact to carry heavy combined loads.
- Vibration Resistant Design: Reinforced cage and solid ring geometry resist structural fatigue in high-vibration applications.
- Thermal Stability: Heat-treated for dimensional retention across high operating temperature cycles.
Technical Data
| Technical Parameter | Metric Value |
| Inner Bore Diameter (d) | 65.00 mm |
| Outer Diameter (D) | 120.00 mm |
| Total Width (B) | 46.00 mm |
| Precision Standard | ISO P0 / ABEC-1 |
Product Specifications
| Specification | Details |
| Item Type | Spherical Roller Bearing (Self-Aligning) |
| Model Number | 8F3170 |
| Material | Top-Tier Vacuum-Degassed GCr15 Steel |
| Design Structure | Double Row Spherical Roller |
| Misalignment Capability | Up to 2° Angular Misalignment |
Product Introduction
The 8F3170 is a robust industrial spherical roller bearing engineered to perform under extreme shock loads, high radial forces, and conditions of angular shaft misalignment. Measuring 65 mm inner bore, 120 mm outer diameter, and 46 mm width, this double-row bearing features a spherical outer raceway that allows automatic self-alignment without increasing friction or internal stress. Crafted from vacuum-degassed GCr15 high-carbon chrome steel, the 8F3170 provides excellent structural fatigue resistance, making it an ideal replacement component for heavy industrial machinery, vibratory equipment, and mining drive systems.
Applications
Vibrating screens, stone crushers, and mining pulverizers.
Industrial conveyor drive rollers and paper mill equipment.
Heavy agricultural machinery, industrial fans, and gear units.
FAQ
Q: What is the benefit of the spherical design in the 8F3170?
A: It automatically corrects shaft bending or housing misalignment up to 1.5°–2° without localized edge loading on the rollers.
Q: Can this model be supplied with C3 internal clearance?
A: Yes, we offer standard C0 as well as C3 and C4 increased radial internal clearances for elevated temperature operations.
OEM & Custom Service
B2B services include private label laser engraving, custom radial clearance setting, customized box artwork, and batch material certification.
Packing & Delivery
Protected with anti-rust oil film, sealed in thick VCI protective plastic bags, boxed, and packed in export wooden crates or heavy master cartons.
