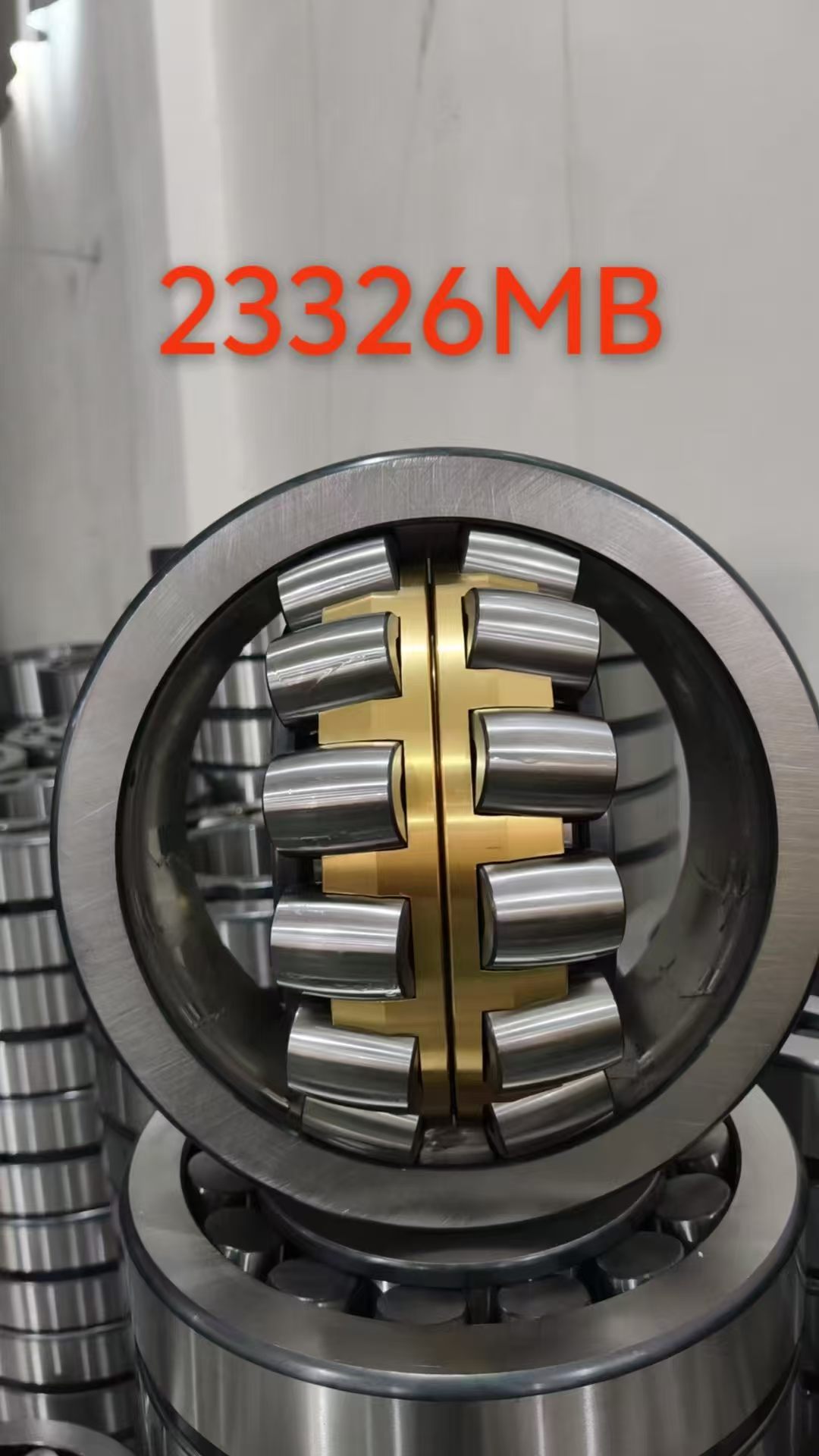

23326MB Heavy-Duty Spherical Roller Bearing

Self-Aligning Construction: Effortlessly handles up to 2 degrees of shaft angular misalignment without sacrificing load capacity.
Machined Brass Cage: Heavy-duty brass cage offers superior wear resistance and structural stability under high centrifugal forces and shock loads.
Heavy Radial & Axial Handling: Double-row roller geometry supports massive radial weight alongside bidirectional thrust forces.
Enterprise QA Standard: 100% inspected for rotational accuracy, acoustic levels, and dimensional integrity.

Technical Data

Technical Parameter	Metric Value
Inner Bore Diameter (d)	130.00 mm
Outer Diameter (D)	280.00 mm
Total Width (B)	112.00 mm
Precision Standard	ISO P0 / P6

Product Specifications

Specification	Details
Item Type	Spherical Roller Bearing
Model Number	23326MB
Bearing Design	Double Row Spherical (Self-Aligning)
Material	Premium GCr15 High-Carbon Chromium Steel
Cage Material	Precision Machined Brass (MB)

Product Introduction

The 23326MB is a heavy-duty, self-aligning spherical roller bearing designed to deliver robust load support in severe operating conditions. Measuring 130 x 280 x 112 mm, this bearing features a solid machined brass cage (MB designation) that provides exceptional guidance for the rolling elements, even under extreme vibration and shock loads. Manufactured in our advanced production facilities using high-purity GCr15 steel, the 23326MB automatically compensates for shaft misalignment and mounting deflections. Through rigorous quality control and micro-finished raceway geometry, we ensure maximum fatigue life and reliable power transmission for global heavy-industry B2B partners.

Applications

Heavy-duty mining machinery and vibratory crushers.
Paper mill processing gearboxes and calendar rolls.
Marine propulsion drives and steel mill rolling machinery.

Equivalent Models

23326 MB / W33
23326-M-C3

Cross Reference

SKF: 23326 CC/W33 / 23326 MA
FAG: 23326-M-C3
NSK: 23326CAM E4

FAQ

Q: What is the advantage of the "MB" machined brass cage?
A: Machined brass cages offer greater mechanical strength, lower friction, and higher temperature capability compared to standard stamped steel cages, making them ideal for heavy vibration.
Q: Does this bearing feature lubrication grooves?
A: Yes, standard production includes an annular lubrication groove with three lube holes on the outer ring for efficient re-greasing.

OEM & Custom Service

We provide comprehensive B2B manufacturing services, including custom internal clearance classes (C3/C4), specialized heat treatments for high-temperature operating environments, and custom laser etching.

Packing & Delivery

Coated in heavy-duty anti-rust oil, wrapped in moisture-barrier VCI paper, and packed in heavy-duty wooden export crates to guarantee safe, corrosion-free international transit.
