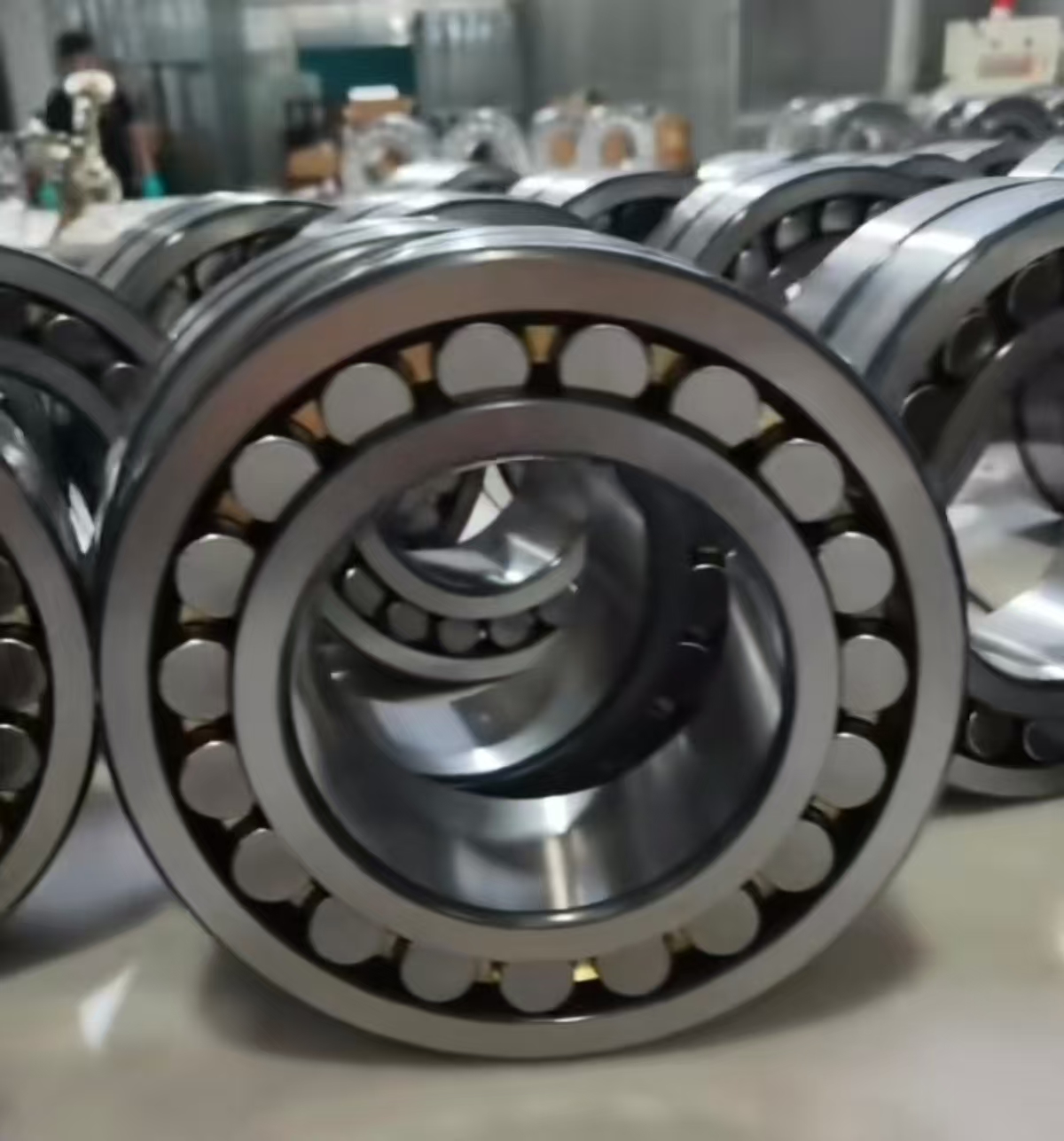

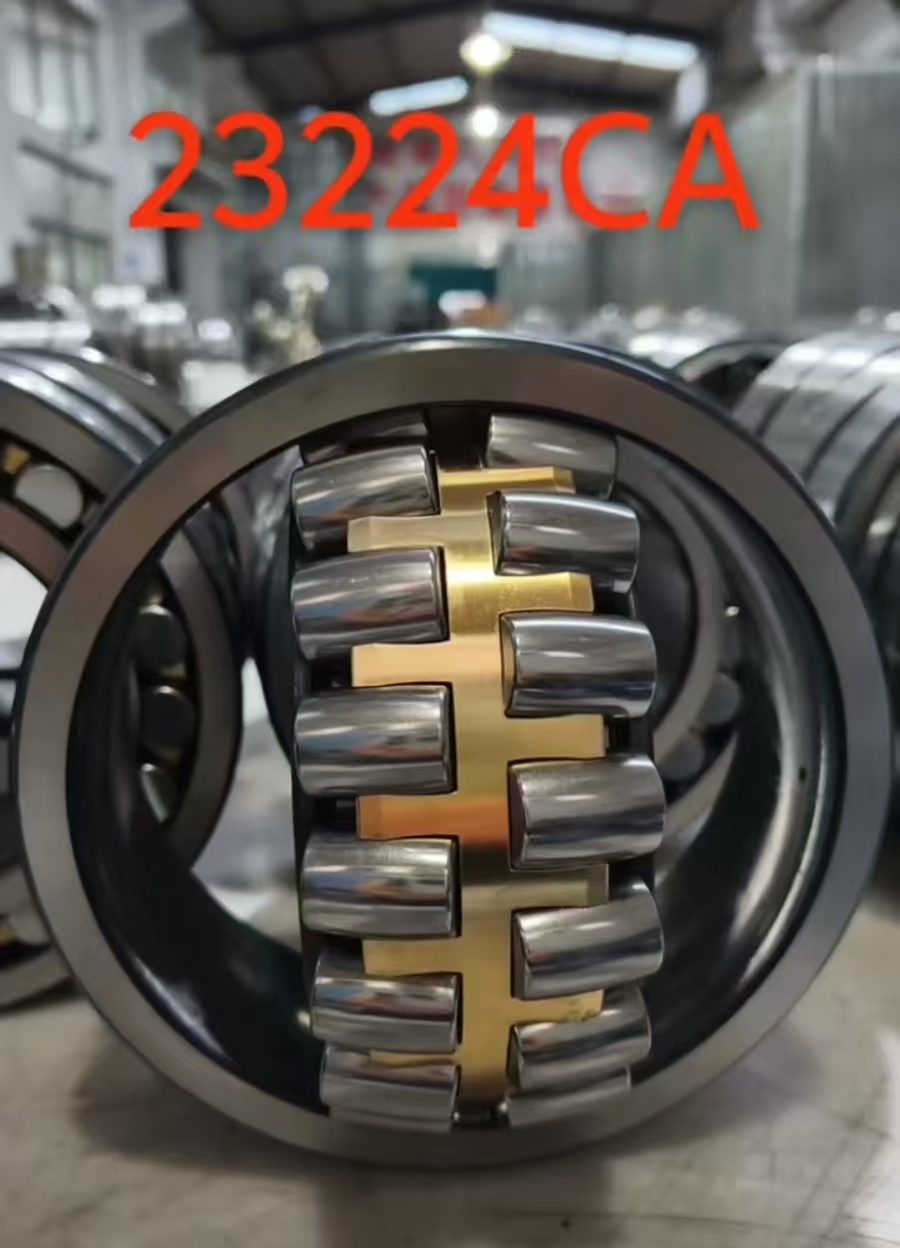

23224CA Spherical Roller Bearing
- Self-Aligning Performance: Spherical outer ring raceway automatically compensates for shaft flexing or housing misalignment up to 1.5°–2°
- Heavy-Duty Brass Cage: Machine-cut solid brass cage provides superior resistance to impact, high temperatures, and severe operational vibration.
- Extra-Wide Load Width: 76mm width houses large double-row rollers, offering extremely high dynamic radial and axial load capacity.
- Lubrication Enhancement: Standardized with an outer ring lubrication groove and three oil holes (W33 design) for easy maintenance.
Technical Data
| Technical Parameter | Metric Value |
| Inner Bore Diameter (d) | 120.00 mm |
| Outer Diameter (D) | 215.00 mm |
| Total Width (B) | 76.00 mm |
| Precision Standard | ISO P0 / P6 |
Product Specifications
| Specification | Details |
| Item Type | Spherical Roller Bearing (Self-Aligning) |
| Model Number | 23224CA (or 23224-CA-W33) |
| Bearing Design | Double Row Spherical Roller |
| Material | Top-Tier GCr15 High-Carbon Steel |
| Cage Design | One-Piece Machined Solid Brass Cage (CA Type) |
Product Introduction
The 23224CA is a heavy-duty, self-aligning spherical roller bearing engineered to withstand severe radial loads, high shock impacts, and angular shaft misalignment. Measuring 120 x 215 x 76 mm, this 232 series bearing features the robust "CA" design, incorporating a one-piece precision-machined brass cage, symmetrical barrel rollers, and integral guide flanges on the inner ring. Crafted from top-tier vacuum-degassed GCr15 steel, the 23224CA provides exceptional running accuracy, low thermal expansion, and long service life in harsh operating environments, making it a critical SKU for industrial machinery rebuilders and mining equipment suppliers.
Product Features
Applications
Vibrating screens, stone crushers, and mining pulverizers.
Paper mill machinery, heavy conveyors, and continuous casters.
Industrial gearboxes, marine drive systems, and heavy power generation turbines.
FAQ
Q: What does the "CA" suffix mean in 23224CA?
A: "CA" designates a heavy-duty design featuring a one-piece machined brass cage, symmetrical rollers, and retaining ribs on the inner ring for maximum shock load capacity.
Q: Can this bearing handle both radial and axial loads?
A: Yes, double-row spherical roller bearings handle high radial loads simultaneously with heavy bi-directional axial loads.
OEM & Custom Service
B2B services include custom radial clearances (C3/C4 for high vibration), laser etching, custom branded wooden crates, and full material test certificates (COA).
Packing & Delivery
Protected with specialized rust preventative oil, sealed in VCI moisture-barrier barrier bags, and bolted into individual heavy-duty export wooden boxes.
