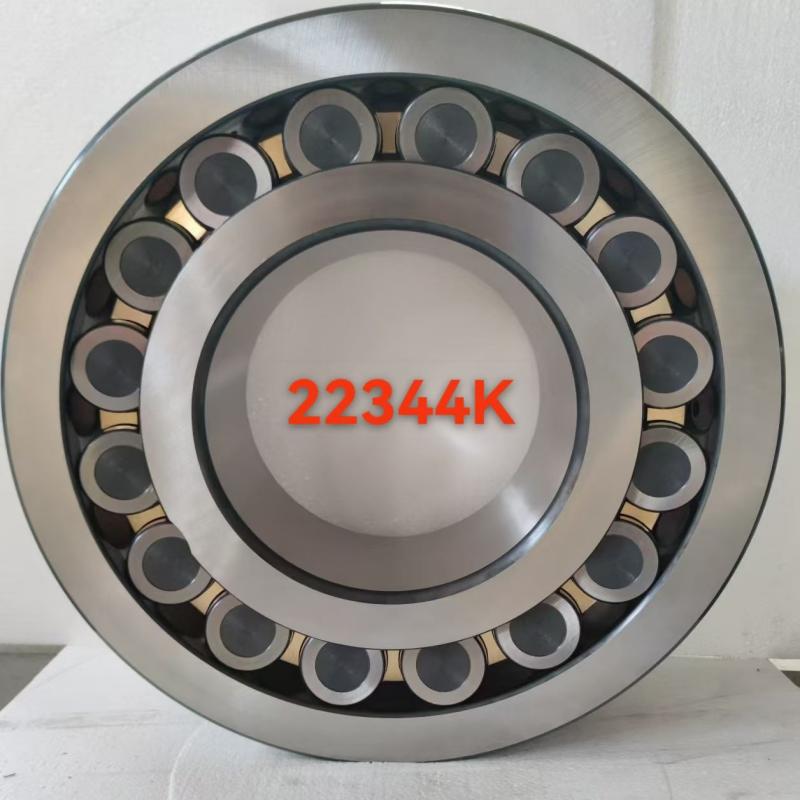

22344K Spherical Roller Bearing (220×460×145 mm)

Product Overview:Engineered to survive the harshest mechanical environments on earth, the 22344K is a massive spherical roller bearing measuring 220×460×145 mm. Its primary function is to support extreme radial loads while naturally compensating for severe shaft misalignment caused by heavy vibrations. The "K" suffix indicates a 1:12 tapered bore, allowing for secure mounting onto a shaft using an adapter sleeve. At DBS Bearings, we manually inspect the spherical raceways and roller sets of every 22344K, ensuring flawless self-aligning capabilities for rock crushers, vibrating screens, and heavy rolling mills.

• OEM & Customization Services:We act as a complete assembly and kitting partner. We can supply the 22344K packaged alongside its corresponding withdrawal or adapter sleeves, lock nuts, and washers, delivered in a customized heavy-duty wooden crate bearing your corporate logo.

• FAQ:

• Q: How much shaft misalignment can this bearing handle?A: Spherical roller bearings can typically accommodate initial misalignments of up to 2 degrees without generating edge stresses.

• Q: What is the purpose of the W33 groove?A: The W33 groove allows fresh grease or oil to be pumped directly into the center of the bearing, pushing out old lubricant and debris efficiently.

• Q: Do you offer clearance verification reports for these large bearings?A: Yes, every large-scale bearing is individually measured, and we can provide the radial internal clearance data upon request.
