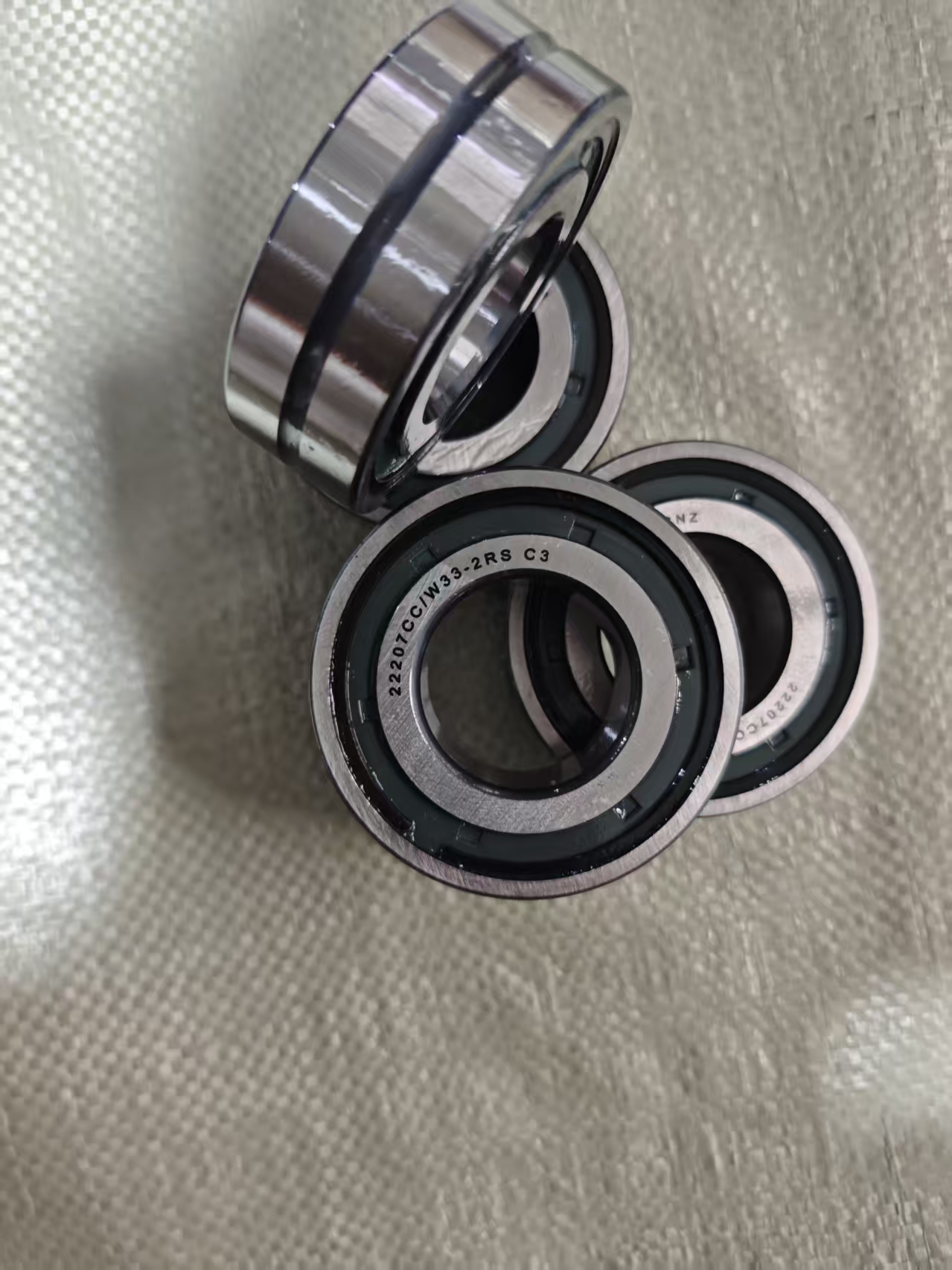

22207CC/W33-2RS Spherical Roller Bearing
22207CC/W33-2RS Spherical Roller Bearing
Product Overview
22207CC/W33-2RS is a sealed spherical roller bearing with a 35 mm bore, 72 mm outside diameter and 23 mm overall width. The spherical roller bearing design is suitable for applications involving radial loads, axial loads and shaft misalignment.
The 2RS designation indicates a sealed configuration, while W33 commonly refers to a lubrication groove and holes in the outer ring. The exact construction should be confirmed against the manufacturer's technical specification.
DBS Bearing supplies this model for industrial replacement, maintenance and OEM bearing requirements.
Key Features
Spherical roller bearing construction.
35 mm bore and 72 mm outside diameter.
23 mm overall bearing width.
2RS sealed bearing configuration.
Self-aligning design suitable for shaft misalignment.
Reference weight of approximately 0.5 kg.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 22207CC/W33-2RS |
| Bearing Type | Spherical Roller Bearing |
| Inner Diameter | 35 mm |
| Outer Diameter | 72 mm |
| Overall Width | 23 mm |
| Seal Configuration | 2RS |
| Reference Weight | 0.5 kg |
| Supply Options | Replacement / OEM / Private Label |
Applications
22207CC/W33-2RS can be considered for industrial machinery, material handling equipment, mechanical transmission systems and rotating equipment where spherical roller bearings are specified.
The self-aligning bearing design is useful in applications where shaft deflection or mounting misalignment may occur.
Bearing Design
Spherical roller bearings feature two rows of rollers operating on a common spherical outer raceway. This design allows the bearing to accommodate angular misalignment while supporting radial loads and axial loads in both directions.
The sealed configuration helps protect the internal rolling elements from contamination. Lubrication arrangements and operating limits should be confirmed for the specific bearing version.
Related Models
| Model | Bearing Configuration |
|---|---|
| 22207CC/W33-2RS | Sealed spherical roller bearing |
| 22207 | Basic series reference |
| 22207CC/W33 | Related series designation |
Related series designations may have different seals, lubrication arrangements or internal specifications. They should not be treated as direct replacements without confirmation.
Service & OEM Support
DBS Bearing provides industrial bearing sourcing, OEM supply, customized marking, private-label packaging and export packing.
Customers can provide original model numbers, technical drawings and operating requirements for bearing matching.
FAQ
Is 22207CC/W33-2RS a tapered roller bearing?
No. The 22207 series is classified as a spherical roller bearing series.
What are the dimensions of 22207CC/W33-2RS?
The supplied dimensions are 35 × 72 × 23 mm.
What does 2RS mean?
2RS generally indicates seals on both sides of the bearing.
Can this bearing accommodate misalignment?
Yes. Spherical roller bearings are designed to accommodate angular misalignment within their specified operating limits.
Can DBS Bearing supply OEM packaging?
Yes. Customized marking and private-label packaging are available.
