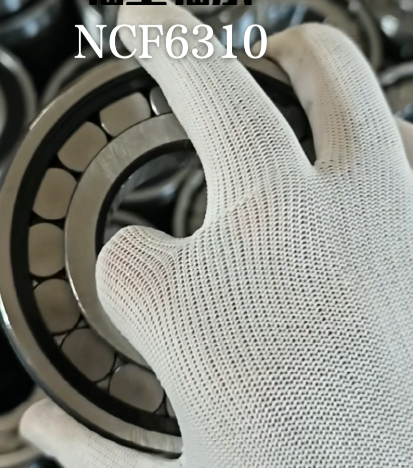

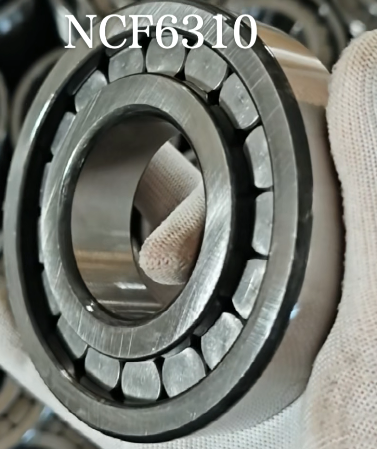

NCF6310/310 Full Complement Cylindrical Roller Bearing
- Maximum Radial Capacity: Cageless design maximizes the number of rollers to achieve the highest possible radial load rating.
- Unidirectional Axial Support: Integrated retaining flanges allow the bearing to locate the shaft axially in one direction.
- Extreme Shock Tolerance: Thick-section rollers absorb sudden impact loads without structural deformation.
- Precision Raceway Finish: Advanced grinding reduces operating friction and extends grease service life.
Technical Data
| Technical Parameter | Metric Value |
| Inner Bore Diameter (d) | 50.00 mm |
| Outer Diameter (D) | 110.00 mm |
| Total Width (B) | 27.00 mm |
| Precision Standard | ISO P0 / P6 |
Product Specifications
| Specification | Details |
| Item Type | Full Complement Cylindrical Roller Bearing |
| Model Number | NCF6310 / NCF6310/310 |
| Bearing Design | Single Row Full Complement (Cageless) |
| Material | High-Purity GCr15 Bearing Steel |
| Flange Configuration | Single-Direction Axial Location (NCF Design) |
Product Introduction
The NCF6310/310 is a full complement single-row cylindrical roller bearing engineered for applications requiring maximum radial load capacity within a given dimensional boundary. Featuring exact dimensions of 50 x 110 x 27 mm, this bearing incorporates the maximum possible number of rollers because it operates without a cage. Produced within our advanced industrial manufacturing facility, the NCF6310/310 features an integral retaining flange on the inner and outer rings that allows it to support axial displacement in one direction alongside massive radial weight. Through micro-finished raceway geometry and rigorous metallurgical testing, we deliver a component capable of handling extreme shock loads and continuous duty in heavy industrial gearboxes.
Applications
Heavy industrial gearboxes and planetary speed reducers.
Hydraulic winches, crane drives, and cable sheaves.
Construction equipment transmission assemblies.
Equivalent Models
NCF 6310
NCF6310V
Cross Reference
SKF: NCF 6310 V
FAG: NCF6310-V
INA: NCF6310
FAQ
Q: What is the main difference between NCF bearings and standard cylindrical roller bearings with cages?
A: NCF full complement bearings omit the cage to fit more rollers, providing significantly higher load capacity at moderate operating speeds compared to caged versions.
Q: Can NCF bearings allow axial displacement of the shaft?
A: NCF designs can locate the shaft axially in one direction, but allow thermal expansion/displacement in the opposite direction.
OEM & Custom Service
We offer specialized B2B customization including custom internal clearance options (C3/C4), specialized surface treatments, and private label bulk manufacturing.
Packing & Delivery
Thoroughly preserved in anti-rust oil, wrapped in sealed VCI film, packed in master corrugated cartons, and securely palletized for international logistics handling.
