Pillow Block Bearing vs Flange Bearing: What's the Difference?

https://www.dbsbearing.com/product/Pillow-Block-Ball-Bearing/

Mounted bearing units are widely used in industrial machinery to provide reliable shaft support and simplify installation. Among the most common options are pillow block bearings and flange bearings.

Although both perform similar functions, they differ in mounting style, applications, and installation requirements. Understanding these differences will help buyers choose the right bearing unit for their equipment.

What Is a Pillow Block Bearing?

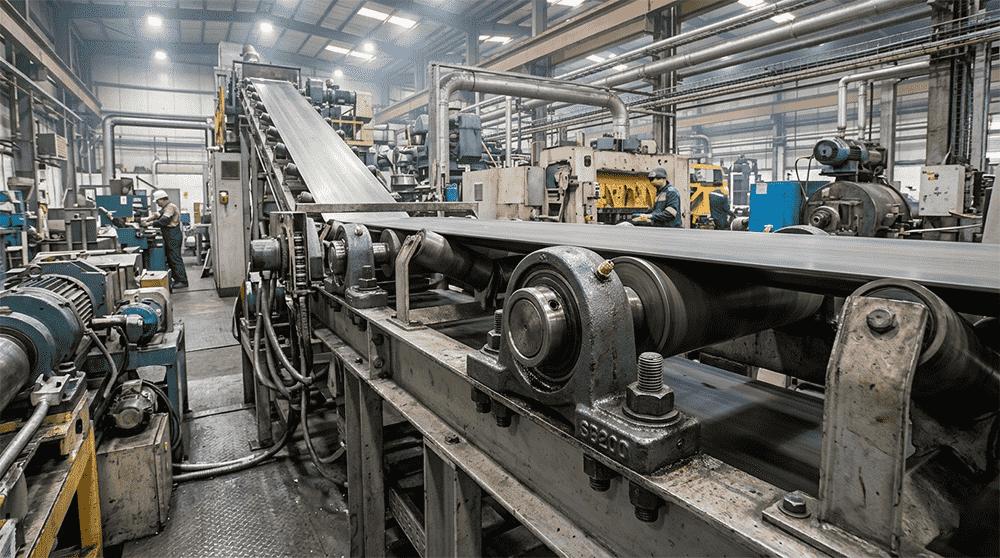

A pillow block bearing consists of an insert bearing mounted inside a pedestal housing that is bolted to a horizontal surface.

It is one of the most widely used mounted bearing units because it is easy to install, maintain, and replace.

Typical applications include:

• Conveyor systems

• Agricultural machinery

• Packaging equipment

• Fans and blowers

• Textile machinery

What Is a Flange Bearing?

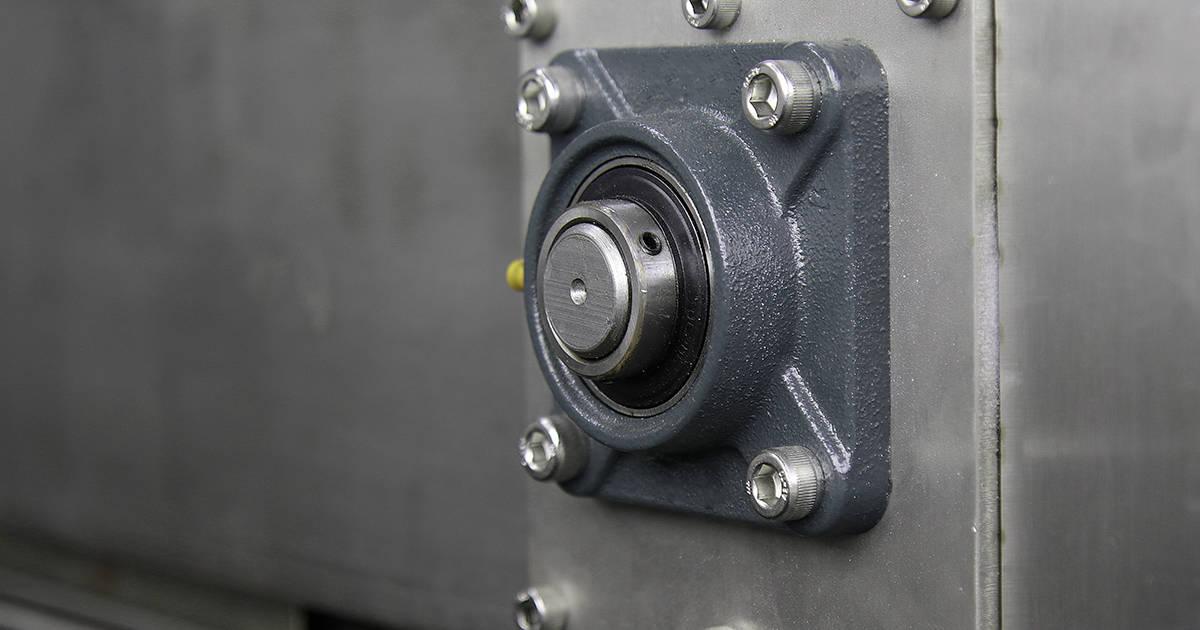

A flange bearing also uses an insert bearing, but the housing is designed with a flange for mounting directly onto a vertical machine surface.

Common flange bearing styles include:

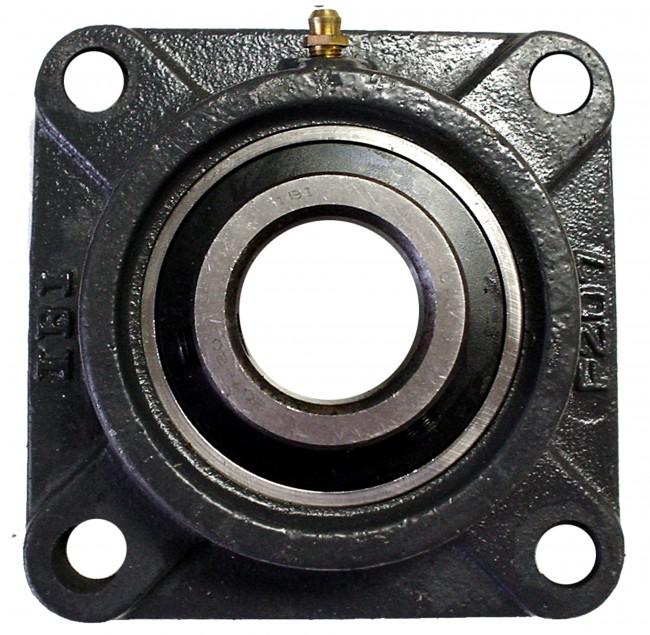

• UCF (Four-Bolt Flange Units)

• UCFL (Two-Bolt Flange Units)

• UCFC (Round Flange Units)

These bearing units are ideal when the shaft passes through a wall, panel, or machine frame.

https://www.dbsbearing.com/product/Pillow-Block-Ball-Bearing/

Key Differences

Mounting Position

https://www.dbsbearing.com/product/Pillow-Block-Ball-Bearing/

Pillow Block Bearings

• Mounted on horizontal surfaces

• Support shafts from underneath

Flange Bearings

• Mounted on vertical surfaces

• Support shafts through machine walls or side panels

Installation

Pillow block bearings are generally quicker to install for standard conveyor and machinery applications.

Flange bearings are preferred when equipment design requires side mounting.

Typical Applications

Choose pillow block bearings for:

• Belt conveyors

• Agricultural equipment

• Industrial machinery

• Material handling systems

Choose flange bearings for:

• Food processing equipment

• Packaging machines

• Printing machinery

• Compact industrial equipment

Which Bearing Should You Choose?

The right choice depends on:

• Machine structure

• Shaft position

• Mounting surface

• Available installation space

• Load requirements

Selecting the correct bearing unit improves equipment reliability and reduces maintenance costs.
